SF-C1019USB-D6.0-SV-PRO-L200
SINCEREFIRST
This is medical 720P side-view 6mm diameter compact OV9734 CMOS USB endoscope camera module. It is equipped with OV9734 CMOS color image sensor from OmniVision. It supports dual resolution outputs of 720p@30fps and VGA@45fps. With 1MP pixels and a 1/9-inch sensor size and 1.4μm pixel units, it ensures high-definition imaging quality. Its core advantage lies in the synergy of the 1.08mm ultra-short focal length and the side-view imaging design - the ultra-short focal length enables precise focusing within a range of 10 to 100mm, combined with an F4.0 aperture and a 95° DFOV, allowing for wide-angle images with low distortion (<-10%) in narrow spaces; the side-view imaging structure achieves non-axisal observation through a 6mm diameter lens, making it particularly suitable for lateral inspection scenarios such as pipes and cavities. The module integrates 4 LED light array panels, uses a USB2.0 interface and is compatible with UVC protocol. It ensures precise assembly through SMT process and AA manufacturing, and the separate design further expands the application flexibility in complex environments such as medical and industrial settings. |  |
Ultra-Short-Focus Side-View Imaging System: The combination of 1.08mm focal length and side-view structure overcomes the industry challenge of lateral observation in narrow spaces. The focusing range of 10-100mm takes into account both macro inspection and micro detail capture.
Small-Size High-Performance Optical Design: A 6mm diameter lens with an F4.0 aperture achieves a 95° wide-angle coverage on a 1/9-inch sensor, with distortion controlled to less than -10% to ensure image accuracy.
Dual-Mode Intelligent Adaptation: Dual output modes of 720p@30fps and VGA@45fps meet the differentiated needs for image quality and fluency in medical and industrial scenarios.
Enhanced Environmental Adaptability: 4 integrated LED arrays provide uniform supplementary lighting, and the SMT + AA manufacturing process ensures stable operation in harsh environments such as vibration and high temperature.
Plug-and-Play Expandability: USB2.0 + UVC protocol enables driver-free compatibility, and the detachable design supports quick integration into various equipment systems.
1. Dental Root Canal Treatment: 1.08mm focal length + side-view structure for precise positioning and locating concealed root canals, 6mm diameter lens compatible with standard oral mirrors.
2. Precision Mechanical Maintenance: Side-view diagram design for inspecting the side walls of the gearbox/engine internals for wear, 10mm near-focal distance for capturing crack details.
3. Insect Behavior Research: Separated design suitable for micro observation chamber, F4.0 aperture for balancing depth of field and light intake.

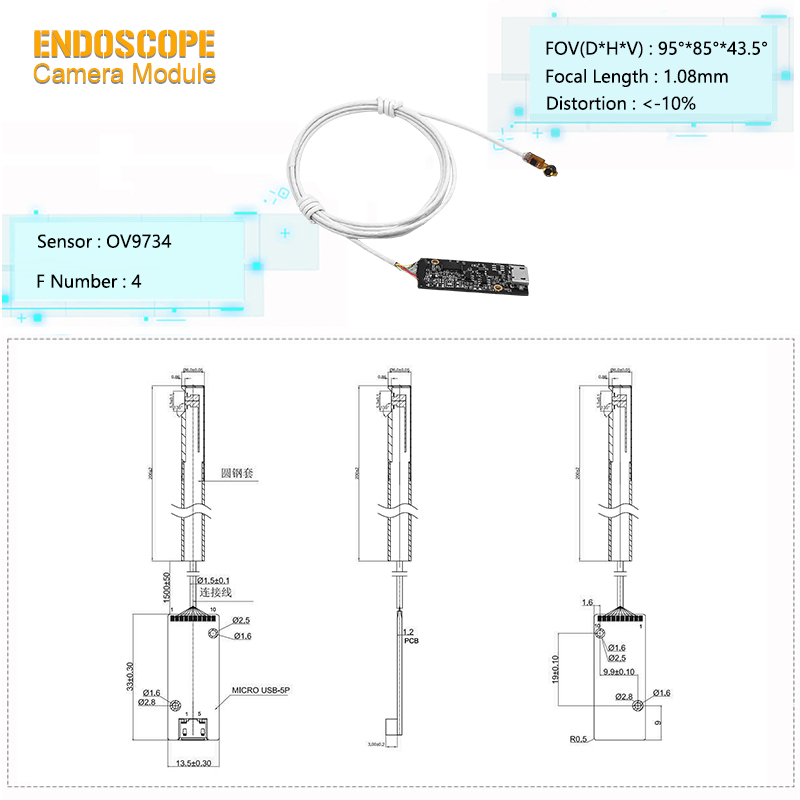

Product Name | ENDOSCOPE Camera Module |
Image Sensor | OV9734 |
FOV（D*H*V） | 95°*85°*43.5° |
Focusing Range | 10-100mm |
Focal Length | 1.08mm |
F Number | 4.0 |
Product Type | Endoscope Camera Module |
Led | 0402 Led |
TV Distortion | <-10% |
Feature | Side-View Endoscope Camera Module |
