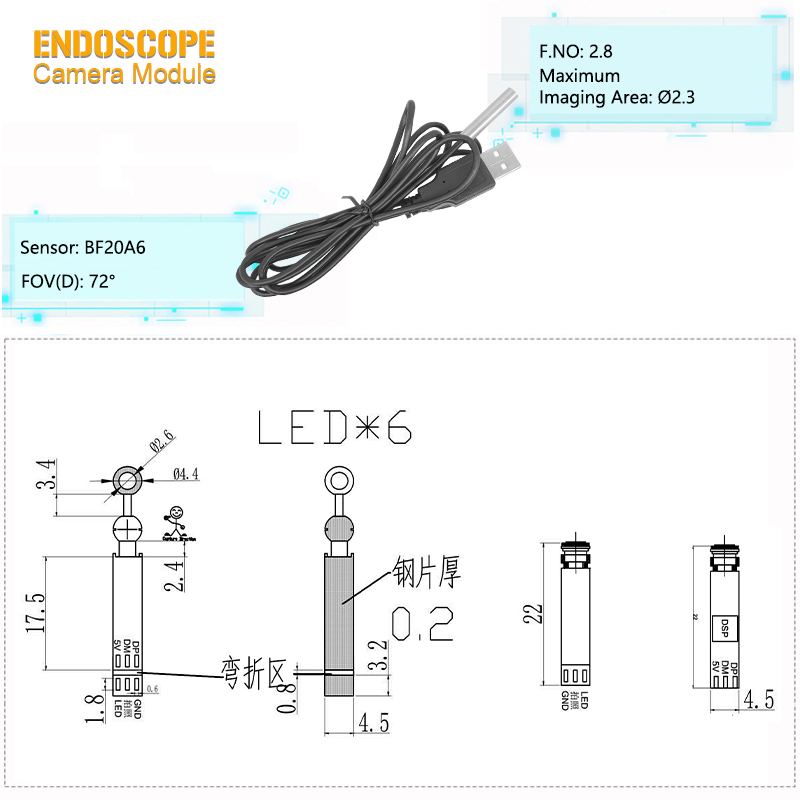

This endoscopic imaging device incorporates the BF20A6 processing Sensor, featuring an optimized optical system with F2.8 aperture specification and 72° observational coverage. The design balances environmental adaptability and operational efficiency through enhanced luminous efficiency within constrained spaces. Utilizing standardized USB connectivity ensures stable power delivery and reliable signal transmission, while its integrated mechanical architecture maintains professional-grade durability. The fixed-focus mechanism provides consistent imaging performance despite the absence of VCM stabilization technology. |  |
Product Advantage ◢
Enhanced Dim-Light Capture: Combines 1/5" optical sensor with wide-aperture optics to amplify low-light sensitivity, delivering recognizable imaging in suboptimal conditions (underground conduits, mechanical cavities).
Expansive Visual Coverage: 72° wide-angle perspective minimizes operational blind zones while maintaining <3% peripheral distortion. This technical configuration reduces positional adjustments during inspections and preserves spatial accuracy for diagnostic assessments.
Application of Endoscope Camera Module
1.Precision mechanical diagnosis: Facilitates micro-space exploration within industrial equipment assemblies, enabling real-time HD visualization for rapid malfunction identification.
2.Pipeline network analysis: Streamlined profile design navigates complex tubular structures, effectively detecting sediment accumulation or structural compromise.
3.Automotive system evaluation: Implements non-invasive inspection technology for enclosed vehicular components (powertrain systems, fuel pathways), optimizing maintenance workflows.
Technical Parameters ◢
Product Name | All-in-one Endoscope Camera Module |
Lens Size | 1/5 inch |
DSP | USB2.0 |
Sensor | GC2755 |
Pixel size | 20-80mm |
Image region | 1920µm x 1080µm |
lens | Hd lens/prime focus |
Operating temperature | -20～70℃ |
Storage temperature | 0～50℃ |
FOV（D） | 80° |
Company Profile:
Guangzhou Sincere Information Technology Ltd., which was founded in 1992, is a manufacturer specialized in research, design and manufacture of camera module products. The headquater lies in Guang Dong China, totally 33, 350 squaremeter. The Company has strong capabilities in R&D and manufacturing. With great reputation among its customers worldwide. We support OEM and ODM services.
Advantages:
1.High-quality products: We offer high-quality camera modules that meet our customers' needs. Our products undergo strict quality inspections to ensure they are durable, efficient and reliable.
2. Quality Assurance: We provide customers with high-quality camera modules. By maintaining strict quality standards, we gain a competitive edge and win the trust of our customers.
3. Competitive Prices: We offer competitive prices that are both affordable and fair, making our products suitable for a wide range of customers.
4. Excellent customer Service: Our well-trained team of professionals is dedicated to providing outstanding customer service. We actively respond to customers' demands and take their feedback seriously.
FAQ
1.How to prevent frequent cable breakage?
Choose the anti-bending cable with a metal braided layer to avoid sharp corner bending. After use, wrap it in a coil with a diameter of ≥10cm for storage. In industrial scenarios, a protective spring tube can be installed.
2.What are the differences between medical and industrial endoscope modules?
Medical modules emphasize biocompatibility, sterilization and high image quality, and must comply with FDA/CE certification. Industrial modules focus on durability (such as corrosion resistance), wide-temperature operation (-20°C to 70°C), and special light sources (such as UV).
3.Why is low-light performance important for endoscope modules?
When the ambient light inside the body or in the pipeline is insufficient, the module needs to be equipped with a high-sensitivity sensor and a large-aperture lens, and be combined with noise reduction algorithms to ensure the clarity of the dark field. Some products adopt infrared supplementary lighting or HDR technology to enhance low-light performance.
