In industrial pipeline inspections, automotive maintenance, and equipment servicing, one often overlooked but crucial parameter is probe diameter. When inspection channels narrow from above 5mm to below 5mm, most standard endoscope modules cannot fit, leaving tasks in a “see but cannot reach” dilemma. Ironically, these ultra-narrow spaces—such as air-conditioning ducts, fuel injector channels, or mold cooling holes—often hide defects that critically affect equipment performance.
To address this challenge, the 4.5mm ultra-thin analog AV endoscope module, based on the BF3A03 sensor, provides a professional-grade solution for inspecting tight spaces. This article analyzes its technical specifications, application scenario fit, and selection framework, helping industrial inspection device integrators, automotive maintenance providers, and cost-conscious developers evaluate its suitability. Core keywords such as inspection camera borescope, HD endoscope camera, borescope endoscope camera, sensor camera module, deep view mini endoscope camera, module camera USB are also included to highlight product relevance.
The module measures 4.5mm × 17.5mm, allowing it to access sub-5mm thin-walled pipes, microholes, and narrow gaps—areas off-limits for conventional probes. Compared with traditional industrial endoscopes above 8mm, the 4.5mm design expands inspection capability into new dimensions.
Automotive Maintenance: Engine cylinder gaps, fuel injector channels, and AC ducts often have inspection ports around 5mm. As a professional inspection camera borescope, this module allows technicians to view internal conditions without engine disassembly.
Industrial Mold Inspection: Cooling holes of 3–5mm diameter are often blind spots. The 4.5mm probe penetrates these spaces to detect blockages, corrosion, or machining defects.
Unlike USB digital endoscopes, this module uses analog AV direct output, requiring no decoding or drivers. Simply connect to a display for real-time imaging. As a deep view mini endoscope camera, it trades minimal physical size for maximum reach.
With a standard analog AV interface, the module outputs video directly to a display—no drivers or decoding needed.
Engineering advantages:
Industrial operators can perform inspections without a laptop or software setup; a single AV cable connects to a portable monitor for instant use.
In automotive workshops or other high-frequency scenarios, plug-and-play simplicity greatly increases efficiency.
Compared with digital module camera USB solutions, analog AV offers lower latency and higher anti-interference performance over long distances, especially in high-EMI environments.
Powered by DC 5V at 100mA, it can run from portable or vehicle power sources without complex setups.

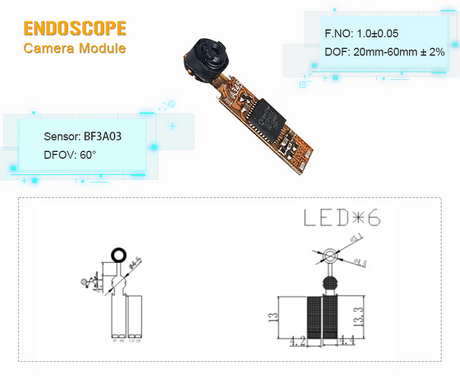

The module features the BF3A03 1/6.5-inch CMOS sensor with 640×480 (VGA) resolution at 20fps. Its F1.0 ultra-large aperture is a key optical advantage, enabling significant light capture in a 4.5mm probe.
In completely dark pipes or cavities, the large aperture allows usable images even without LED illumination.
A 20–60mm fixed focus range ensures stable, clear imaging within typical working distances.
Optical performance metrics—TV distortion <1%, chromatic aberration <20%, 13-level grayscale—ensure clear edges and depth, meeting industrial defect inspection requirements.
As a professional sensor camera module, it balances optical performance, low cost, and high reliability.
The module has passed 1.5m drop, three-axis vibration, -20℃ to 70℃ storage, and thermal-humidity cycle tests, with an operational range of -10℃ to 50℃.
Automotive workshops involve frequent tool drops and vibrations.
Outdoor industrial inspections face wide temperature variations.
This robust design ensures long-term stable operation in challenging environments, directly extending the service life of a HD endoscope camera.
Scenario: Thin-walled pipes, microchannels, hydraulic lines under 5mm diameter.
Fit: 4.5mm diameter reaches spaces conventional probes cannot; F1.0 aperture ensures clear imaging in total darkness; 20–60mm fixed focus covers typical inspection distances.
Selection Points: Material reflectivity, probe length vs. bend radius, need for additional LED lighting.
Scenario: Internal inspection of molds, gearboxes, valves, and small cavities.
Fit: Analog AV allows quick on-site assessment; high reliability handles vibration and contamination; VGA resolution suffices for defect identification.
Selection Points: Workflow integration, oil resistance, display compatibility.
Scenario: Engine gaps, fuel injectors, AC ducts, wiring channels.
Fit: 4.5mm probe accesses tight spaces; vibration resistance maintains stable imaging; analog output connects directly to in-vehicle displays.
Selection Points: Probe rigidity vs. space, vehicle power compatibility, operational ease.
Scenario: Entry-level industrial endoscopes and portable inspection tools.
Fit: Simple AV architecture, cost-effective, easy maintenance; VGA resolution meets basic inspection needs; industrial-grade reliability ensures longevity.
Selection Points: Integration with housing, production consistency, user-friendliness.
Space Verification: Measure the minimum channel diameter and confirm the 4.5mm probe can pass. For bends, evaluate probe dimensions vs. bend radius.
Imaging Requirement Evaluation: Determine if ultra-high resolution is needed. VGA is sufficient for blockage localization and surface defect detection; use HD endoscope cameras for finer details.
Working Distance Testing: Verify image clarity within 20–60mm fixed focus range.
Display Compatibility: Test AV signal synchronization and image quality on target monitors; check PAL/NTSC video standards for integration with monitoring systems.
Lighting Evaluation: Assess ambient light conditions. For completely dark environments, determine if external LED or self-illuminated versions are needed.
Environmental Adaptation: Confirm -10℃ to 50℃ operation range suffices; check protection against oil or coolant.
Mechanical Reliability: Test image stability under vibration; verify connector durability under repeated use.
With over 30 years of optical imaging experience, SincereFirst collaborates with Fortune 500 companies and exports to over 200 countries. The company operates Class 10/100 COB cleanrooms and uses advanced active alignment (AA) manufacturing to ensure optical consistency in every sensor camera module.
For industrial inspection integrators and automotive service providers, SincereFirst offers complete technical documentation and customization—cable length, interface type, and lighting can be tailored. All products have FCC, CE, RoHS certifications for global market compliance.

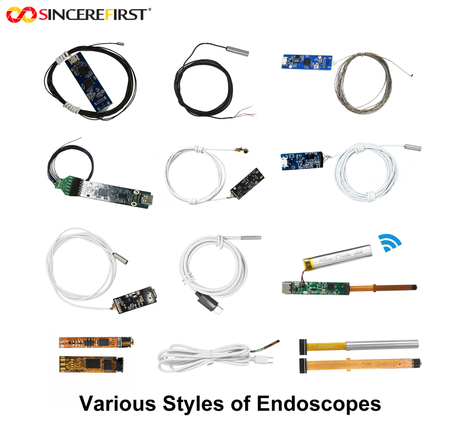

SincereFirst provides analog AV endoscope modules as well as USB interface modules (module camera USB series), covering diverse application needs. The goal: a trusted visual system partner enabling inspections that see clearly, probe deeply, and go further.
The value of the 4.5mm ultra-thin analog AV endoscope module lies not in extreme specs, but in a deep understanding of tight-space inspection scenarios.
4.5mm diameter breaks physical limits.
Analog AV output simplifies system architecture.
F1.0 aperture ensures low-light imaging.
Industrial-grade reliability adapts to harsh conditions.
This combination provides a cost-effective, reliable, and durable inspection camera borescope solution for ultra-thin pipeline inspection, industrial maintenance, and automotive narrow-space diagnostics.
Successful selection stems from clearly answering questions like: How narrow is the space? How harsh is the environment? How simple is operation? How tight is the budget? When these answers align with technical specifications, selection becomes a proactive, professional system design practice rather than a passive parameter comparison.1. Introduction: When Probe Diameter Becomes the Critical Factor
