SF-C1019USB-D3.9-PRO
SINCEREFIRST

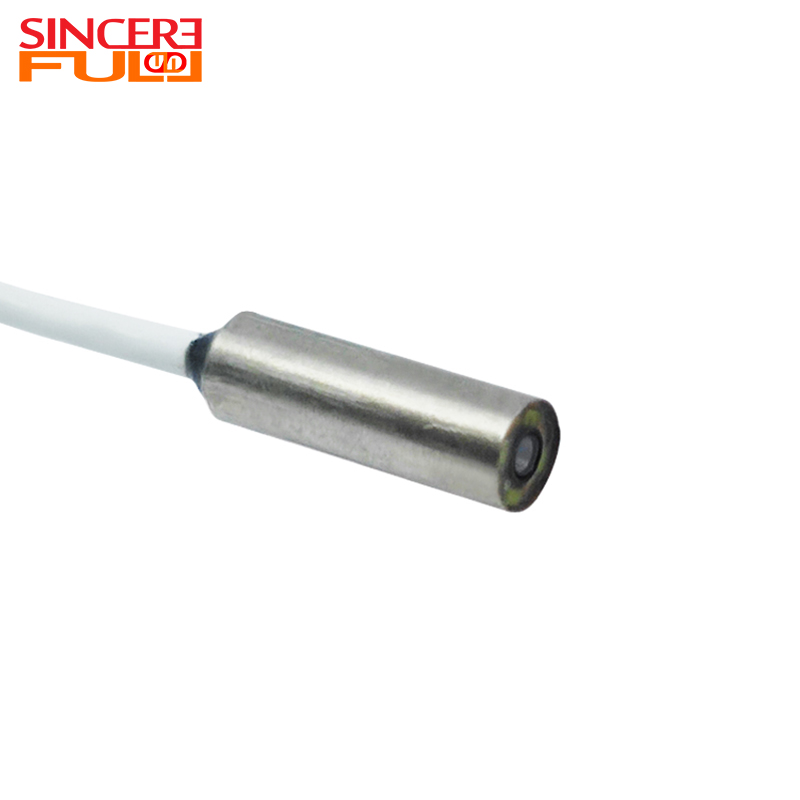

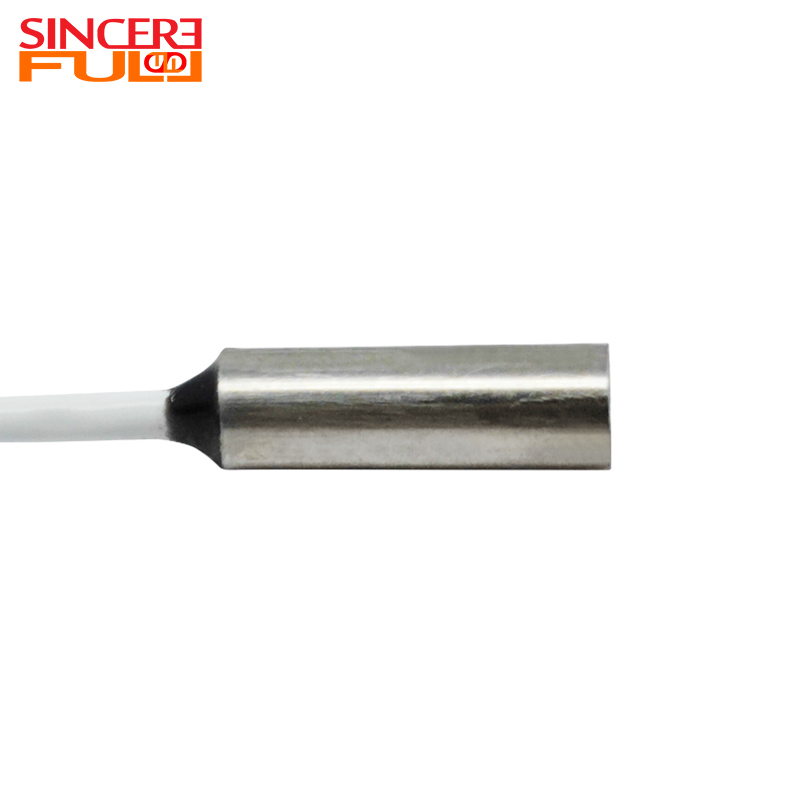

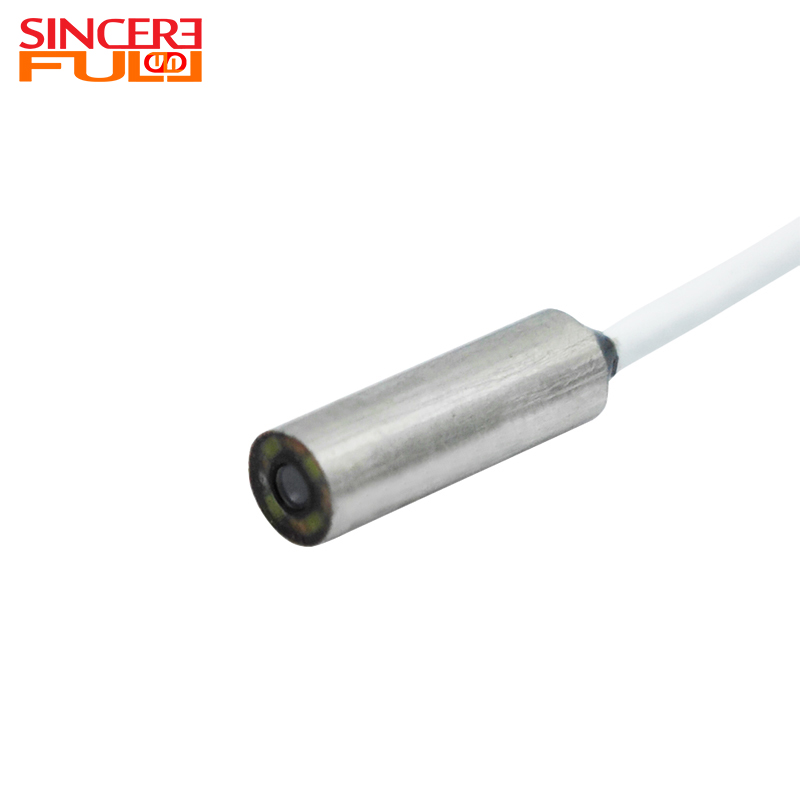

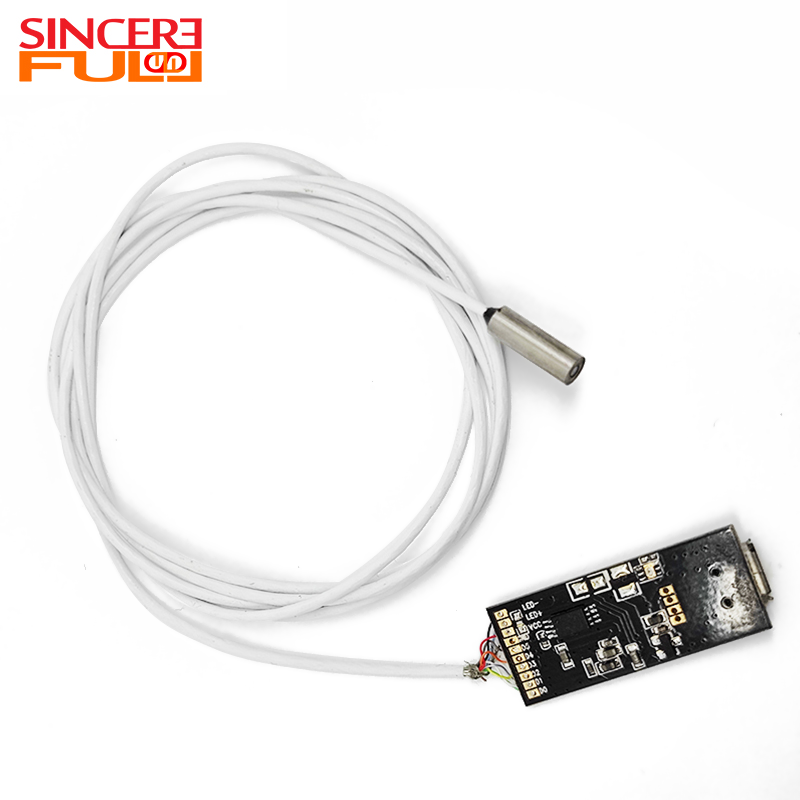

| The OV9734 CMOS Sensor 3.9mm Diameter USB Interface Endoscope Camera Module features a slim, waterproof steel probe with 0402 Led for clear imaging in tight pipes and cavities. Its 10–100mm macro focus, 1.08mm focal length, and F4.0 aperture deliver sharp, detailed close-range imaging, while the 95°×85°×43.5° viewing angle minimizes blind spots. The module uses a Micro USB 5P interface with standard UVC plug-and-play support, eliminating driver installation and ensuring rapid deployment across multiple systems. A 1.5-meter cable enhances operational flexibility, and RoHS-compliant construction provides durable, reliable performance for industrial inspection, mechanical maintenance, and precision quality control in confined spaces. |  |
1.3.9mm Micro Structure: Balances strength and passability, suitable for detection of most medium and fine pipes.
2.10–100mm Close-Range Optimization: Dedicated close-range focusing, maximizing close-range imaging sharpness and detail restoration.
3.Multi-Axis Field of View: 95°×85°×43.5° combination, balancing horizontal and depth observation, reducing detection blind spots.
4.UVC Driver-Free Deployment: Equipped with standard protocol, no driver development required, improving multi-system adaptation and deployment efficiency.
Product Name | 3.9mm Borescope Camera Module |
Image Sensor | OV9734 |
Pixel | 1MP |

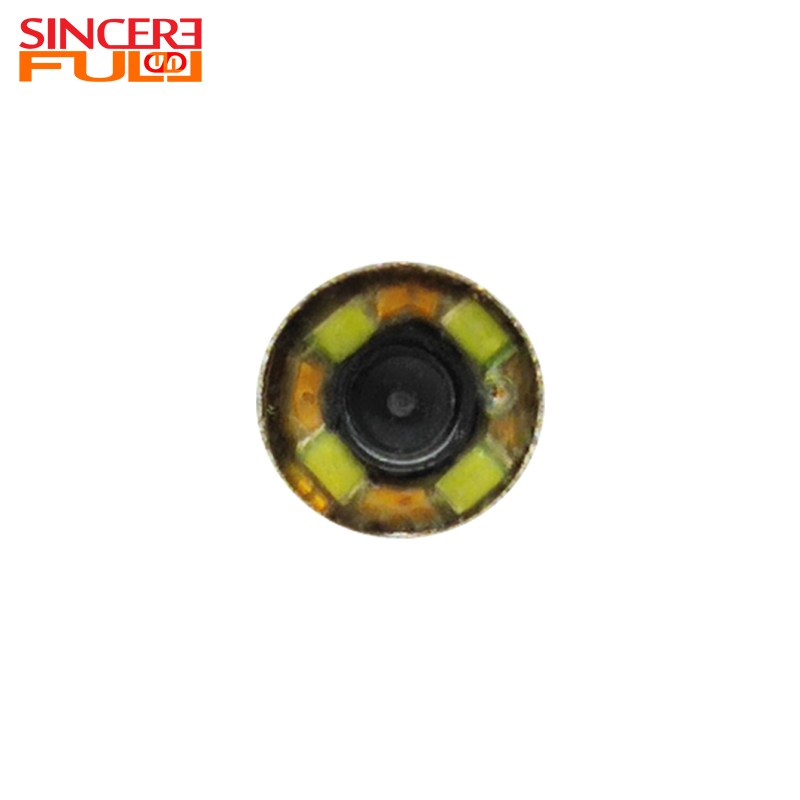

Led | 0402 Led |
DSP | USB2.0 UVC |
Format | YUV&MJPG |
Resolution | 720p Max 30fps |

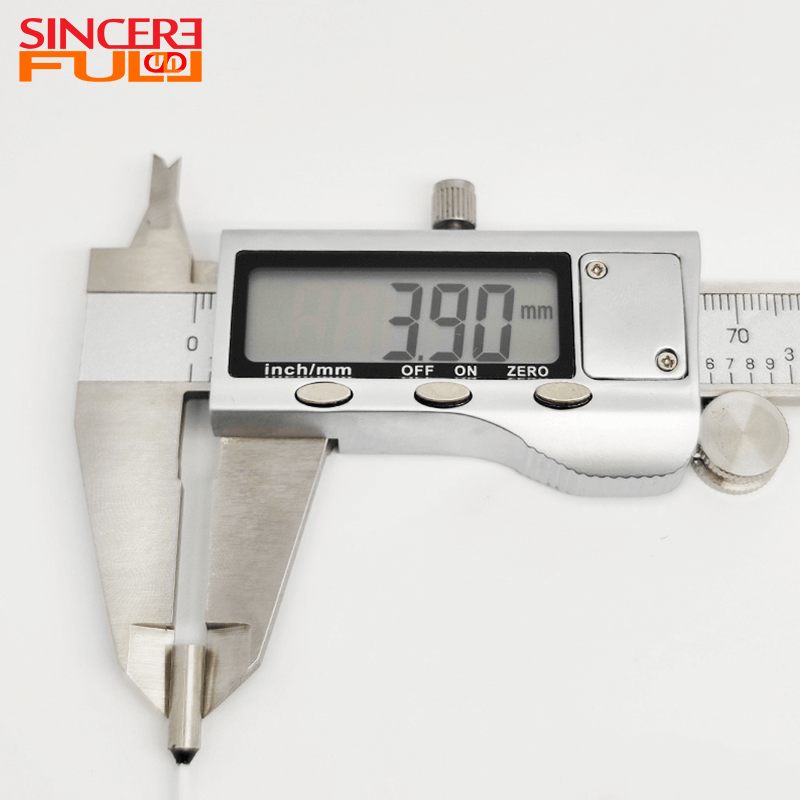

Diameter | 3.9mm |
FOV(D*H*V) | 95°*85°*43.5° |
TV Distortion | ＜-10% |
1.Archaeological Exploration: Compatible with ancient tomb crevice detectors, inspecting the preservation status of internal murals through cultural relic gaps;
2.Power Inspection: Equipped with high-voltage cabinet insulation probes, penetrating into the cabinet to detect the oxidation degree of electrical contacts;
3.Mechanical Maintenance: Using engine compartment inspection mirrors, observing the wear of gears, bearings and other components with 360° rotation;
4.Pipeline Inspection: Equipped with pipeline inspection catheters for DN50 and above, troubleshooting problems such as weld corrosion and pipeline blockage;
5.Dental Treatment: Adopting special detection probes for molar areas, clearly presenting details such as dental caries microcracks and plaque;
6.Otolaryngology (ENT) Examination: Equipped with ear canal dome observation mirrors, fully capturing the ear canal structure with a 95° wide angle, and LED shadowless lighting avoiding eardrum reflection interference.
1. Does the module support plug-and-play?
Yes, relying on the USB2.0 UVC protocol, no additional drivers need to be installed.
2. What is the protection level?
IP67 dustproof and waterproof, with Steel Shell protection to improve durability.
3. Which operating systems are compatible?
Compatible with Windows, Linux, and Android systems.
