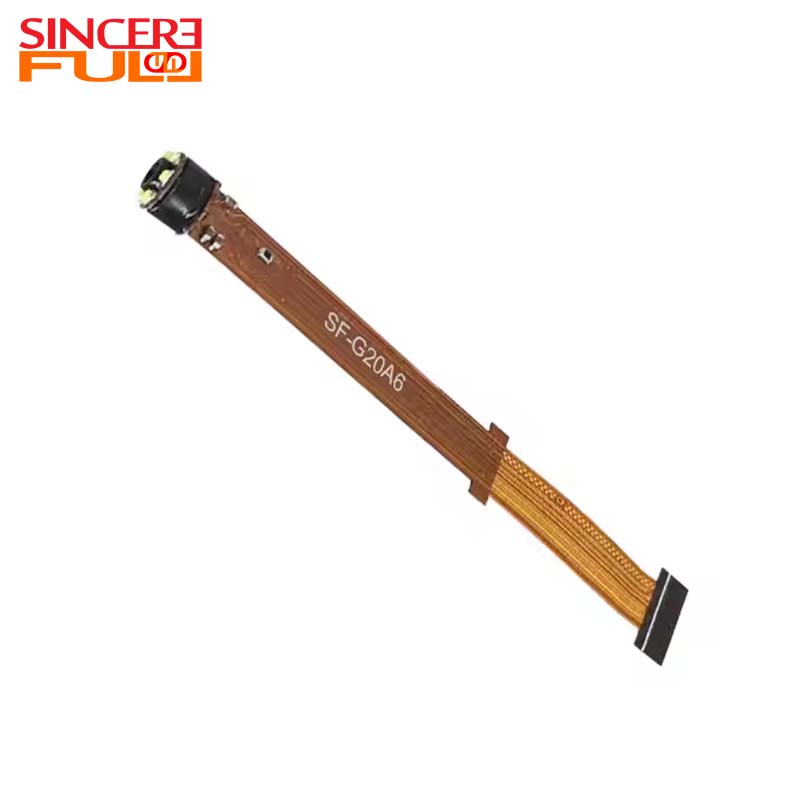

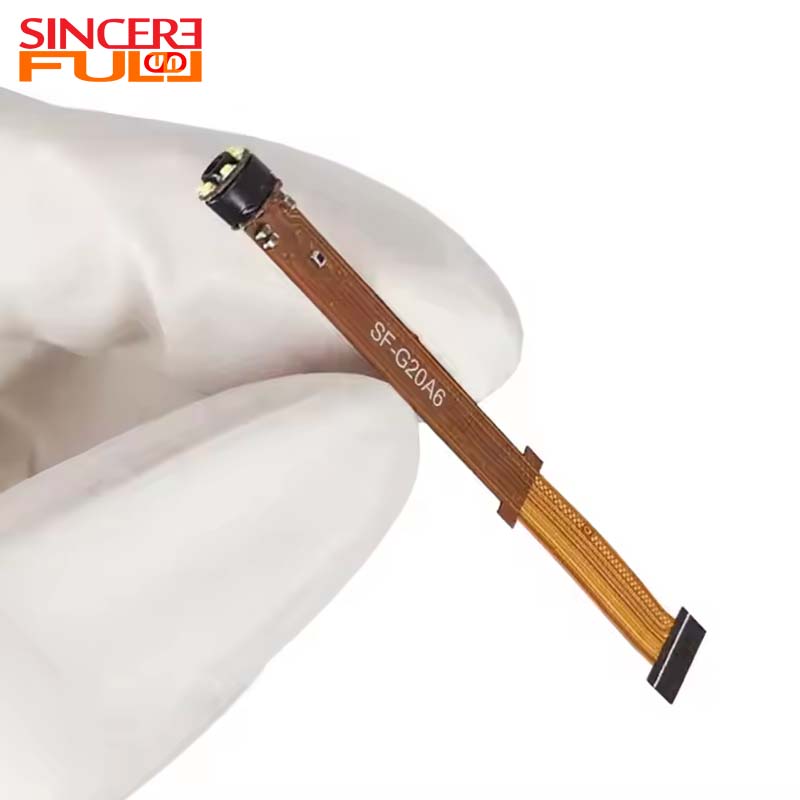

SF-G20A6
SINCEREFIRST

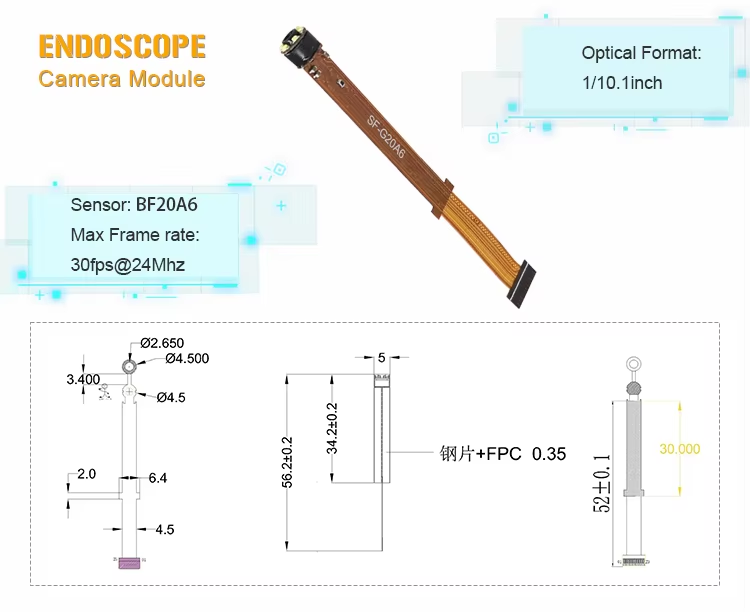

This is a 0.3MP Endoscope Camera Module featuring the BF20A6 Sensor. This compact Mini Camera Module is designed for versatility in various applications. The camera utilizes an electronic rolling shutter for optimal image capture, with an impressive signal-to-noise ratio of 36dB, ensuring clear and reliable visuals. The USB2.0 High Speed output facilitates seamless connectivity and data transfer, making this High Speed camera module a user-friendly option for real-time viewing and recording. Additionally, the integrated LED Light camera module enhances visibility in challenging environments, providing bright illumination to capture details in dark spaces. With an image area of 1440μm x 1080μm and a sensor size of 1/10 inch, the Endoscope Camera Module is designed for precision and ease of use. |  |
Resolution: 0.3MP with BF20A6 Sensor for clear imaging.
Compact Design: Mini Camera Module suitable for various applications.
Connectivity: USB2.0 High Speed output for quick data transfer.
Enhanced Visibility: Integrated LED Light for optimal illumination in dark areas.
1. Precision electronic manufacturing:
PCB board inspection: identify micro-solder joint defects (welding/short circuit), and test the mounting quality of 0402/0201 and other micro-components.
Connector internal inspection: Observe needle oxidation or poor contact.
2. Mechanical equipment maintenance:
Automotive engine: Look for fuel nozzle blockage or cylinder block scratches.
Aviation components: Check for cracks in turbine blades or internal wear of hydraulic valves.
3. Security and Law enforcement:
Covert investigation (such as vehicle intermezzanine contraband search), lock internal structure analysis.
Product Name | Mini camera module |
Features | smallest endoscope camera module |
Pixel Size | 0.3MP |
Sensor | BF20A6 |
FPS | 30FPS |
Lens Size | 1/10inch |
Signal-to-noise ratio | 36db |
Trademark | SINCERE FIRST |
Interface | USB2.0 |
Focus | Fixed |
FAQ
1. What are the interface types of the module?
Common interfaces include USB3.0, HDMI, SDI, etc. Industrial scenarios may use PoE power supply interfaces, and medical devices integrate dedicated medical image interfaces (such as DVI-Med).
2. What is the difference between medical and industrial endoscope modules?
The medical module emphasizes biocompatibility, sterilization and high image quality, and needs to comply with FDA/CE certification; Industrial modules focus on durability (such as corrosion protection), wide temperature operation (-20°C to 70°C), and special light sources (such as UV).
3. What are the possible causes of noise in the image?
If the sensor is overheating, signal transmission interferes, or the ISO is too high in low light, check the heat dissipation design, cable shielding, or enable the noise reduction mode.
