SF-C1011USB-D3.9-720P60
SINCEREFIRST
| This is a professional-grade high-definition industrial endoscope camera module, featuring a 3.9mm ultra-fine diameter probe design, equipped with a 720P resolution sensor, and supporting 60fps high frame rate video output. Its optical system adopts multi-layer coated lenses, combined with high-brightness LED lighting, to ensure that clear and low-noise images can still be obtained in complex industrial environments. The built-in DSP image processor provides real-time noise reduction and color optimization functions, significantly improving the detection accuracy. The industrial-grade design that is waterproof and dustproof enables it to adapt to harsh working environments such as dampness and oil stains, making it an ideal choice for internal inspection of industrial equipment. The innovative electronic image stabilization technology effectively suppresses the blurring of the picture caused by handheld jitter, while the adjustable LED light source brightness meets the lighting requirements of different detection scenarios. The compact probe design enables easy penetration into narrow Spaces such as the interior of machinery and pipes. Its flexible conduit section supports ±180° bidirectional bending, offering flexible operation. The professional software that comes with it supports functions such as image freezing, measurement annotation, and report generation, significantly enhancing the detection efficiency. |  |
1.Ultra-fine detection capability: The 3.9mm ultra-fine probe can penetrate into narrow Spaces larger than 4mm, specifically designed for internal inspection of precision instruments and observation of micro-machinery.
2.Medical-grade durable material: Made of stainless steel body, it is corrosion-resistant and wear-resistant, suitable for complex industrial environments.
3.360° unobstructed observation: The ultra-thin lens module supports omnidirectional rotation, accurately capturing hidden defects.
1. Precision manufacturing inspection: Internal wear inspection of micro bearings/gears, inner wall defect detection of precision molds, and observation of welding quality of microelectronic components.
2. Medical equipment maintenance: Internal inspection of minimally invasive surgical instruments, detection of dental equipment pipelines, self-inspection of endoscope equipment.
3. Scientific research experiment observation: Research on the movement of micro-mechanical structures, observation of microscopic deformation of materials, and records of fluid mechanics experiments.

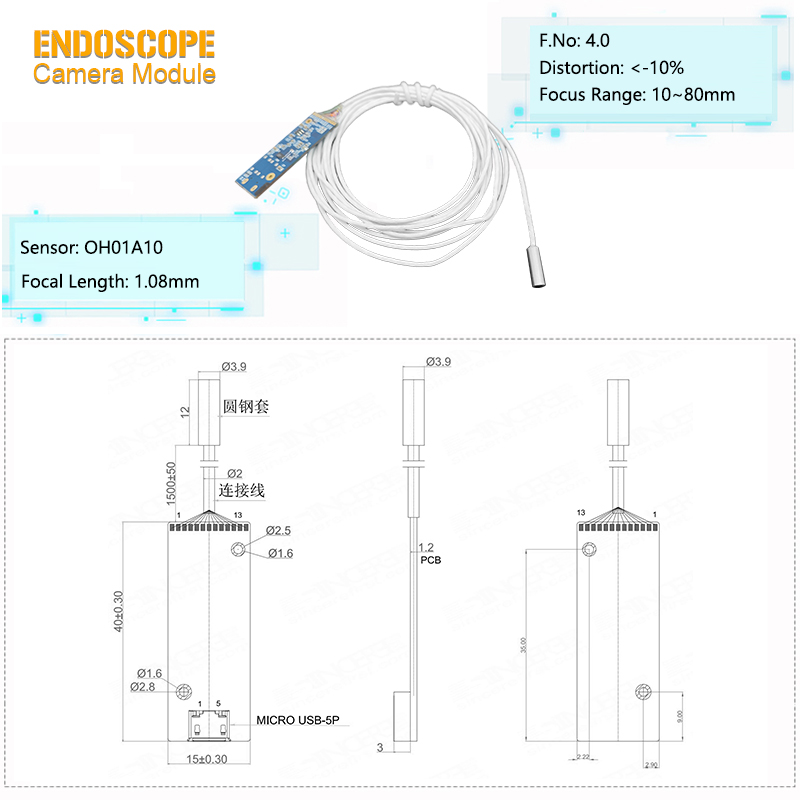

Product Name | 3.9mm Mini Flexible Endoscope Camera Module |
Basic tolerance | ±0.1mm |
DSP | USB |
Sensor | OH01A10 |
Focusing Range | 10-80mm |
Focal Length | 1.08mm |
F Number | 4.0 |
Resolution: | 720P Max 60fps |
TV Distortion | ＜-10% |
Diameter | 3.9mm |
1. What is the difference between medical and industrial endoscope modules?
The medical module emphasizes biocompatibility, sterilization and high image quality, and needs to comply with FDA/CE certification; Industrial modules focus on durability (such as corrosion protection), wide temperature operation (-20°C to 70°C), and special light sources (such as UV).
2.What is the significance of the depth of field range of the module?
The large depth of field can clearly present both near and far objects simultaneously, reducing the need for frequent focusing and is suitable for endoscopic surgery. Shallow depth of field is used to highlight specific planar details, such as epidermal examination.
3. How to achieve waterproof and sterilization design?
The medical-grade module adopts IP68 waterproof sealing. The shell material is resistant to high temperature and high pressure and can withstand 134°C steam sterilization. Industrial modules may only require splash-proof design.
Our company has several advantages that set us apart from our competitors and make us the first choice among our clients. Here are some of our key advantages:
1. Customer Service: Our team of professionals is loyal and proactive towards customers, responding promptly and effectively solving problems.
2. Timely Delivery: We understand the importance of delivering products on time. Our efficient logistics team ensures that we get our products to our customers on time.
3. Innovation: We continually strive to innovate and improve our products and services. We invest in research and development to stay at the forefront of our industry.
