| Quantity: | |
|---|---|
SF-C0115USB-D2.8-PRO V1.1 0.08MP LED
SINCEREFIRST

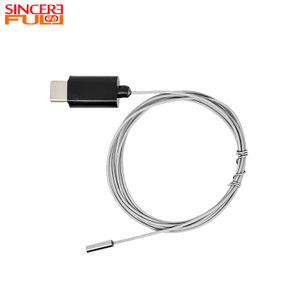

This IP67 waterproof USB removable endoscope camera module with LEDs an innovative modular removable structure, integrating high-performance optical design and flexible adaptability, suitable for various professional scenarios. Equipped with a 0.08MP CMOS image sensor, it features a 0.5mm ultra-short focal length lens and a 3-50mm wide focusing range, enabling both ultra-macro capture of tiny details and clear imaging for medium-distance needs. It has a 105° diagonal ultra-wide field of view (FOV (D)), with TV distortion controlled below -10% and an F4.5 aperture, ensuring comprehensive imaging coverage with minimal distortion. The module comes standard with 0201 white LED lights, providing stable illumination in narrow or dim environments, while also supporting customization of infrared or ultraviolet light sources to meet the needs of different scenarios such as medical, industrial, and security applications. The module adopts a separated design, where the lens and DSP are removable and connected via a USB Type-C interface to the DSP board, facilitating tool storage, portability, and flexible use across multiple work environments. It uses a Mini USB-5P interface for output, supports the UVC protocol for plug-and-play functionality, and is seamlessly compatible with mainstream operating systems such as Windows and Linux. The module's lens has a diameter of 2.8mm, integrated with a steel shell for protection, and supports IP67-level dust and water resistance. It is manufactured using SMT and AA (Active Alignment) processes, and has passed international certifications including CE, FCC, RoHS, and Reach, meeting global market access requirements. | 1
|
High Protection & Durable Structure: Integrates IP67-level dust and water resistance, combined with a lens steel shell protection design, enabling it to handle complex environments such as wet pipelines and outdoor rain; the adoption of SMT and AA processes ensures the optical accuracy of the lens and the stability of the module, preventing imaging deviation during long-term use.

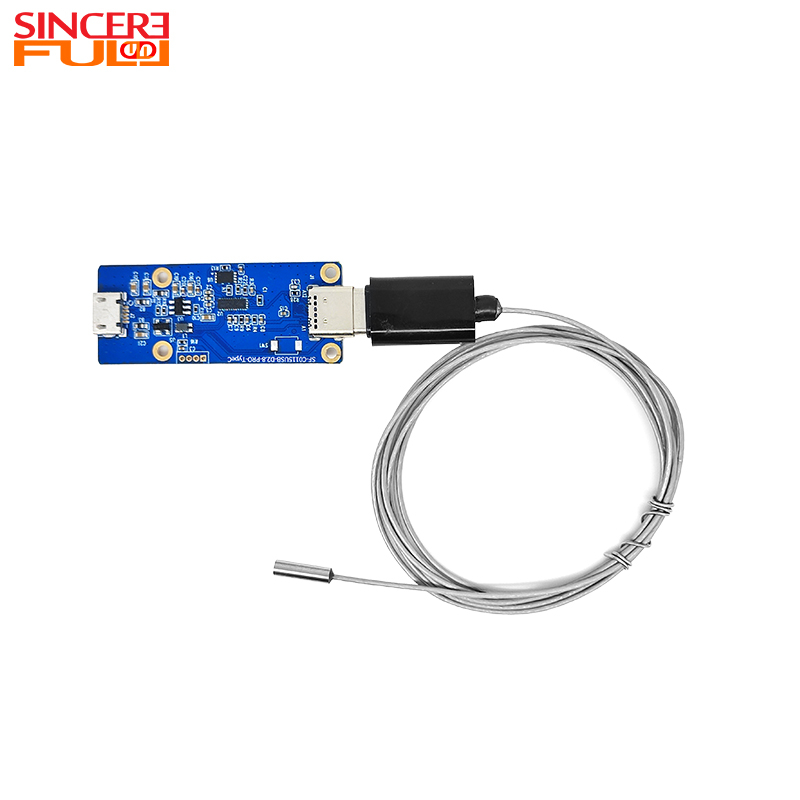

Flexible Modular Design: The lens and DSP unit are removable and can be quickly connected via a USB Type-C interface. There is no need to replace the entire module when replacing the lens, reducing maintenance costs; the 2.8mm ultra-slim lens diameter, paired with the removable structure, allows it to penetrate narrow spaces such as precision mechanical gaps and the interior of electronic devices, while also being easy to store and carry, adapting to the needs of multi-scenario tool combinations.
Professional Optical Imaging Capability: The 0.5mm ultra-short focal length combined with a 3-50mm wide focusing range balances ultra-macro detail capture (e.g., solder joints of electronic components) and medium-distance panoramic observation (e.g., interior of pipelines); the 105° diagonal ultra-wide angle, combined with an F4.5 aperture and optimized TV distortion (<-10%), ensures a wide imaging coverage with minimal distortion, avoiding missed inspection blind spots.
Multi-Scenario Lighting Adaptability: Standard 0201 white LED lights provide basic fill light, solving the problem of blurry imaging in dim environments; customization of infrared and ultraviolet light sources is supported, covering differentiated needs in medical, industrial, and security fields.
Cross-System Convenient Compatibility: The Mini USB-5P output interface supports the UVC protocol, enabling plug-and-play without the need for additional driver installation. It can be seamlessly connected to computers, laptops, and compatible tablets running Windows and Linux systems, realizing real-time, delay-free image transmission and adapting to the device ecosystems of different users.
Automotive Repair Endoscope: Penetrates into the 5mm inner-diameter curved pipeline of the turbocharger intake port to observe the carbon deposit distribution at the root of the blades and evaluate the dynamic balance wear status.
Root Canal Therapy Instrument: Assists in human ENT (Ear, Nose, Throat) examinations for conditions such as cerumen impaction (the waterproof design is suitable for the humid environment of the ear canal) and dental root canal therapy observation; used in veterinary hospitals to examine ear inflammation and oral mucosa damage in small pets (e.g., cats, rabbits), with the ultra-slim lens avoiding discomfort to the animals.
Mold Hot Runner Inspection: Detects plastic carbonized layers on the inner wall of 3mm-diameter hot nozzles and foreign objects in the copper shell gap, avoiding downtime losses caused by mold disassembly.
Environmental Inspection: Inspects the aging status of internal circuits in environments such as humid warehouses and underground equipment rooms, with IP67 protection capable of handling humid or condensation-prone environments.

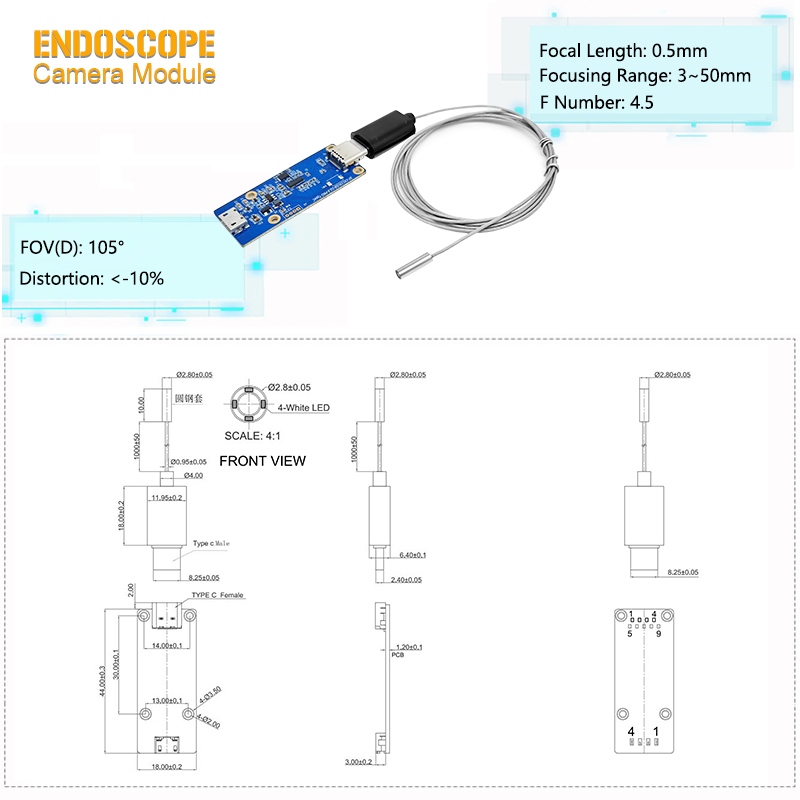

Product Name | Camera Module Separation |
Basic tolerance | ±0.1mm |
DSP | USB |
LED | 0201 LED |
Focusing Range | 3-50mm |
Focal Length | 0.5mm |
F Number | 4.5 |
FOV(D) | 1.5° |
TV Distortion | ＜-11% |
Connector | Mini USB-5P |
IP67 protection means the module is completely dust-tight and can withstand temporary immersion in 1-meter deep water (within 30 minutes). It can be safely used for daily scenarios such as wet pipeline inspection and equipment maintenance in outdoor rainy environments. However, for long-term underwater operations, an additional customized higher-level waterproof solution is required.
No. IP67 only guarantees protection against normal-temperature fresh water immersion. Additional customization of sealing rings and protective coatings is required for applications involving temperatures above 80°C steam or corrosive solvents.
No. The Type-C interface is only for connecting the camera to the DSP board, while the Mini USB-5P is the system output interface. They work in series and cannot be used as parallel inputs.
The LED lights integrated into the lens need to be customized according to customer requirements. For specific customization solutions, please contact SincereFull.
Infrared light sources are suitable for dark environments without visible light, capable of penetrating light dust for night vision imaging; ultraviolet light sources are suitable for special detection scenarios, identifying defects or lesions invisible to the naked eye by exciting fluorescent substances.
