4.6mm Diameter VGA CMOS Sensor 720P TV Endoscope Camera Module with Led

This 4.6mm diameter camera module with VGA sensor endoscope is designed for medical applications.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • SF-C0310TV-D4.6

  • SINCEREFIRST

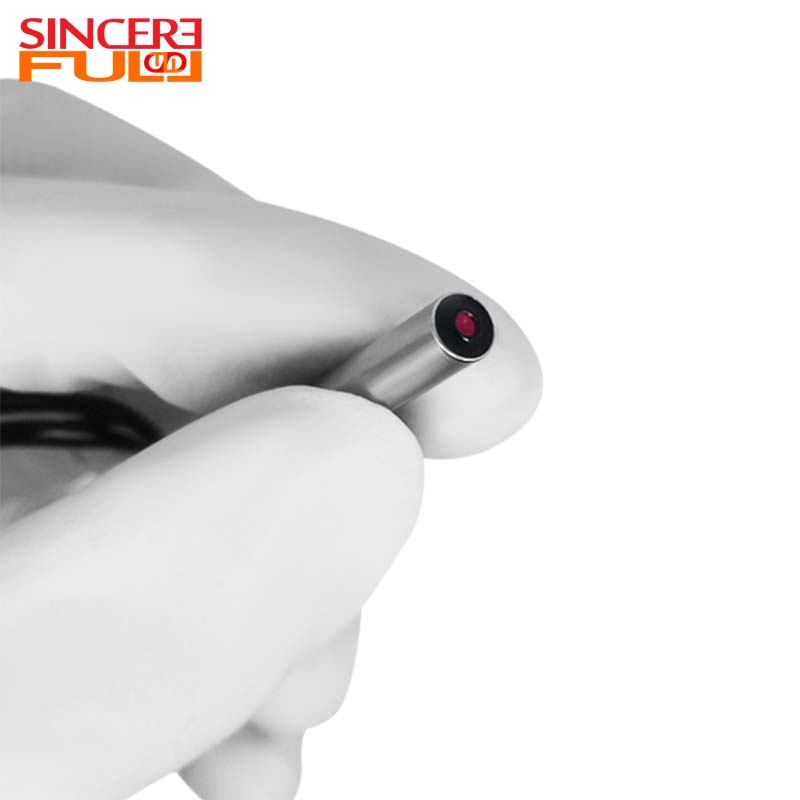

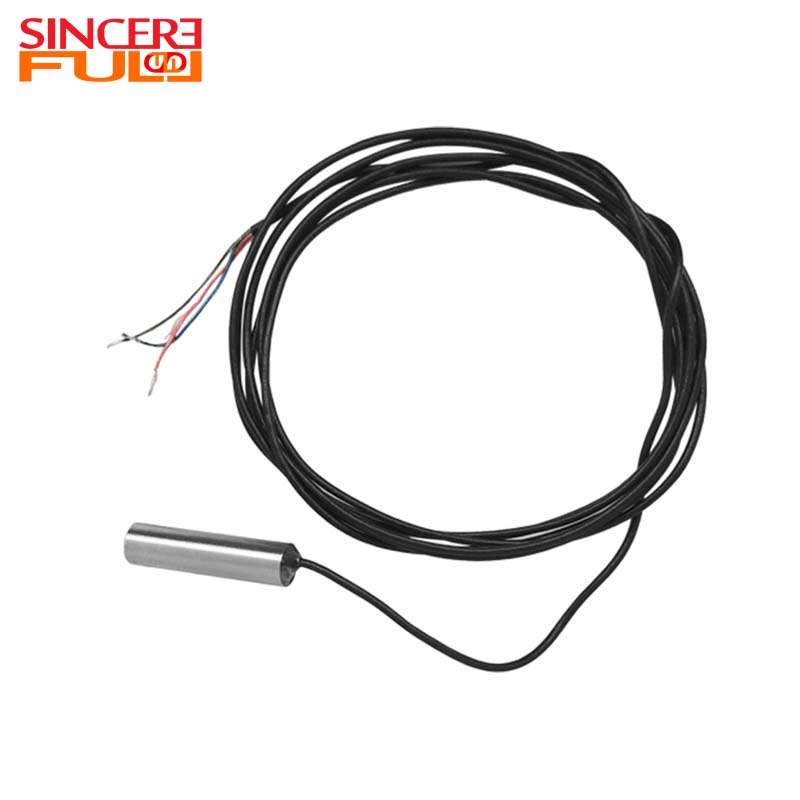

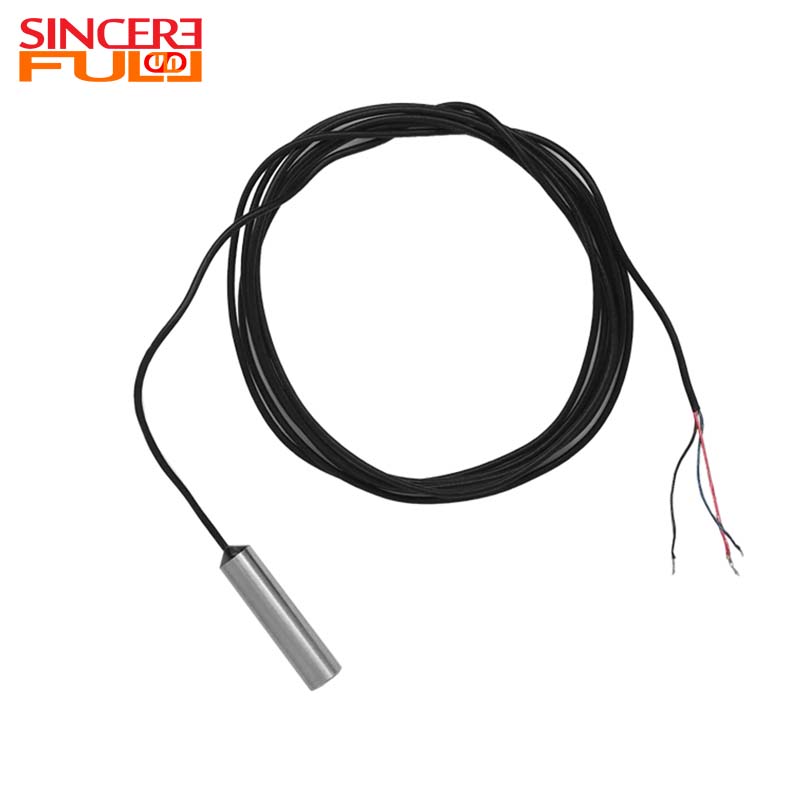

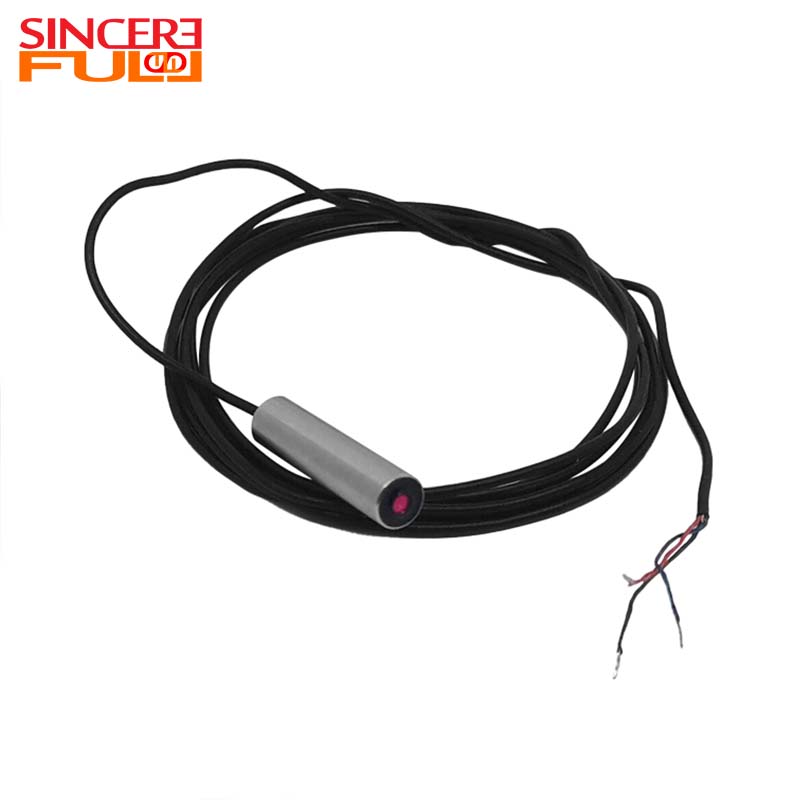

This 4.6mm diameter camera module with VGA sensor endoscope is designed for medical applications. The CMOS image camera module has a resolution of 720P, providing clear imaging for a variety of diagnostic procedures.

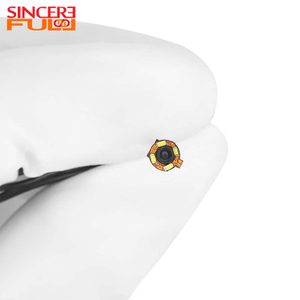

The module supports focal lengths from 10mm to 60mm, and the recommended depth of field (DOF) ensures optimal performance in this range. Equipped with four bright 0402 white leds, this camera module with leds provides good lighting for detailed inspection.


With a 90° wide Field of view (FOVD) and IP67 waterproof rating, the TV endoscope is ideal for use in challenging environments, maintaining high image quality even in environments prone to moisture

4.6mm Diameter Camera Module


Produ

ct Advantage ◢

  • 4.6mm diameter.

  • VGA CMOS with 720P resolution

  • Focal Length Support 10mm to 60mm DOF

  • Four 0402 white LEDs for illumination

  • IP67 waterproof rating, suitable for medical use


Application Of Endoscope Camera Module

1. Endoscopic diagnosis: early gastrointestinal disease screening (with disposable sheath tube), dental root canal treatment and oral examination.


2. Veterinary medicine application: pet gastrointestinal/respiratory endoscopy, minimally invasive surgery monitoring of experimental animals.


3. Industrial expansion applications: precision instrument maintenance (such as combustion engine fuel nozzle testing), pipeline welding quality testing (moisture-proof and oil-proof scenarios).

Technical Parameters ◢

Product Name

Medical Endoscope Camera Module

Features

Micro Endoscope Camera Module

Led

0402 White Led

Sensor

VGA

Focusing Range

10mm-60mm

Waterproof

IP67

Focal Length

1.08mm

Trademark

SINCERE FIRST

F Number

2.8

Fov(D)

90°



FAQ

1. How to evaluate the cost performance of the module?

For comprehensive resolution, durability, and after-sales support (such as medical modules that require calibration services from manufacturers), industrial scenarios can prioritize MTBF (mean time to failure) indicators.


2. Can I buy a used medical endoscope module?

Sterilization history, sensor wear (e.g. number of hours on) must be confirmed, and must be re-certified by the original manufacturer, otherwise there is a risk of cross-infection or performance.


3. What is the difference between medical and industrial endoscope modules?

The medical module emphasizes biocompatibility, sterilization and high image quality, and needs to comply with FDA/CE certification; Industrial modules focus on durability (such as corrosion protection), wide temperature operation (-20°C to 70°C), and special light sources (such as UV).
