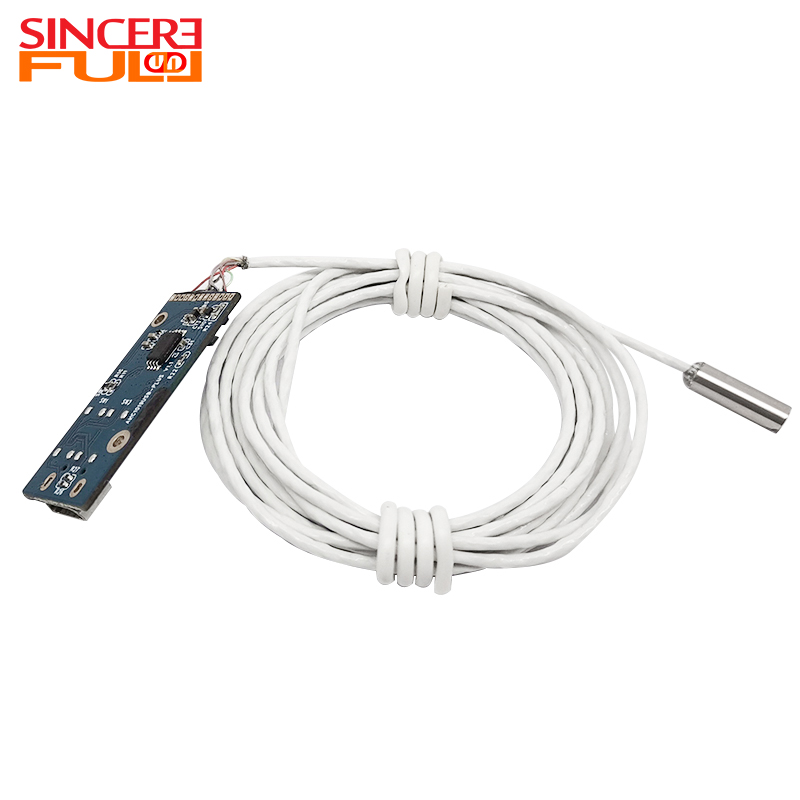

3.9mm USB Sensor GC030A Endoscope Camera Module with Steel Shell

This is the 3.9mm USB Sensor GC030A Endoscope Camera Module with Steel Shell, an industrial-grade visual imaging solution integrating high performance, compact size, and high durability, combining advanced hardware configuration and strict manufacturing standards. The module is equipped with the Goke GC030A CMOS Color Image Sensor, featuring 0.3MP pixels, a sensor size of 1/10 inch, and a pixel size of 3μm3μm, which ensures excellent light-sensing performance. It supports stable output of 640480@30fps resolution images, with output formats compatible with dual YUV/MJPEG modes to meet transmission and processing needs in different scenarios. The module is equipped with a 1.074mm short-focus lens, with an aperture value of 3.58, a 90° wide field of view, and a TV distortion rate of less than -5.5%, enabling all-angle, low-distortion imaging; the precise focusing range is 20-80mm, which can clearly present the target details within this range. Adopting a split design, the module connects to the DSP board via wire bonding and realizes data output through a Mini USB-5P interface. It supports USB2.0 transmission rate and UVC protocol, and can seamlessly compatible with mainstream operating systems such as Windows, Mac OS, and Linux without complex additional drivers. The lens has a diameter of 3.9±0.1mm and an integrated steel shell protective structure, reaching IP67 dustproof and waterproof level, which can adapt to harsh working environments; the product is manufactured using SMT process and AA process to ensure parameter accuracy and consistency, and has passed multiple international testing and certifications including CE, FCC, RoHS, and Reach, meeting global market access requirements.

Product Advantage ◢

1. Broad-spectrum imaging adaptability: The F3.58 aperture maintains a 1/30-second shutter speed in low-light cavities to avoid motion blur; the 20-80mm focal range covers everything from macro surface screening to deep tissue observation, reducing intraoperative focusing frequency.

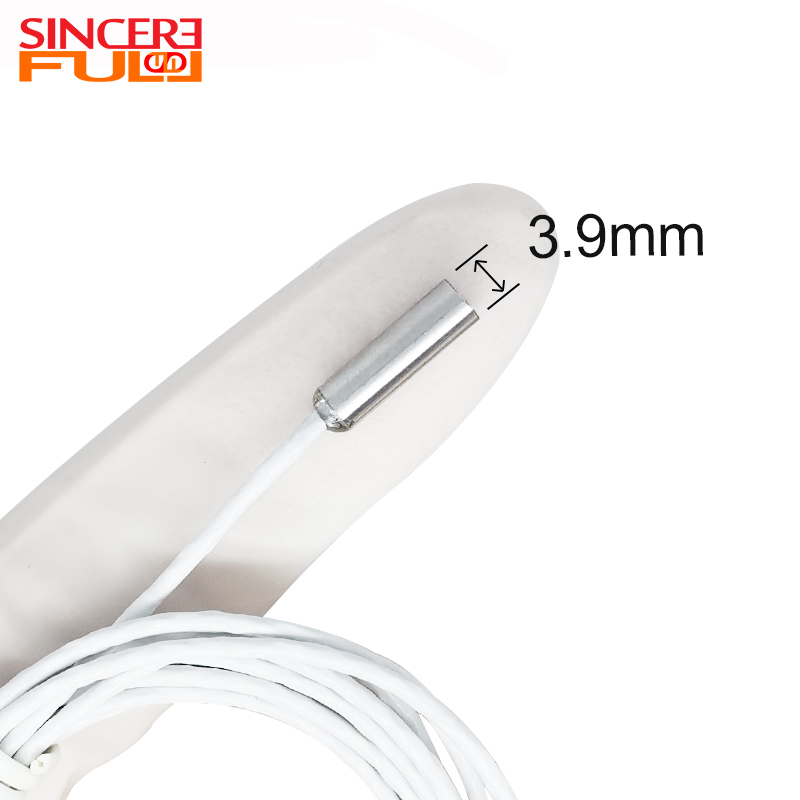

2. Miniaturized integration design: The 3.9mm outer diameter fits standard 5mm instrument channels, leaving ample operating space for bronchoscopes, ureteroscopes, etc.; the 1.074mm lens back focal length shortens the total module length for improved handle-end weight balance.

3. Plug-and-play compatibility: Compliant with USB Video Class 1.5 standard, it can invoke DirectShow/AVFoundation frameworks without installing a dedicated SDK, shortening medical equipment software certification cycles.

Product Advantage ◢

1. Industrial machinery inspection: Suitable for defect detection of motor bearings, gearbox interiors, precision instrument assembly gaps, and hydraulic system components.

2. Pipeline maintenance: Used for visual inspection of internal blockages, corrosion, and cracks in tap water pipes, industrial fluid pipelines, gas pipelines, and small-diameter drainage pipes.

3. Medical endoscopy: Adaptable to small diagnostic equipment in fields such as otolaryngology and urology, assisting clinicians in accurately observing internal tissues.

4. Automotive diagnostics: Can detect faults in engine cylinders, internal oil circuits of gearboxes, chassis connectors, and fuel injectors.

5. Aerospace testing: Applicable to the inspection of aero-engine blades, spacecraft pipeline interfaces, and precision avionics component assembly.

6. Electronic equipment maintenance: Assists in locating fault points in mobile phone motherboards, computer host interiors, drone core components, and camera modules.

7. Civil and household maintenance: Used for maintenance and inspection of air conditioning evaporators, washing machine drum bearings, and internal structures of small household appliances.

Technical Parameters ◢

FAQ◢

1. Which devices can this module be connected to?

This module can be connected via the USB interface to most computers (including Windows, Mac OS, and Linux systems), laptops, and some tablets that support USB devices. As long as the device has a USB interface and can recognize external devices, this module can be used.

2. Does the separated design increase failure risk?

No. Wire bonding connections use medical-grade flexible flat cable that has passed rigorous bending tests. The separated design actually facilitates repair and replacement without scrapping the entire unit.

3. What is the waterproof rating of the module?

The front lens section of the module has an IP67 rating for dust and water resistance, meaning it can be submerged in water up to 1 meter deep for a short period without damage.

4. Can it be customized with a 5mm housing?

Customization service is available; flange distance must be recalibrated to ensure 20-80mm focusing accuracy is maintained.
