SF-C2015USB-1080P-D8
SINCEREFIRST

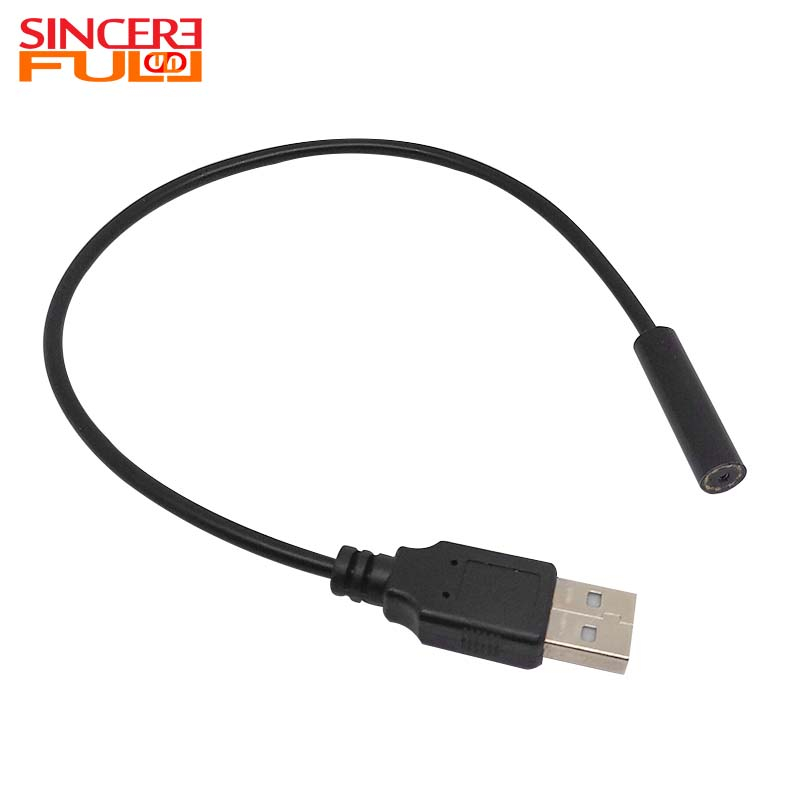

| This 8.0mm 2MP 1080P endoscope camera module for inspection devices that need full-HD image output in a larger front-end structure. Its 60° diagonal field of view and 30–50mm focusing range are suited to controlled close-range inspection where the target remains within a relatively defined distance window. USB2.0 output can be connected through Type-C or USB Type-A cable options, and an optional eight-LED configuration is available for enclosed spaces requiring local illumination. Difference: This model is better suited to devices that prioritize 1080P image detail and Type-C/USB host connection over minimum front-end diameter or ultra-wide viewing coverage. |  |
Selection Requirement | Standard Configuration | Selection Note |
Available diameter | 8.0mm front-end outer diameter | Confirm that the device can accommodate the larger 8mm structure. |
Image requirement | 2MP / 1080P | Use this model when full-HD detail is more important than extreme miniaturization. |
Working distance | 30–50mm | Best suited to a defined close-range interval; another optical setup is needed outside this range. |
Field coverage | D60° | Confirm that the narrower view provides the required target detail and coverage. |
Lighting | Optional 8 × 0402 LEDs | Confirm whether the device requires integrated lighting and how reflective the target surface is. |
Host connection | USB2.0; Type-C or USB Type-A cable options | Confirm host connector, USB role and software environment. |
1080P Image Output — provides more image detail than VGA/720P-class modules for close-range inspection.
30–50mm Focus Range — supports inspection tasks with a controlled and repeatable target distance.
60° Diagonal Field of View — prioritizes a more focused viewing area rather than ultra-wide coverage.
Optional Eight-LED Lighting — can provide local illumination when external light is limited.
Type-C / USB Type-A Cable Options — allow the host connection to be selected around the device interface layout.
This module is most appropriate when the device can maintain the target within a relatively narrow 30–50mm distance window and values 1080P detail. It is less suitable when the target distance changes widely or when the device requires an ultra-small front-end diameter. The selection decision should therefore start from image detail, working distance and available mechanical space together.
Product Name | 2MP 1080P 8mm HD Medical Inspection Endoscope Camera Module |
Sensor | CMOS Sensor |
Sensor Size | 1/5-inch |
Diameter | 8.0mm |
Focal Length | 2.63mm |
Interface | USB 2.0 |
F Number | F2.8 |
FOV | D60° |
TV Distortion | ＜1% |
Focusing Range | 8pcs 0402 High-Brightness LED |
| Optional LED | Separate Endoscope Camera Module |
| Output Interface | USB2.0 |
| Compatible Connectors | Type-C, USB Type-A |
| Flexible Cable Length | 230±10mm |
1. Portable 1080P Inspection Camera — The module suits handheld or portable devices that can accommodate an 8mm front end and need 1080P detail. Confirm the host connector and target distance.
2. Electronic Assembly Inspection Device — The 30–50mm range and 1080P output can support visual checking of components or assemblies at a controlled distance. Confirm the required field coverage.
3. Equipment Cavity Inspection Tool — Suitable for larger access openings where a full-HD view is required inside an enclosure. Confirm lighting and the 8mm mechanical clearance.
4. USB Type-C Inspection Terminal — Can be integrated into a device that exposes Type-C on the host side while using USB2.0 imaging. Confirm USB role, power and software support.
1. Mechanical envelope: If the 8mm outer diameter or 31mm front-end length does not fit the device, the mechanical requirement should be reviewed. Please provide available diameter, insertion depth and assembly drawing.
2. Working distance and FOV: If the 30–50mm range or 60° view does not match the target, optical requirements can be evaluated. Please provide target size and nearest/farthest distance.
3. Host connector and cable: If Type-C or USB Type-A is not the desired host connection, cable and connector direction can be reviewed. Please provide connector preference, cable route and host location.
4. Lighting: If optional eight-LED illumination is required, LED integration should be reviewed against target reflectivity, power budget and brightness-control needs.
Final configuration should be confirmed through engineering review and sample verification before mass production.
1. Is this model mainly for ultra-narrow spaces?
No. Its main value is 1080P image detail and convenient USB host connection; the front-end outer diameter is 8mm.
2. What working distance is recommended?
The confirmed focusing range is 30–50mm, so the device should keep the target within this interval for standard evaluation.
3. Can I use Type-C directly on the host device?
A Type-C cable option is available, but the host USB role, power and application software still need to support the camera connection.
4. Are the eight LEDs standard?
The eight-LED configuration is optional and should be selected according to the lighting environment.
5. What should be tested before production?
Mechanical fit, 1080P output, working distance, field coverage, lighting and the actual Type-C/USB host connection should all be verified with a sample.
CTA
Please send the available front-end space, target distance, required image detail, field coverage, lighting condition, cable route and host connector. We can then evaluate the standard 8mm 1080P configuration for your device.
