2.8 MM Cmos Sensor Micro Digital Endoscope Camera Module

The miniature digital endoscope camera module is only 2.8 mm in diameter and is equipped with a CMOS sensor to provide high-quality, colour-realistic endoscope images and videos.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • SF-C0115USB-D2.8

  • SINCEREFIRST

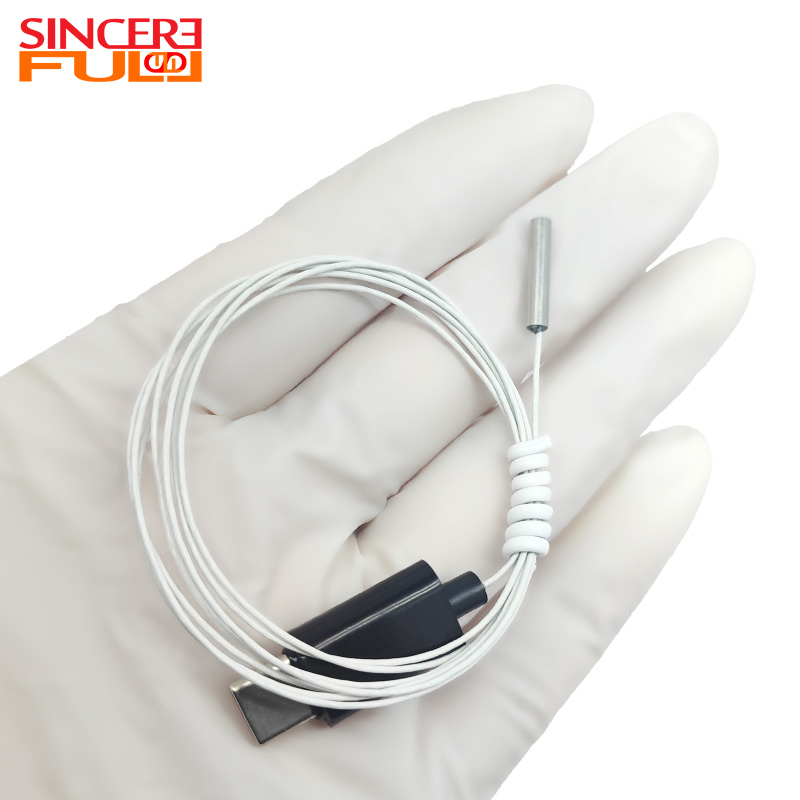

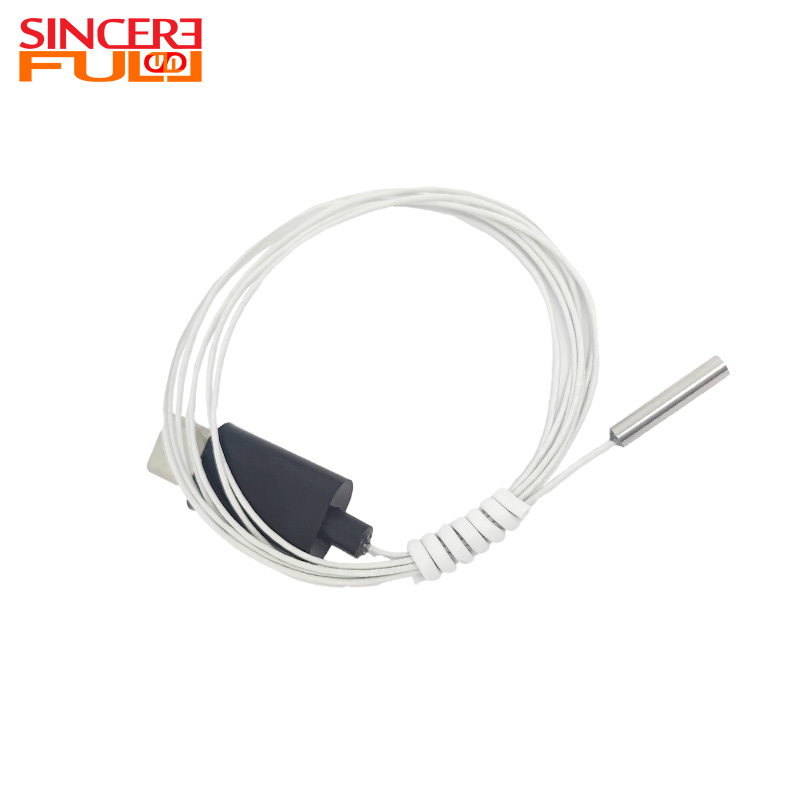

This micro digital endoscope camera module has a diameter of 2.8 mm and is equipped with a cmos sensor to bring high-quality images and videos with excellent color fidelity for endoscopy.


Features ◢

  • 2.8mm diameter with cmos sensor

  • Ultra-micro Type-C Endoscope Camera Module

  • Support Customization

  • IP67 oil and waterproof

  • Widely used in medical areas and industrial inspection


Application Of Endoscope Camera Module ◢

  • Automotive inspection

  • Pipeline inspection

  • Medical endoscope

  • Industrial PCB detection


Product Details ◢

Sensor

CMOS

LED

0402 White LED

Connector

Type-C

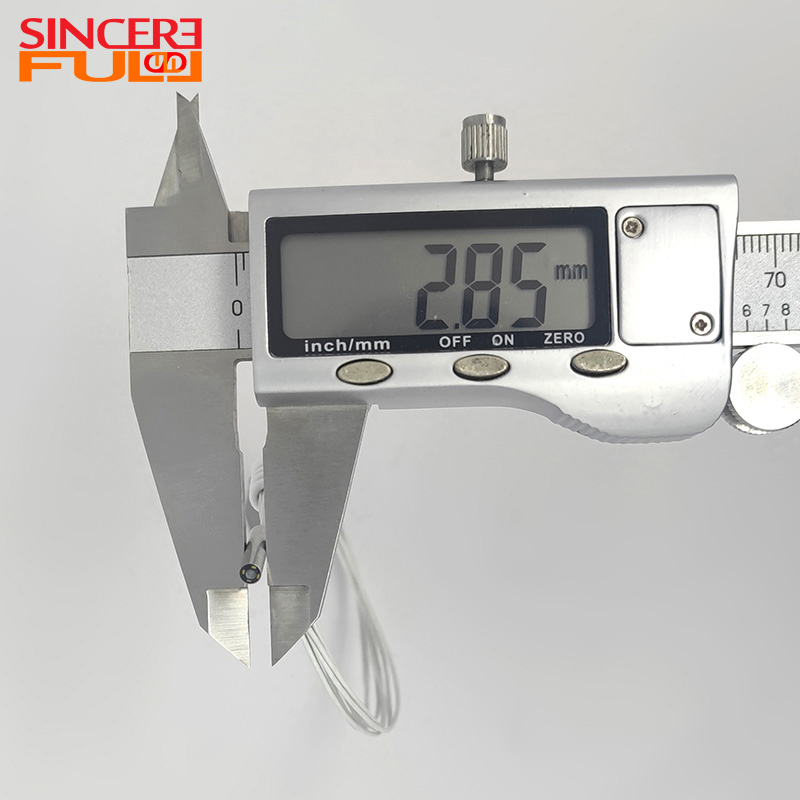

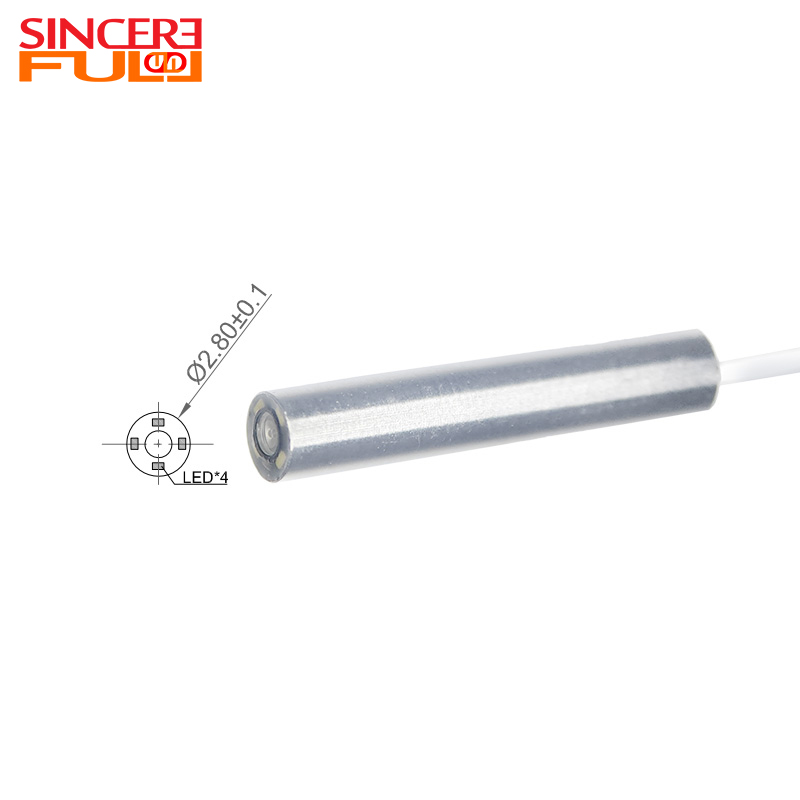

Diameter

2.8mm

Pixel

0.08MP

Application

Industrial, Medical

Warranty

1 Year Replacement, 10 Years Warranty

Data Format

MJPG,YUY2


Product Uses ◢

  • arthroscope

  • laparoscope

  • hysteroscope

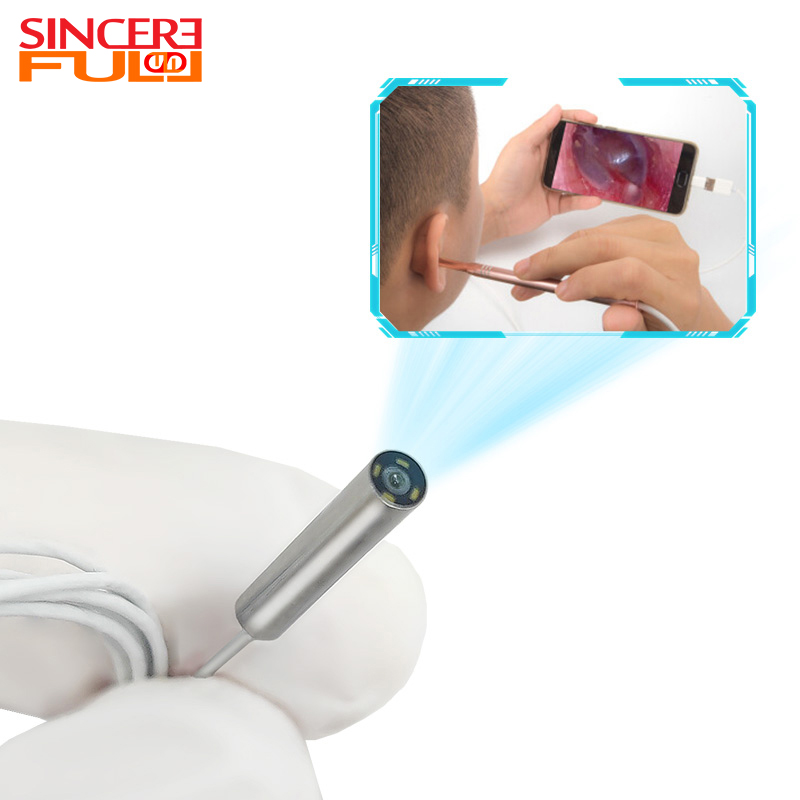

  • otoscope


FAQ ◢


1. What is the difference between medical and industrial endoscope modules?

The medical module emphasizes biocompatibility, sterilization and high image quality, and needs to comply with FDA/CE certification; Industrial modules focus on durability (such as corrosion protection), wide temperature operation (-20°C to 70°C), and special light sources (such as UV).


2. What are the common specifications of the resolution of the endoscope camera module?

Mainstream resolutions include 720p, 1080p, 4K, etc. Medical grade modules usually require more than 1080p to ensure diagnostic accuracy, while industrial modules may choose lower resolutions to reduce costs according to demand. Ultra-high resolution modules (such as 4K) are mostly used in precision surgery or scientific research.


3. How does the Field of view (FOV) of the module affect the use effect?

The field of view Angle determines the imaging range. The wide Angle is suitable for observing a large area, but the edge may be distorted. Narrow angles provide a more focused picture. The selection should be based on the application scenario, such as laparoscopic surgery commonly used 70°-90° balanced field of view and detail.
