Selection Logic and System Compatibility Considerations for 300k-Pixel Macro Imaging Modules

Selection Logic and System Compatibility Considerations for 300k-Pixel Macro Imaging Modules

During the development of personal care devices, portable medical instruments, and miniature industrial inspection terminals, the selection of imaging modules often faces a unique set of constraints: extremely limited physical space, working distances confined to within a few centimeters, uncontrollable and typically insufficient ambient lighting, and system power consumption strictly limited by battery capacity. When applications exhibit these combined characteristics, generic imaging solutions touting high-resolution and multi-functionality often fail due to oversized dimensions, inadequate close-up capabilities, or excessive power consumption. In such scenarios, specialized imaging modules featuring 300k pixels, macro optimization, DVP interfaces, and ultra-low power consumption emerge as a viable technical path warranting systematic evaluation. This paper aims to establish a selection evaluation framework for such modules and elucidate the intrinsic logical connections between technical parameters and specific application scenarios.

I. The Underlying Logic of Resolution Selection: Why 300k Pixels?

An effective pixel array of 640×480 (i.e., 300k-pixel level) is often categorized as an entry-level configuration within consumer electronics evaluation systems. However, within the specific application domain of macro imaging, resolution suitability must be reassessed in conjunction with working distance, field-of-view coverage, and pixel size.

Taking dental examination scenarios as an example, typical working distances range from 15 to 30 millimeters, with a field-of-view coverage of approximately 20×15 millimeters. Under these conditions, a 640×480 resolution translates to each pixel corresponding to an object-side dimension of approximately 31×31 micrometers. This scale is sufficient to clearly display critical clinical information such as gingival texture, plaque distribution, and early caries discoloration. While increasing resolution to the megapixel level can further reduce the pixel-to-object-side ratio, the marginal benefit diminishes rapidly due to the cutoff frequency of the optical system's Modulation Transfer Function (MTF).

This relates to the 2.25-micron pixel size design. Achieving 640×480 resolution on a 1/10.0-inch optical format maintains a pixel size of approximately 2.25 microns. Compared to mainstream high-resolution sensors with pixel sizes ranging from 0.8 to 1.2 microns, this design increases the light-sensitive area per pixel by 3 to 8 times. This difference holds substantive significance in LED-illuminated macro scenarios—greater photosensitive area translates to higher signal-to-noise ratio and lower image noise, directly enhancing clinical image discernibility.

II. Technical-Economic Analysis of Interface Selection

The selection of the DVP (Digital Video Port) parallel interface is often interpreted as a technological gap in a market dominated by serial interfaces (MIPI, LVDS). However, under specific application constraints, the technical-economic viability of the DVP interface warrants reevaluation.

The core feature of the DVP interface lies in parallel data transmission—pixel clock, line sync, field sync, and 8/10-bit data are transmitted via independent physical lines. Compared to serial interfaces requiring high-speed serialization and deserialization processing, the DVP interface eliminates the need for complex PHY (Physical Layer) circuit integration at the sensor end. It also dispenses with the requirement for a MIPI CSI-2 controller at the receiving end (master chip). For embedded systems utilizing low-cost MCUs or entry-level application processors, this difference translates to savings of $0.3 to $0.5 in material costs and reduces the complexity of driver development.

The 30fps@24MHz frame rate configuration falls precisely within the DVP interface's bandwidth comfort zone. Calculated at 640×480 resolution with 10-bit pixel depth, the raw data rate is approximately 92Mbps, rising to about 120Mbps when blanking overhead is factored in. At a 24MHz pixel clock, the DVP interface's theoretical bandwidth reaches 192Mbps, leaving ample headroom. This bandwidth alignment ensures transmission link stability without requiring data compression or caching mechanisms, thereby controlling end-to-end latency within a single frame cycle (33 milliseconds).

III. Design Constraints and Depth-of-Field Management for Macro Optical Systems

This module's application scenarios are highly concentrated on ultra-close-range imaging within a few centimeters, imposing unique demands on its optical system. Unlike general-purpose lenses optimized for infinity or intermediate distances, macro optical system design must prioritize correcting aberrations introduced by close-range imaging while balancing magnification and depth of field constraints.

With a 1/10.0-inch optical format and 2.25-micron pixel size, the Nyquist frequency is approximately 222 line pairs per millimeter. To maintain an acceptable modulation transfer function at this frequency, the lens design employs aspheric elements to correct spherical and comatic aberrations. Field curvature control ensures simultaneous sharpness across the peripheral and central fields. The module's emphasis on macro performance indicates its optical system was designed with a working distance range of 20 to 40 millimeters, achieving image quality optimization within this range.

Depth-of-field management presents another core challenge in macro imaging. According to optical formulas, under typical configurations of a 20mm working distance and F2.8 aperture, the physical depth of field measures approximately 2 to 3mm. This implies that any surface irregularities exceeding this range will inevitably result in partial areas being out of focus. Selection criteria require evaluating the three-dimensional characteristics of objects in target scenarios: For relatively flat surfaces like the buccal surfaces of teeth within the oral cavity, shallow depth of field remains acceptable. However, for areas with significant dental arch curvature or deep fissures, compensation is necessary through angle selection or multi-frame focus stacking.

IV. Integration Logic of the Illumination System and Thermal Management Constraints

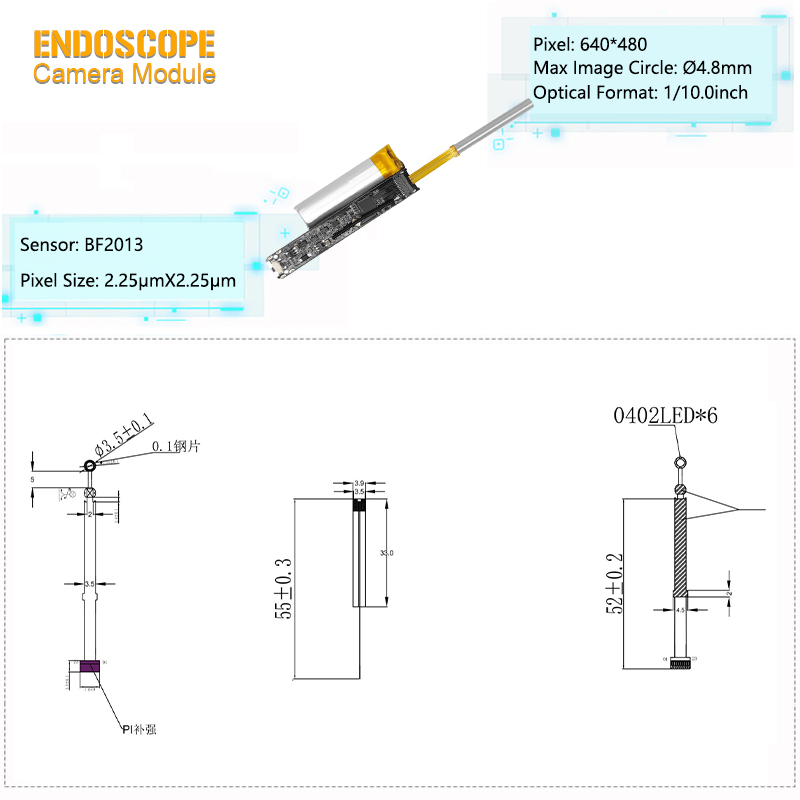

The configuration of six 0402-packaged LEDs reflects a dual response to illumination demands and spatial constraints in macro imaging scenarios. The 0402 package (0.4 × 0.2 mm metric) represents the smallest LED specification currently scalable for endoscope front-end applications. Arranging six LEDs on a probe end face under 3 mm requires high-density mounting techniques and strict control of gold wire arc height.

While this illumination solution's radiant flux falls short of external cold light sources, its illuminance sufficiently meets imaging requirements within ultra-close working distances ranging from 5 to 30 millimeters. More critically, the spatial relationship between the illumination optical axis and the imaging optical axis is pivotal: the annular symmetrical layout minimizes shadowed areas and suppresses the common phenomenon of central overexposure and peripheral underexposure in tubular scenarios.

Thermal management must be evaluated. While individual 0402 LEDs consume only tens of milliwatts, six operating simultaneously within a sealed metal tube creates significant heat accumulation that cannot be ignored. Although the module datasheet does not specify recommended continuous operating times for the LEDs, designers should conduct thermal simulations or field testing during system integration. Where necessary, incorporate PWM dimming or automatic brightness attenuation mechanisms at the software level to ensure front-end temperature rise remains within contact safety limits (typically 43°C).

V. Power Consumption Characteristics and Compatibility with Battery-Powered Systems

The combination of 56mW active power consumption and 30μA standby power consumption represents the core differentiating feature of this module compared to general imaging solutions. Taking a typical handheld device powered by a 500mAh battery as an example:

- If the imaging system operates continuously, the 56mW current draw (approximately 18.7mA @ 3V) supports about 26 hours of continuous operation. When used intermittently (e.g., 30-second inspections per session), battery life extends to hundreds of operations.

The 30μA standby power enables devices to remain in a “wake-on-demand” state without physical power switches. For personal care devices like stethoscopes or otoscopes requiring rapid response, this feature significantly enhances user experience while keeping static standby power below battery self-discharge rates.

The power efficiency advantage stems from the BF2013 sensor's architectural design. Its low-power analog circuitry, optimized readout timing, and configurable clock management mechanisms collectively achieve milliwatt-level power consumption while maintaining full-resolution output at 30fps. Designers should note that these power consumption figures are measured under nominal supply voltages (AVDD 2.8V/IOVDD 1.8V) and typical operating modes. Actual system power consumption will be influenced by line impedance, regulator efficiency, and interface load, necessitating real-world calibration during prototyping.

VI. Selection Decision Framework and Validation Recommendations

Based on the above analysis, the recommended selection decision path is as follows:

First, define the imaging task qualitatively. Determine whether the core application requires qualitative observation or quantitative measurement. For qualitative tasks like oral mucosa color assessment, ear canal cleanliness evaluation, or skin texture analysis, 300k resolution is sufficient. If measuring lesion dimensions or calculating areas, incorporate calibration algorithms and assess measurement uncertainty for pixel-to-physical-dimension mapping.

Second, calibrate the working distance. Measure the working distance distribution in typical application scenarios to confirm it falls within the optimized range of the optical system. It is recommended to capture a resolution test chart on a simulated fixture to evaluate changes in center/edge field resolution within the 20 to 40 mm distance range.

Third, verify illumination performance. Capture a standard whiteboard in complete darkness to assess illuminance uniformity; test on a scattering medium simulating tissue reflectance characteristics to evaluate texture reproduction capability; Continuously illuminate LEDs while monitoring module housing temperature to validate thermal design margin.

Fourth, electrical integration adaptation. Verify compatibility between AVDD/IOVDD power requirements and host system power architecture; validate DVP interface timing with host controller video input compatibility, paying particular attention to pixel clock polarity, sync signal levels, and data alignment methods.

Fifth, environmental and reliability testing. Conduct 24-hour aging tests at upper and lower operating temperature limits (-20°C/60°C), monitoring image quality and frame rate stability. For portable device applications, add a 1.2-meter drop test to validate FPC connector and solder joint reliability.

Conclusion

Selecting a 300k-pixel macro imaging module fundamentally involves translating highly specific application constraints into verifiable technical specifications. Its value lies not in individual parameter leadership, but in finding the optimal combination across multiple dimensions—resolution, pixel size, interface type, power consumption, and lighting configuration—to best match scenarios demanding close proximity, confined spaces, low power consumption, and cost efficiency. Successful selection stems from clear answers to fundamental questions about the target application: “What is the imaging subject?”, “What is the working distance geometry?”, “Is ambient light present?”, and “What is the power supply margin?”. When specifiers can reverse-engineer the rationale behind specifications like 640×480 resolution, 2.25-micron pixels, DVP interface, and six LEDs based on these answers, the process elevates from passive specification comparison to proactive system architecture definition—a true mark of professional practice.
