Side-View 0.9mm Ultra-Thin Bore Endoscope Imaging Module Selection Recommendations

Side-View 0.9mm Ultra-Thin Bore Endoscope Imaging Module Selection Recommendations

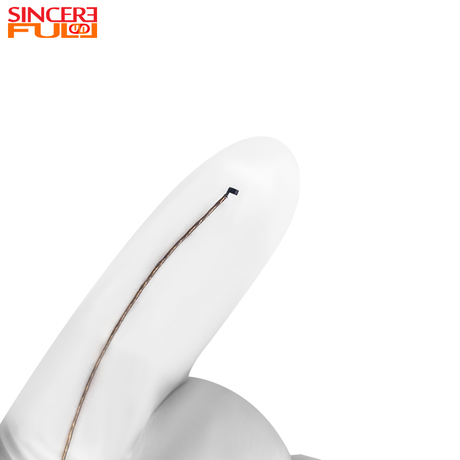

In precision industrial inspection and minimally invasive observation applications, visual system selection decisions often begin with defining the physical aperture limits. When the observation channel diameter falls below 1 millimeter and requires sidewall or right-angle viewing, traditional front-view endoscopes face inherent limitations due to their forward-facing lens layout. The emergence of side-view lens modules offers a new technical pathway for such scenarios, but their selection must be grounded in a deep understanding of the interplay between optical characteristics, mechanical constraints, and application scenarios.

I. Physical Significance of Side-View Optical Layout and Observation Mode Reconstruction

The core value of side-view lens design lies in rotating the imaging optical axis 90 degrees from the probe axis, enabling the sensor to receive light from the probe's side. This structural innovation fundamentally alters the observation paradigm: observers no longer need to position the probe tip directly against the target surface. Instead, they can perform scanning imaging of side walls in a direction parallel to the observation plane. This design is particularly suited for inspecting circumferential corrosion on pipe inner walls, examining raceway conditions in miniature bearings, or investigating parallel gaps within precision equipment.

However, the side-view design introduces unique technical trade-offs. Light path efficiency suffers approximately 10%-15% loss due to light deflection via prisms or mirrors. Concurrently, image sensors are typically positioned radially on the probe, requiring the probe housing to incorporate optical glass or high-transmittance resin windows in the lens area. The cleanliness and wear resistance of these windows directly impact long-term imaging stability.

II. Optical Performance Boundaries in Ultra-Fine Diameter Packaging

The 0.9-millimeter lens diameter packaging represents the cutting edge of current ultra-fine endoscope manufacturing technology. At this scale, optical design necessitates the use of single aspheric lenses or highly simplified lens group structures. The F2.8 aperture value carries dual implications in this context: On one hand, its relatively large light-transmitting aperture helps compensate for efficiency losses caused by optical path bends, improving image signal-to-noise ratio. On the other hand, it also implies a compressed depth of field range—calculations based on optical formulas suggest that within a working distance of 3-30 mm, the depth of field may only be on the order of 1-2 mm.

This imposes precision requirements on user operation. The imaging system must capture target details within an extremely shallow focal plane. Any significant surface irregularities or axial probe vibration during observation can cause image defocusing. Therefore, when evaluating such modules, beyond examining their nominal resolution and field of view, it is crucial to verify their actual depth of field performance at typical working distances through real-world testing, along with the effectiveness of image stabilization systems (e.g., digital image stabilization).

III. Contextual Adaptation Assessment of Resolution

A 160,000-pixel (400×400) image resolution is often considered a baseline specification in consumer electronics. However, within the specialized field of ultra-fine-diameter endoscopic observation, this parameter requires reassessment in conjunction with sensor size and pixel density. Achieving this resolution on sensors of 1/15 inch or smaller typically compresses pixel size to approximately 1 micron, posing challenges for low-light imaging performance. Fortunately, the OCHTA10 sensor optimizes its microlens structure and photodiode design to maintain usable low-light response.

This resolution level suffices for qualitative observation tasks, such as identifying deposits on pipeline inner walls, confirming the open/closed status of microvalves, or locating misaligned electronic components. However, for quantitative measurements—such as precisely assessing pitting depth or crack width—calibration algorithms must be implemented. It is crucial to recognize that measurement accuracy is constrained by the actual physical dimensions corresponding to each pixel: at a 30mm working distance, the object-side size per pixel is approximately 75 micrometers.

IV. Key Dimensions for System Integration and Reliability Validation

The selection of the Micro USB-5P interface reflects a balance between industrial integration convenience and connection reliability. This interface offers superior mechanical strength and insertion/removal endurance compared to smaller connectors, while its standardized nature reduces custom cable costs. Standard UVC protocol support ensures plug-and-play compatibility with most modern operating systems, which is crucial for developing rapidly deployable inspection tools.

The reserved LED driver pins (LEDA/LEDK) represent an often-underestimated yet vital feature. Integrating illumination units within ultra-fine-diameter probes is extremely challenging, making external light sources or fiber-optic light guidance common solutions. These reserved pins enable users to either integrate miniature LEDs at the probe tip or connect external light controllers based on specific applications, facilitating observations in completely dark environments.

Reliability validation should extend beyond standard environmental testing. For such ultra-fine-diameter modules, particular attention must be paid to their resistance to bending fatigue. The connection point between the cable and the module body is a stress concentration point prone to failure during repeated bending. During the selection process, it is recommended to request cable bend life test data from suppliers or conduct endurance testing simulating operational conditions.

V. Recommended Module Selection Decision Process

A systematic selection decision can follow these steps:

Phase 1: Clarify Requirements and Constraints

Define minimum passable aperture, path bending radius, and target observation orientation (sidewall or end face).

Define core observation tasks: qualitative inspection, defect localization, or quantitative measurement.

Assess ambient lighting conditions and supplementary lighting feasibility.

Phase 2: Technical Parameter Mapping and Trade-offs

Confirm the module's outer diameter (including protective sheath) is smaller than the channel's minimum inner diameter, while maintaining a safety margin.

Calculate the required field of view and resolution based on target size and working distance.

Assess shallow depth-of-field requirements for operational stability and determine if auxiliary positioning mechanisms are needed.

Phase Three: Integration and Validation

Verify electrical and mechanical compatibility between module interfaces and host devices (e.g., handheld controllers, image processors).

Obtain engineering samples to test imaging clarity, color fidelity, and temperature rise during prolonged operation in real or simulated environments.

Conduct boundary condition testing for critical scenarios (e.g., maximum observation depth, darkest environments).

Conclusion

Selecting a side-viewing ultra-thin endoscope module fundamentally involves a precise balancing act between the interdependent factors of “accessibility,” “visibility,” and “system complexity.” It is not a generic visual sensor but an optical probe specifically optimized to overcome constraints in specific physical spaces. Its technical value lies not in exceptional specifications on a datasheet, but in opening new observational possibilities in dimensions where conventional imaging methods fail. Successful selection stems from accurately identifying the primary challenge within the observation scenario—whether spatial constraints, resolution requirements, or lighting conditions—and choosing the technical path offering the optimal compromise for that challenge. In this specialized field, deep understanding of the application context often outweighs mere comparison of technical specifications.
