Technical Trade-offs and Application Adaptation Analysis for Selecting 0.9mm Ultra-Compact Visual Probe Modules

Technical Trade-offs and Application Adaptation Analysis for Selecting 0.9mm Ultra-Compact Visual Probe Modules

In industrial inspection, equipment maintenance, and scientific observation, selecting visual systems often faces a fundamental contradiction: the conflict between observation invasiveness and information integrity. When the aperture size of the inspected object shrinks to the sub-millimeter level, or the observation path exhibits complex curved forms, the physical dimensions of traditional vision modules become an insurmountable obstacle. At this juncture, the core logic of selection must shift from pursuing high resolution and rich functionality to achieving the most fundamental visualization capabilities under extreme spatial constraints. This paper aims to analyze the applicability boundaries and selection considerations for a class of ultra-compact camera modules featuring a lens diameter as small as 0.9 millimeters.

I. Core Constraint: Physical Dimensions as the Primary Screening Criterion

The selection process begins with precise measurement of the minimum inner diameter of the observation channel and assessment of the path's bending radius. The value of a 0.9-millimeter lens assembly lies not only in its own dimensions but also in its ability to encapsulate the entire imaging front-end within a probe measuring approximately 1.5 to 2.0 millimeters in diameter. This quantitative standard defines the absolute applicability boundary for such modules: any channel with an inner diameter smaller than this value, or any path where the bending radius is too small for a rigid probe to pass, necessitates alternative solutions such as fiber optic mirrors.

Worthy of further discussion is the optical trade-off for such miniaturization. To reduce the lens diameter to 0.9 mm, optical designs typically employ single aspheric lenses or simplified lens group structures, which inevitably limit their ability to correct aberrations. Therefore, specifiers should establish realistic expectations for imaging quality: its core value lies in “detection” and “identification”—confirming the presence of foreign objects within pipes and observing surface damage or corrosion—rather than high-precision dimensional measurement or microscopic morphology analysis.

II. The Coupling Relationship Between Field of View and Working Distance

A 120° wide-angle field of view holds dual significance in such applications. On the positive side, it substantially expands the lateral wall area covered in a single imaging pass. When advancing deep into pipelines, only minor thrusting or rotation is required to rapidly scan the circumferential environment, significantly boosting inspection efficiency. However, the wide-angle design also implies a shorter focal length and shallower depth of field. While clear images are achievable when the module is pressed against the observed surface, images may quickly lose focus when observing targets at a distance (e.g., several centimeters deep within a pipe).

This necessitates selecting a model closely aligned with specific operational modes. For surface-level scanning inspections (e.g., circuit board solder joint observation), the wide field of view offers clear advantages. For assessing conditions deep within pipelines, one must evaluate whether the depth of field sufficiently covers the anticipated working distance range or if a mechanical focusing mechanism is required—the latter increasing system complexity and cost.

III. Re-evaluating Resolution Requirements

A 160,000-pixel (400×400) sensor configuration is often misinterpreted as underpowered. Its adequacy must be assessed within specific application contexts. In industrial pipeline inspection, core requirements typically involve determining “blockage presence” or “severe corrosion existence”—macroscopic state changes that do not necessitate high resolution for identification. Conversely, lower pixel counts imply smaller frame data volumes, offering two potential advantages: First, it enables higher frame rates within the constraints of USB 2.0 bandwidth, resulting in smoother observation. Second, it reduces decoding and display demands on the backend processor, allowing the system to operate on lower-power embedded platforms.

The sensor's pixel size of 1.008μm²—a relatively large design—typically enhances individual pixel light sensitivity, positively impacting signal-to-noise ratio in low-light conditions. Since ultra-fine probes cannot integrate effective supplementary light sources internally, imaging relies on ambient diffuse reflection light. Under such conditions, the sensor's low-light performance becomes particularly critical.

IV. Hidden Costs in System Integration and Reliability

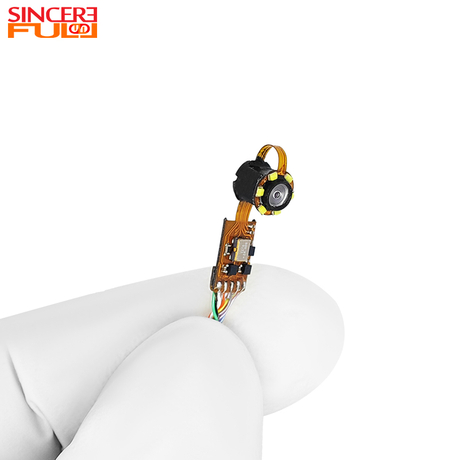

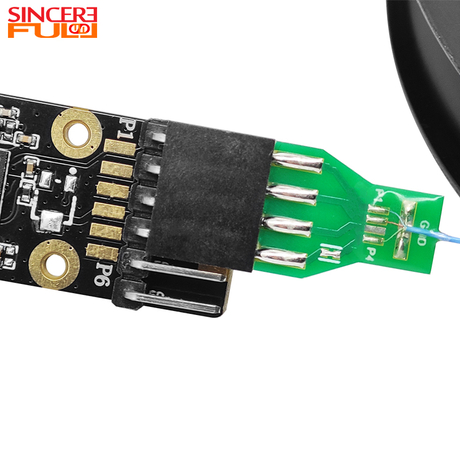

The standard 2.5-meter transmission cable length is not arbitrary. It reflects consideration for typical application scenarios, allowing operators to control the probe from a safe or convenient distance. However, longer cables introduce risks of signal attenuation and electromagnetic interference, placing demands on the module's signal drive capability and shielding design. While standard USB interfaces and 6-pin connectors simplify electrical integration, selection must confirm whether the host device's interface location and space permit smooth connector insertion/removal.

Regarding mechanical reliability, the ±0.1mm dimensional tolerance specified in the datasheet is fundamental for ensuring stable compatibility with precision fixtures or drive mechanisms. For applications involving repeated insertion and potential minor bending stress, key evaluation points include:

- Mechanical reinforcement at the connector-cable junction

- Cable flexibility and abrasion resistance

These characteristics often determine actual product lifespan more than theoretical specifications.

V. Selection Framework and Validation Recommendations

Based on the above analysis, establish the following selection pathway:

Feasibility Assessment: First confirm whether the minimum clearance of the observation path exceeds 1.5 mm (including protective outer sheath) and whether the bending is gradual. This is a prerequisite for technical feasibility.

Functional Matching Evaluation: Determine whether the core objective is qualitative observation or quantitative measurement. For the former, this module can meet basic requirements; for the latter, specialized models with higher resolution or optical distance measurement capabilities must be sought.

Environmental Adaptability Verification: Assess illumination conditions in the observation environment. If the environment is completely dark, an external miniature LED illuminator must be added. Confirm whether the module reserves corresponding drive interfaces (e.g., positive and negative LED pins as specified in the specifications).

System Integration Testing: Obtain samples for field testing, focusing on verifying: image clarity at maximum working distance; Signal stability when cables are fully extended; and compatibility between the module and existing drive mechanisms and image processing software.

Conclusion

In essence, selecting such ultra-compact camera modules involves accepting a carefully balanced technical solution. It sacrifices resolution, complex optical correction, and advanced functionality to gain basic visualization capabilities in microscopic spaces where conventional vision systems are utterly ineffective. The key to successful selection lies in precisely identifying “see-and-solve” application scenarios—where image information density is not paramount, and the very accessibility of information constitutes its value. Decision-makers should avoid evaluating it through the lens of general-purpose cameras. Instead, it should be regarded as a specialized “optical probe,” whose value can only be fairly assessed and effectively leveraged within the specific framework of spatial constraints and functional requirements.
