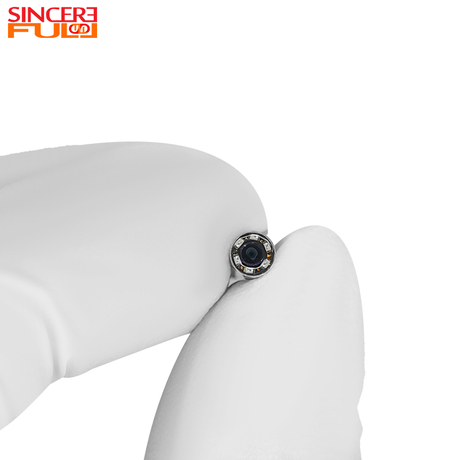

Within an endoscope camera module, LED dimming strategy influences not only luminous intensity but also exposure stability, thermal behavior, and overall imaging fidelity. The distinction between hardware dimming and software dimming should therefore be interpreted as a structural differentiation in control hierarchy—whether illumination is regulated at the electrical source or compensated within the image processing pipeline.
Hardware dimming is typically implemented through constant-current drivers or MCU-controlled PWM circuits, which directly modulate LED current amplitude or duty cycle. Because luminous flux is adjusted at the emission source, the optical signal incident on the image sensor is physically altered.
This approach provides two primary advantages. First, dynamic range utilization is improved, since excessive illumination is prevented before saturation occurs. Second, response latency is minimal, being limited mainly by driver circuit performance rather than image-processing loops. In medical endoscopy, where rapid motion and reflectivity changes are common, such deterministic control enhances image stability.
However, hardware dimming increases circuit complexity and thermal load, particularly in miniature modules where PCB real estate and heat dissipation capacity are constrained. If inadequately engineered, the driver circuitry itself may introduce EMI or localized heating.
Software dimming does not directly alter LED output; instead, brightness is adjusted via automatic exposure control, gain modulation, or ISP-based tone mapping. In simplified architectures, LED output remains constant while sensor parameters are dynamically optimized.
The primary advantage lies in structural simplicity. Reduced hardware requirements lead to lower BOM costs and simplified assembly, which may be advantageous in disposable or cost-sensitive devices.
Nevertheless, from a photometric perspective, this method cannot eliminate overexposure at the source. If incident light exceeds the sensor’s full-well capacity, highlight information is irretrievably lost. Moreover, high gain settings amplify noise alongside signal, potentially degrading image clarity.
Thus, software dimming should be understood as signal-level compensation rather than true illumination control.
From a systems engineering standpoint, neither method can be universally deemed superior. Hardware dimming is advantageous when dynamic range and exposure integrity are prioritized. Software dimming offers cost efficiency and structural simplicity.
In advanced endoscopic systems, hybrid strategies are frequently adopted. Large-scale illumination changes are managed through hardware current control, while fine-grained adjustments are performed algorithmically. Such integration enables stable performance across variable anatomical environments, where reflectivity and working distance may fluctuate unpredictably.
In endoscope camera modules, hardware dimming provides physically grounded illumination control with rapid response and improved exposure stability, whereas software dimming offers implementation simplicity and cost advantages through algorithmic compensation. Rather than representing competing paradigms, these approaches function as complementary control mechanisms whose optimal deployment depends on system-level design priorities.
