SF-C016USB-D0.9-Side
SINCEREFIRST

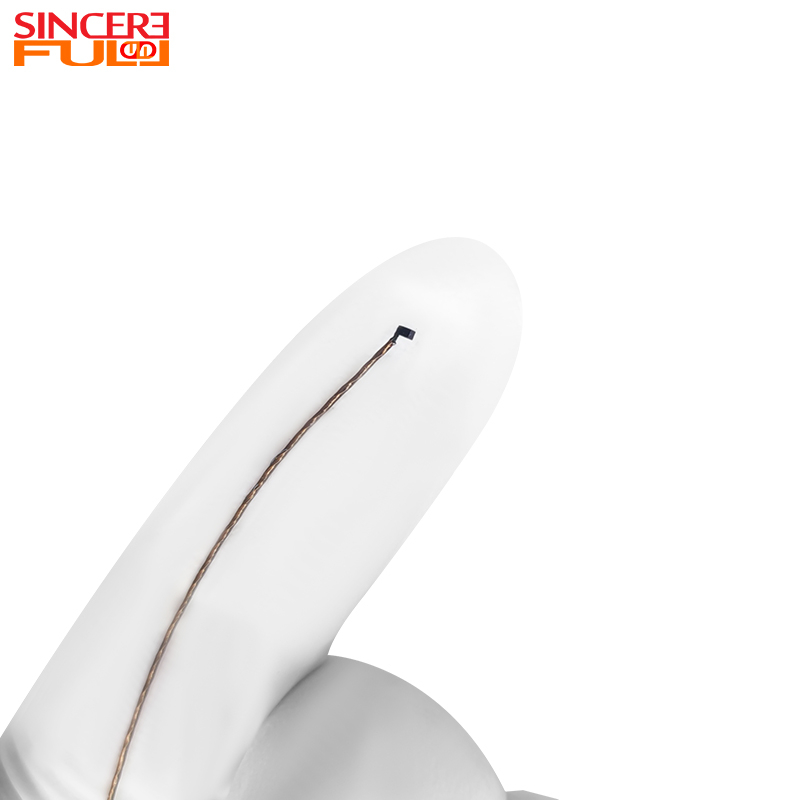

The 0.9mm OCHFA10 USB Side-View Endoscope Camera Module (Model: SF-C016USB-D0.9-Side) is a cutting-edge ultra-fine imaging device developed by SINCEREFIRST. It is equipped with the specialized OCHFA10 sensor and a high-strength optical plastic lens with a special coating process. The module features an innovative 90° lateral imaging structure, a 0.175mm ultra-fine focal length, and a 3-30mm intelligent zoom range. With an ultra-small 0.9mm diameter probe, it can penetrate into extreme narrow spaces that traditional endoscopes cannot reach. The plug-and-play USB2.0 interface ensures compatibility with Windows, macOS, Linux, and Android systems. It is a high-precision inspection tool tailored for scenarios requiring microscopic defect detection and long-distance observation, such as precision manufacturing, minimally invasive surgery, and engine internal inspection.
The 0.9mm ultra-thin diameter probe is the core advantage of this module, with a basic tolerance of only ±0.1mm. It can easily enter tiny gaps such as semiconductor chip gaps, ear canals, and fuel injector nozzles. This feature breaks through the limitations of traditional inspection equipment, enabling visual inspection of previously inaccessible areas and providing a reliable solution for ultra-precision inspection tasks.
The unique 90° lateral imaging structure allows the module to capture side-view images of the inspected object, which is especially suitable for detecting circumferential defects of pipes and components. The 0.175mm ultra-macro focusing accuracy can clearly identify hairline-level microscopic defects, meeting the strict requirements of precision manufacturing fields such as semiconductor packaging and circuit board production for defect detection.
Adopting a high-strength optical plastic lens with a special coating process, the module achieves a perfect balance between durability and imaging quality. The lens has excellent impact resistance and scratch resistance, adapting to harsh working environments such as industrial workshops and medical operating rooms. Meanwhile, the special coating enhances light transmittance, ensuring clear and sharp imaging effects. The lightweight lens also reduces the overall weight of the probe, making operation more flexible.
The USB2.0 interface with a Mini USB-5P connector supports plug-and-play functionality across multiple mainstream operating systems. Users do not need to install complex drivers, which can save a lot of time in equipment debugging. This cross-system compatibility makes the module suitable for various application scenarios, whether it is connected to a desktop computer in a factory or a portable device in a hospital.
Parameter | Details |
Product Name | Side-view Endoscope Camera Module |
Basic Tolerance | ±0.1mm |
DSP | USB2.0 |
Image Sensor | OCHFA10 |
Focusing Range | 3-30mm |
Focal Length | 0.175mm |
F Number | 4.5 |
FOV(H*V) | 100°*100° |
TV Distortion | < -11% |
Connector | Mini USB-5P |
With 0.175mm ultra-high imaging accuracy, this module can identify tiny defects such as solder joint cracks, circuit board shorts, and component misalignment. It is widely used in precision manufacturing fields such as semiconductor production, chip packaging, and electronic component testing. It helps manufacturers improve product quality and reduce the rate of defective products.
The 0.9mm ultra-fine probe can enter the body's natural cavities such as the ear canal and nasal cavity without causing excessive trauma to patients. It assists doctors in conducting accurate diagnosis and surgical navigation, such as observing the internal conditions of the ear canal to diagnose otitis media, or guiding minimally invasive operations in the nasal cavity. It improves the safety and accuracy of surgery and shortens the patient's recovery time.
The 3-30mm intelligent zoom range enables flexible inspection of key engine components such as fuel injectors and turbine blades. It can detect potential problems such as carbon deposits, corrosion, and blade wear in the engine in advance, providing a visual basis for engine maintenance. It helps extend the service life of the engine and reduce maintenance costs.
To ensure the stable operation of this module, the connected device needs to have a USB2.0 or higher interface, and a processor with a clock speed of at least 1.5GHz. It is compatible with Windows 7/10/11 (32/64-bit), macOS 10.12+, and Linux distributions with UVC support. We recommend that the device has at least 2GB of RAM and 500MB of storage space to ensure the smooth operation of the accompanying software.
The main control unit of the module is not waterproof, but we provide an optional IP67-rated waterproof casing for the detachable probe (sold separately), which can be used in wet environments such as pipeline internal water testing. For dusty environments, we recommend using the dedicated protective rubber sleeve accessory. It can prevent dust particles from entering the module while maintaining the full functionality of the probe. In addition, the built-in LED lighting system of the module is sealed, which can operate normally in wet and dusty environments.
Yes, the brightness of the built-in LED lighting system can be adjusted according to the actual inspection environment. You can adjust the lighting brightness through the operation interface of the connected device, or directly through the control buttons on the module (if equipped). This function allows the module to maintain clear imaging effects in different light conditions, whether in dark internal spaces or bright outdoor environments.
Are you in need of an ultra-precision side-view endoscope camera module for precision manufacturing, medical surgery, or engine inspection? The 0.9mm OCHFA10 USB Side-View Endoscope Camera Module can meet your strict requirements. With its ultra-fine probe, high-precision imaging, and durable performance, it is a powerful tool to improve your inspection level. Inquire now to get professional technical solutions and preferential prices! You can also add to basket to place an order directly. We support customized services such as waterproof and dustproof processing to meet your personalized needs. Contact us immediately and experience the convenience of ultra-precision inspection!
