What size are typical endoscope camera modules?

Introduction
If you're designing something that needs to see into tight spaces—a medical scope, an industrial inspection tool, or even a DIY gadget—size is everything. The camera module has to fit through whatever opening you have. Too big, and it won't go where it needs to. Too small, and you might not get the image quality you need. So what sizes are actually out there? This article explains typical endoscope camera module dimensions and how to choose the right one.

Why Size Matters
Endoscope cameras go where human eyes can't. They have to fit through narrow passages—blood vessels, engine cylinders, pipes, or tiny access holes. The camera head diameter is usually the most critical number. Length matters too, but diameter is what determines whether the scope can even get in.

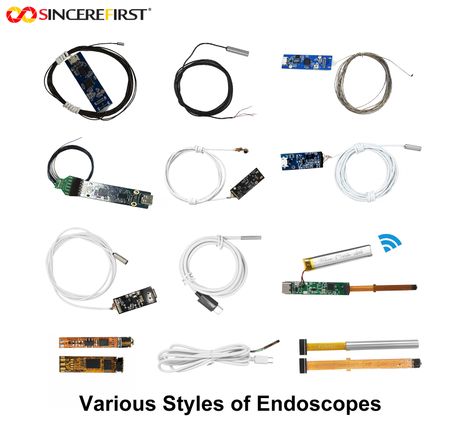

Size Categories

1. Ultra-Miniature: Under 2mm
The smallest endoscope modules are used in medical applications like cardiology and microsurgery. These can be as tiny as 0.6mm to 1.9mm in diameter. At this scale, the sensor is extremely small—often just a few hundred thousand pixels—because there's no room for anything bigger.

These are used for:

• Medical procedures through blood vessels or bile ducts

• Micro-surgery

• Inspecting tiny components like fuel injectors

A mini camera endoscope at this size requires precision manufacturing. The lens, sensor, and LEDs are stacked with micron-level accuracy. Most of these are custom-built.

2. Small: 2mm to 4mm
The 2mm to 4mm range is where most professional endoscopes live. This size balances smallness with decent image quality. Resolutions range from VGA (640×480) to 1080p HD.

Common uses:

• Medical arthroscopy (joints) and laparoscopy (abdomen)

• Industrial borescopes for engines and turbines

• Automotive inspection

Many industrial inspection camera systems use modules in this range. A typical cmos module camera might be 3.9mm in diameter—a common standard for automotive and industrial borescopes.

3. Medium: 4mm to 8mm
Modules in this range are common in consumer and semi-professional endoscopes. They can fit larger sensors and brighter LEDs, so image quality is better.

Applications:

• USB endoscope cameras for home inspection and plumbing

• General industrial inspection

• Veterinary endoscopy

A usb endoscope camera often has a 5.5mm or 7mm camera head. These are popular because they balance cost, image quality, and accessibility. Many module camera products for consumers fall into this category.

4. Large: 8mm and Above
Larger modules are used when image quality matters more than access space. They can include high-resolution sensors (up to 4K), multiple LEDs, and even articulating mechanisms.

Used for:

• High-end medical endoscopy where image detail is critical

• Rigid surgical endoscopes

• Specialized industrial inspection where resolution matters most

Some endoscope camera module manufacturer companies offer standard modules at 10mm, 12mm, or larger. These are less common in portable tools but used in surgical and fixed systems.

What Determines Module Size?

Sensor Size
The sensor is usually the biggest component. Larger sensors generally mean better image quality because they have bigger pixels that capture more light. But they also make the module bigger. A cmos module camera with a 1/4-inch sensor (about 4mm diagonal) fits in a 5-6mm diameter module. A 1/2-inch sensor needs more space.

Lens Assembly
The lens system also takes up room. Wide fields of view or long depth of field may require multiple lens elements. More elements mean longer modules. Autofocus mechanisms add both length and diameter.

Illumination
LEDs take up space around the lens. More LEDs mean brighter light but a larger diameter. Some designs use fiber optic light guides instead, which keep the head smaller but need an external light source.

Cable Connection
The cable attaches to the back of the module. Cable thickness affects overall size, especially for flexible scopes where the cable seals to the head. Thicker cables are more durable but need larger sealing points.

Housing and Sealing
The protective housing adds thickness. Medical modules need hermetic seals for sterilization. Industrial modules need waterproofing (IP67 or IP68). Consumer modules may have simpler, thinner housings.

Size vs. Image Quality
There's a trade-off. Smaller modules have smaller sensors, which means:

• Lower resolution

• Worse low-light performance

• Less detail

If you're building a mini camera endoscope for applications where size is critical—like medical procedures through tiny incisions—you accept lower image quality. If image detail matters more—like documenting pipeline corrosion—you use a larger module.

Common Standard Sizes

A usb endoscope camera for home use often has a 5.5mm or 7mm head. It's big enough for decent sensors and bright LEDs, but small enough to fit through drains and spark plug holes.

Custom vs. Standard
When sourcing from an endoscope camera module manufacturer, you have two options:

Standard modules come in common sizes (like 3.9mm, 5.5mm, 7mm). They're ready to ship, less expensive, and faster. But they may not fit your exact needs.

Custom modules can be built to any size you need. A mini camera endoscope for a specialized medical device might need a non-standard diameter to fit a specific access port. Customization lets you optimize size, performance, and cost.

How to Choose
When picking a module, ask yourself:

1. What's the smallest opening it needs to go through? Measure it. The module diameter must be smaller.

2. What image quality do you need? Better quality needs larger sensors, which mean larger modules.

3. What's the environment? Waterproofing adds thickness. Medical sterilization may add housing bulk.

4. What's your budget? Smaller modules with high resolution are more expensive. A cmos module camera in the 2-3mm range costs significantly more than a 5.5mm module with similar resolution.

Summary
Endoscope camera modules come in sizes from ultra-miniature 1mm medical scopes to 10mm+ rigid surgical cameras. Your choice depends on access space, image quality needs, and environment.

• Under 2mm: Medical micro-endoscopy, precision industrial

• 2mm–4mm: Professional borescopes, medical arthroscopy

• 4mm–8mm: USB endoscopes, general inspection, plumbing

• 8mm+: High-end medical, rigid scopes, specialized applications

Whether you need a usb endoscope camera for home use, an industrial inspection camera for factory maintenance, or a custom module camera from an endoscope camera module manufacturer, understanding these sizes helps you choose right. A cmos module camera can be built in almost any size, and a mini camera endoscope can be custom-tailored to your exact specs.

At Sincere, we manufacture endoscope camera modules in various sizes and offer custom design. With over 30 years of experience, we can help you find or build the right module. Contact us to discuss your needs.
