OV9734 Endoscope Camera Module Selection Recommendations

OV9734 Endoscope Camera Module Selection Recommendations

I. Core Parameter Interpretation and Matching Guide

1. Optical System Evaluation

Field of View: 110° ultra-wide-angle design suits applications requiring extensive observation, such as laparoscopic examinations and full-scene scanning of pipe interiors

Focus Performance: Continuous focus range of 10-100mm covers close-range inspection and mid-range observation needs, ideal for environments with variable working distances

Optical Quality: F4.0 aperture combined with <20% distortion control ensures sufficient light intake while delivering highly accurate image reproduction

2. Sensor Characteristic Analysis

Core Features of the OV9734 Sensor:

1/4-inch optical format

Supports 720p/30fps or 1080p/15fps output

Low-power design ideal for portable devices

Integrated image signal processor

II. Application Scenario Compatibility Analysis

Primary Applications:

Medical Diagnostic Equipment

Minimally invasive surgical assistance systems

Dental examination devices

ENT endoscopes

Suitable for medical applications requiring moderate real-time performance and wide-angle field of view

Industrial Inspection Systems

Pipe interior inspection (diameter >20mm)

Internal visualization inspection of mechanical components

Online quality monitoring in manufacturing

Suitable for inspection requirements with working distances between 5-80mm

Secondary Application Scenarios:

Educational and research demonstration equipment

Automotive maintenance inspection tools

Security monitoring requiring specialized angles

III. Technical Selection Considerations

Key Evaluation Factors:

Resolution Requirements:

If resolutions exceeding 1080p are needed, alternative sensor solutions must be selected

720p/30fps meets most real-time observation needs

Mechanical Size Constraints:

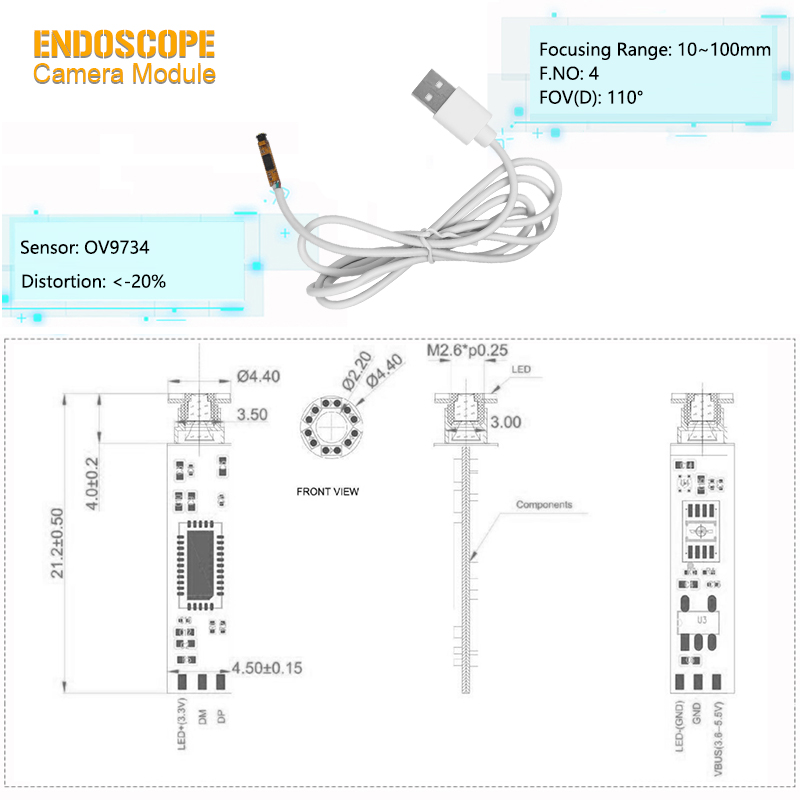

Front-end diameter: 4.50±0.15mm; installation space must be verified

M2.6×0.25 threaded interface; matching connection mechanism required

Electrical Interface Compatibility:

Power supply range: 3.8-5.5V; power system compatibility must be verified

Interfaces include DMI and DP; evaluate compatibility with host controller chip

Illumination system integration:

Built-in 3.3V LED driver, suitable for integrated lighting systems

Consider heat dissipation and power management

IV. Inapplicable Scenarios

Not recommended for scenarios requiring:

Ultra-high resolution: Requires 4K or higher resolution imaging

Extreme size constraints: Installation space diameter < 4.3mm

High-speed motion capture: Requires frame rates exceeding 60fps

Professional measurement applications: Requires distortion control below 1%

Long-range observation: Working distance exceeding 100mm

V. Integration Recommendations

Hardware Integration Key Points:

Structural Design: Reserve sufficient thermal clearance; avoid mechanical stress on lens components

Power Design: Ensure power supply ripple <100mV; recommend adding filter circuits

Signal Integrity: DMI/DP signal cable length should not exceed 30cm

Waterproofing Requirements: If waterproofing is needed, incorporate sealing solutions during housing design

Software Adaptation Recommendations:

Driver Support: Verify host platform supports OV9734 drivers

Image Processing: Implement distortion correction optimization based on output images

Exposure Control: Implement auto-exposure algorithms to adapt to varying lighting conditions

VI. Alternative Solution Recommendations

If this module does not fully meet requirements, consider:

Higher resolution: OV9782 (2MP) series

Smaller size: 1.8mm diameter micro module

Lower distortion: Custom optical lens module

Waterproofing requirements: IP67-rated industrial endoscope modules

VII. Procurement and Validation Recommendations

Sample testing: Procure samples for real-world scenario testing

Key validation items:

Image clarity at actual working distances

Imaging performance under varying lighting conditions

Long-term operational stability

Integration compatibility with existing systems

Prior to bulk procurement: Confirm delivery lead times and technical support capabilities

In Summary：

This module is suitable for medium-resolution, wide-angle, medium-to-close-range endoscopic inspection applications, offering good cost-performance in medical diagnostics and industrial inspection. When selecting, prioritize evaluating actual working distance, resolution requirements, and mechanical mounting conditions. Sample testing is recommended to validate performance in actual application environments.
