In precision electronics repair, industrial micro-hole inspection, and medical shallow cavity observation, imaging systems must simultaneously achieve “clear vision” and “full coverage” within limited spaces. When inspection distances are concentrated in the 30–50mm range and target details require micron-level recognition, a USB endoscope module featuring 2MP 1080P resolution, ring LED fill light, and precise 30–50mm focus becomes a professional solution worth evaluating. This article provides a clear selection framework from four dimensions—resolution and frame rate, optical focus, illumination design, and interface compatibility—while incorporating key terms such as micro endoscope camera module, medical endoscope camera module, cmos module camera, endoscope camera module, and GC2755 Sensor to help you precisely match medium-short distance precision inspection needs.
First step: Evaluate the requirements for detail resolution and dynamic smoothness.

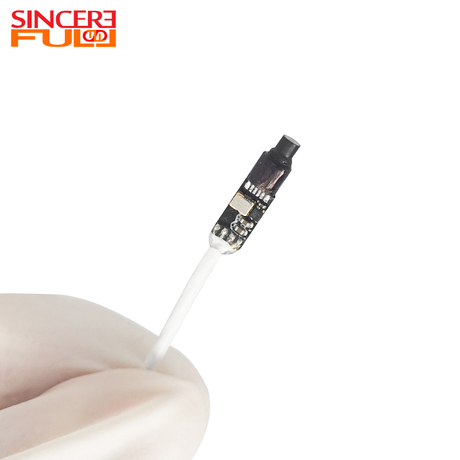

This module incorporates the GC2755 Sensor with 1920×1080 (2MP) effective pixels, outputting stable 30fps real-time images over USB 2.0. As a representative cmos module camera, the engineering value of this parameter combination lies in:
1080P resolution clearly reveals 0.1mm-level micro-scratches, solder joint cracks, or foreign particles, meeting precision electronics repair and industrial defect identification needs.
30fps ensures smooth画面 when moving the probe, avoiding motion blur that could lead to misjudgment, especially suitable for handheld scanning.
Compared to 4K solutions, 2MP maintains sufficient detail while reducing host processor decoding burden and power consumption, making it ideal for embedded system integration.
When selecting, assess: If the inspection target is only macroscopic blockages or obvious damage (e.g., large foreign objects in pipes), lower resolution may suffice; but for identifying fine defects on precision components, 1080P is a necessary threshold.
Second step: Confirm whether the typical working distance falls within the 30–50mm range.
The optical system of this module is specially optimized for 30–50mm medium-short distance inspection, with a focal length of 2.63mm and DFOV of 60°. The engineering significance:
30–50mm covers most endoscope inspection scenarios, from smartphone motherboard repair (~30mm) to industrial pipe wall inspection (~50mm).
The fixed-focus design eliminates the focusing motor, enhancing vibration resistance and long-term reliability, suitable for portable medical endoscope camera module or industrial endoscope camera module.
The 60° FOV covers about 55mm width at 50mm working distance, sufficient to fully present common defect areas.
As a preferred micro endoscope camera module, this module achieves precise depth-of-field control in a compact form. When selecting, verify: If the working distance is often below 30mm (e.g., chip bottom observation), confirm near-distance clarity; if exceeding 50mm, edge image quality may slightly degrade—test at actual distances.
Third step: Assess the lighting conditions and fill light requirements of the inspection environment.
This module integrates eight 0402 white LEDs arranged in a ring (outer diameter 7.0mm, inner diameter 5.0mm), forming a uniform annular fill light structure. The core value of this design:
The ring layout aligns the illumination axis with the imaging axis, effectively suppressing the “tunnel effect” (center overexposure, edge underexposure) common in pipe inspection.
Eight LEDs provide sufficient brightness, achieving 0 lux minimum illumination (with LEDs on), fully adapting to dark cavity interiors.
Uniform shadow-free lighting avoids shadows caused by single light sources, ensuring micro-defects are clearly distinguishable.
Note: LED power consumption is approximately 0.5–1W; for battery-powered portable devices, assess battery life impact. For highly reflective metal surfaces, an external PWM dimming circuit can reduce brightness to avoid local overexposure.
Fourth step: Confirm the host platform’s interface type and driver development capability.
This module uses a USB 2.0 interface, strictly follows the UVC driver-free protocol, with pin definitions including DP, DM (data), SNAP (snapshot trigger), GND, and VCC5.0. As a standard endoscope camera module, its integration advantages include:
No driver development required; automatically recognized when connected to Windows, Linux, Android, or Raspberry Pi systems.
The SNAP pin supports external hardware trigger for snapshot capture, facilitating integration into automated inspection equipment.
Overall dimensional tolerance controlled within ±0.50mm, ensuring batch assembly consistency.
When selecting, evaluate: If the host platform is an embedded microcontroller without USB Host, an external USB-to-serial converter or a DVP interface module may be needed; for wireless transmission, a USB WiFi dongle can be added.
Application Scenario | Recommended Configuration | Selection Rationale |
|---|---|---|
Smartphone motherboard precision repair | Bare probe + handheld stand | 30mm working distance clearly shows solder joints; 1080P identifies micro-cracks |
Industrial 5mm micro-hole wall inspection | Standard ring LED, long cable | 8-LED ring eliminates dark corners; fixed focus avoids frequent adjustment |
Automotive engine cylinder carbon deposit check | Oil-resistant probe + USB extension | 50mm DoF covers cylinder wall; 30fps adapts to handheld movement |
Medical ear/oral cavity auxiliary observation | Disposable sheath + medical-grade housing | 1080P reveals mucosal details; UVC direct to monitor |
Laboratory micro-specimen imaging | Microscope adapter stand | Ring light provides uniform illumination; fixed parameters ensure repeatability |
The core value of the GC2755 2MP 1080P USB endoscope module lies in integrating the clarity, illumination uniformity, and plug-and-play convenience required for a medical endoscope camera module or industrial endoscope camera module. When selecting, prioritize three questions:
Working distance: Is it consistently within 30–50mm? If yes, the fixed-focus solution is most reliable; if distances vary widely, consider auto-focus or varifocal options.
Lighting conditions: Is it completely dark? The ring LED fill light is necessary; if ambient light exists, evaluate low-power versions.
Host platform: Does it have a USB port and support UVC? Most computers, tablets, and embedded boards do.

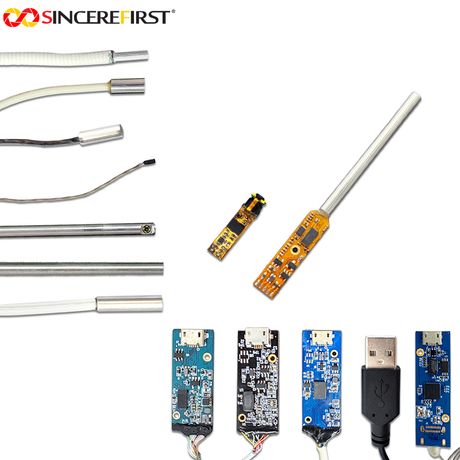

As a manufacturer with over 30 years of optical imaging experience, SincereFirst not only supplies standard modules based on the GC2755 Sensor, but also customizes cable length, LED color temperature, and housing protection levels according to your inspection scenario. We recommend obtaining engineering samples before mass production and conducting image clarity, illumination uniformity, and long-term stability tests on real workpieces to ensure your selection is both scientifically sound and forward-looking.
