In archaeological exploration, power inspection, mechanical maintenance, pipeline detection, and medical ENT/dental examinations, imaging systems often need to capture clear, low-distortion, recordable real-time images within channels less than 4mm in diameter. Conventional endoscope probes are either too thick to enter or lack sufficient image quality to resolve fine details. Addressing this challenge, the 3.9mm USB endoscope module based on the OV9734 Sensor—featuring 720P resolution, 10–100mm macro focus, 95°×85°×43.5° multi-axis field of view, and IP67 Waterproof protection—offers a high-performance, easy-to-deploy, and cost-effective option. This article provides a clear selection framework from five dimensions—physical size, optical performance, interface protocol, environmental adaptability, and typical industry applications—while incorporating key terms such as endoscope camera module, 720P Camera Module, usb2.0 endoscope camera, UVC Camera Module, OV9734 Sensor, Wide Angle Camera Module, Separate Endoscope, and IP67 Waterproof to help you precisely match confined-space inspection needs.
First step: Measure the minimum inner diameter and bend radius of the target channel.

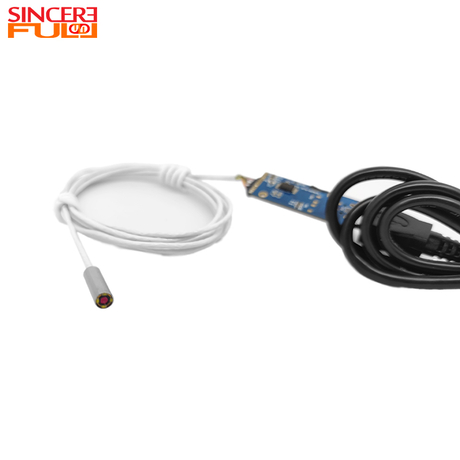

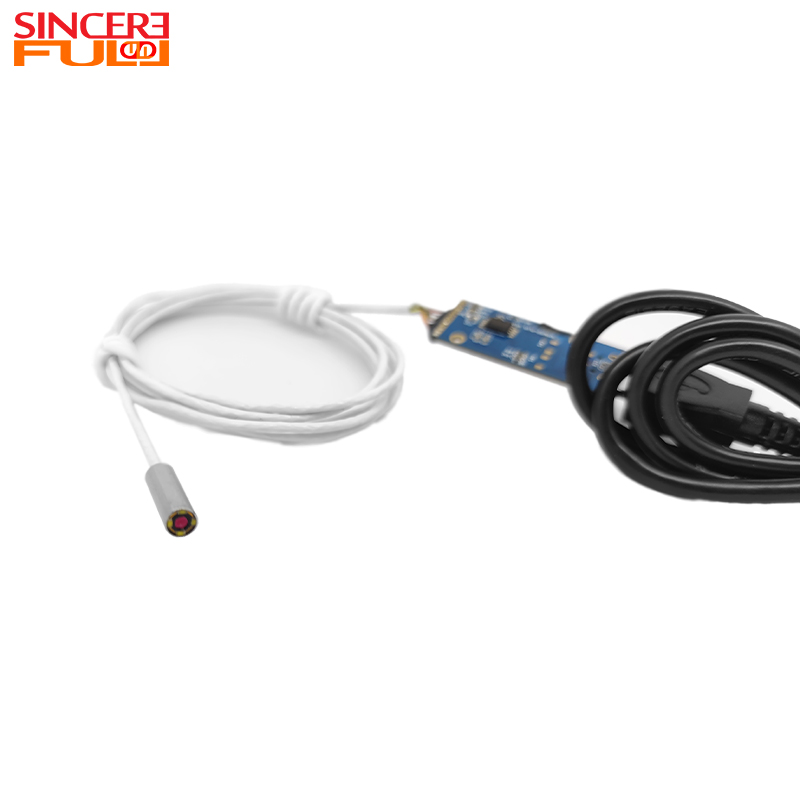

The probe diameter is 3.9mm with a steel shell and IP67 waterproofing, representing a typical endoscope camera module. The engineering significance:
Easily accesses channels ≥4.0mm inner diameter, such as DN50+ industrial pipes, high-voltage cabinet interiors, cultural relic crevices, and human ear canals/periodontal pockets.
The steel shell provides crush and scratch resistance, suitable for archaeological sites, power rooms, and mechanical workshops.
The standard 1.5-meter cable (customizable longer) balances deep cavity reach with operational flexibility.
When selecting, verify: Is the minimum inner diameter ≥4.0mm? For sharp 90° bends, evaluate the probe’s rigid section length (typically 5-8mm) and the cable’s bend radius. The module is integrated (not separate); for ultra-light front ends, consult custom Separate Endoscope options.
Second step: Confirm working distance, field coverage, and distortion tolerance.
This module incorporates the OV9734 Sensor, outputting 720P at up to 30fps, making it a 720P Camera Module. The optical system features a dedicated 10–100mm macro focus, combined with 1.08mm focal length, F4.0 aperture, and a 95°×85°×43.5° multi-axis field of view (characteristic of a Wide Angle Camera Module), with TV distortion < -10%. Core value:
The 10–100mm focus range precisely covers inspection needs from ultra-close (10mm) to medium distance (100mm): in dental checks, it can observe tooth micro-cracks near the surface; in pipeline inspection, it can examine corrosion at 50-80mm.
The 95° horizontal field reduces probe movement, the 85° vertical field captures cavity depth, and the 43.5° diagonal further minimizes blind spots.
Distortion < -10% (barrel) is acceptable in wide-angle endoscope designs, expanding peripheral vision; for precision measurement, software correction can be applied.
As a practical Wide Angle Camera Module, this module is ideal for scenarios requiring “wide field + close focus.” When selecting, verify: Does the field coverage at typical working distance meet your needs? Does -10% distortion affect size judgment? (Test with a calibration target.)
Third step: Evaluate host platform and deployment efficiency.

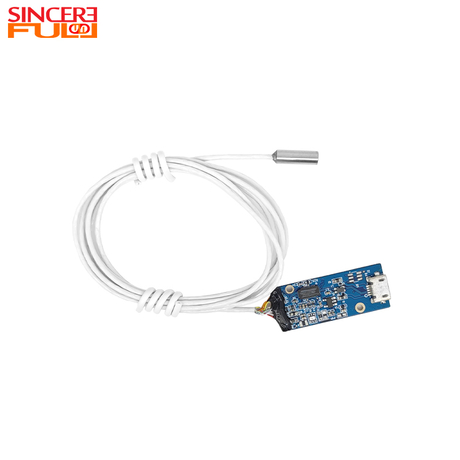

This module uses a Micro USB 5P interface, incorporates the UVC Camera Module standard protocol, and is plug-and-play without driver installation. As a usb2.0 endoscope camera, its key advantages:
Cross-platform compatibility: Automatically recognized by Windows, Linux, Android (with OTG), etc., allowing fast connection to laptops or tablets in archaeological sites, power stations, or clinics.
No driver development: System integrators can use standard APIs, shortening development cycles.
The 1.5-meter cable (customizable) increases operational distance for different workstations.
When selecting, confirm: Does the target host support UVC (most do)? For long-distance transmission (>5m), consider USB extenders or custom cables with signal boosters.
Fourth step: Assess risks of liquid, dust, and mechanical impact.
This module has IP67 Waterproof rating and a steel shell, making it fully dust-tight and capable of 1m water immersion for 30 minutes. Engineering value:
Suitable for wet pipelines, medical disinfection wipe-down, outdoor archaeology, etc.
The steel shell resists bending and drops, ideal for power inspections and mechanical maintenance.
Sealing prevents internal optics from fogging due to moisture.
Note: IP67 is not suitable for high-temperature liquids (>50°C) or high-pressure water jets; medical disinfection requires compatibility with alcohol or glutaraldehyde. For dry environments, a non-waterproof version may be available.
Industry Application | Recommended Configuration & Tips | Selection Rationale |
|---|---|---|
Archaeological exploration (mural checks through tomb crevices) | 3.9mm probe + long cable + external light | 3.9mm passes through relic gaps; Wide Angle reduces movement; IP67 dust/moisture protection |
Power inspection (contact oxidation in HV cabinets) | Steel shell insulation + LED light | 720P clearly shows oxidation; 10–100mm focus adapts to various depths; UVC direct to tablet |
Mechanical maintenance (gear/bearing wear) | Standard 1.5m cable + magnetic stand | 95° wide angle covers multiple teeth; 30fps smooth scanning; IP67 resists oil |
Pipeline inspection (DN50+ weld/blockage) | Long cable + centralizer | 3.9mm fits through 4mm bends; low distortion aids weld assessment |
Dental treatment (molar micro-cracks/plaque) | Disposable sheath + dimmable LED | 10mm close focus reveals tooth details; 720P meets diagnostic recording |
ENT examination (ear canal dome/eardrum) | Medical-grade housing + shadow-free LED | 95° wide angle fully shows ear canal; LED prevents glare; UVC direct to monitor |
The core value of the 3.9mm OV9734 USB endoscope module lies in integrating the clarity of a 720P Camera Module, the wide coverage of a Wide Angle Camera Module, the plug-and-play convenience of a UVC Camera Module, and the ruggedness of IP67 Waterproof plus steel shell—providing a cost-effective, easy-to-deploy vision tool for confined-space inspections in archaeology, power, machinery, pipelines, dentistry, and ENT. When selecting, prioritize three questions:

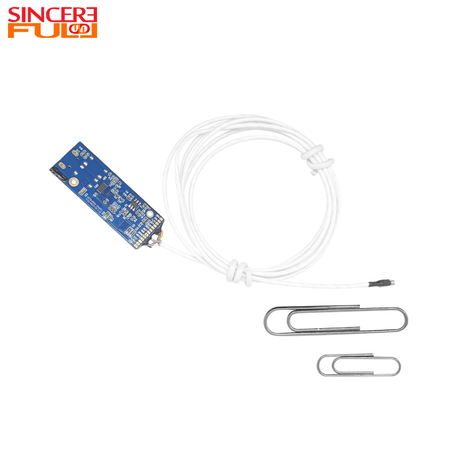

How narrow is the space? If inner diameter ≥4.0mm, the 3.9mm probe fits; if smaller, consider thinner diameters (2.8mm, 1.5mm series).
Is waterproofing needed? For wet or liquid-contact environments, IP67 Waterproof is mandatory; for dry scenes, non-waterproof may reduce cost.
What is the working distance? 10–100mm covers most macro inspection; for longer distances (>100mm), consider varifocal or lens replacement options.
As a manufacturer with over 30 years of optical imaging experience, SincereFirst not only supplies standard endoscope camera module products but also customizes cable length, LED count, and housing materials according to your inspection scenario. We recommend obtaining engineering samples before mass production and conducting accessibility, image clarity, and UVC compatibility tests in real pipes, equipment, or anatomical models to ensure your selection is both scientifically sound and forward-looking.
