In the world of high-tech imaging, there is a constant battle against space. Whether it is a surgeon navigating the delicate pathways of the human heart or an aerospace engineer inspecting a turbine blade for microscopic fractures, the need to "see the invisible" in cramped environments has driven a massive wave of innovation. At the heart of this revolution is the micro endoscope camera module.
If you are a hardware engineer or a project manager in the medical or industrial sector, understanding the nuances of these sub-millimeter systems is critical. This article breaks down the technology, the "millimeter war" of sizing, and why manufacturing precision is the only thing standing between a clear image and a useless blur.
At its core, a micro endoscope camera module is a highly integrated imaging system designed to function in diameters typically ranging from 2.0mm down to a staggering 0.5mm. Unlike the camera in your smartphone, which has relatively ample space for sensors and multi-lens stacks, a micro endoscope must consolidate four primary components into a space smaller than a grain of rice:
The Image Sensor: Usually a CMOS sensor using "Chip on Board" (COB) technology to eliminate bulky packaging.
The Lens Assembly: Micro-lenses (often glass or specialized plastic) that focus light onto the sensor.
The FPC (Flexible Printed Circuit): A thin, bendable substrate that carries data and power.
Illumination: Tiny LED fibers or built-in LEDs that provide light in pitch-black environments.
In the world of endoscopy, every tenth of a millimeter counts. A module that is too large won't fit the application; one that is too small might sacrifice resolution or light sensitivity. Here is how the market currently breaks down:

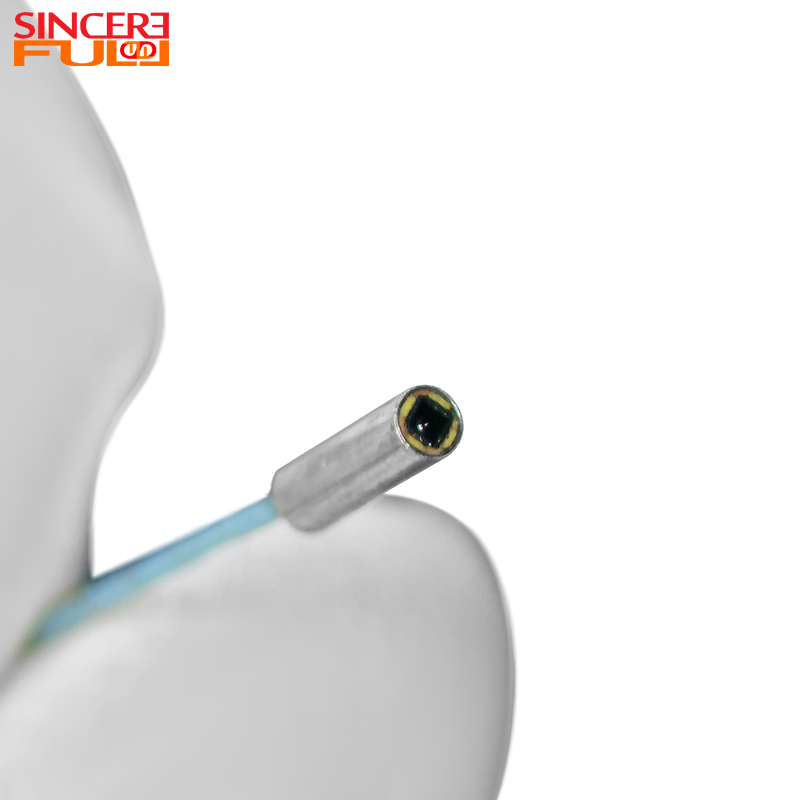

The 1.5mm micro camera module is widely considered the industry standard for general-purpose industrial borescopes and larger-channel medical endoscopes. It offers a perfect balance between resolution (often up to 400x400 or even 720p in advanced models) and durability. It is robust enough for repetitive use in automotive engine inspections while being small enough for many veterinary and gastrointestinal applications.
When moving into specialized medical procedures like bronchoscopy (lungs) or urology, the 1.2mm endoscope camera Module becomes the go-to choice. At this size, the module can navigate natural human pathways with minimal trauma to the patient. It requires highly specialized optics to maintain a wide Field of View (FOV) despite the narrow aperture.
The 1mm endoscope camera module and the ultra-thin 0.9mm Endoscope Camera Module represent the current frontier of optical engineering.
0.9mm Applications: These are utilized in neurosurgery (brain), ophthalmology (eyes), and high-precision semiconductor inspection.
The Engineering Hurdle: At 0.9mm, the wiring becomes as thin as human hair. Soldering these connections requires automated precision that manual labor simply cannot achieve.
You can have the best sensor in the world, but if the manufacturing process is flawed, the image will be distorted. For a micro endoscope camera module, there are two non-negotiable manufacturing standards:
In traditional camera assembly, the lens is simply placed on the sensor. However, at sub-millimeter scales, even a 1-micron tilt can cause "soft corners" (where the center of the image is sharp but the edges are blurry).
SincereFirst utilizes Active Alignment (AA). During this process, the camera is powered on, and a robotic arm adjusts the lens in six degrees of freedom (6-axis) while analyzing the real-time image. The lens is only locked into place once the focus is perfectly uniform across the entire sensor.
When your sensor is only 0.5mm wide, a single speck of dust acts like a giant boulder, blocking 20% of your view. Producing a 1.5mm micro camera module or smaller requires a dust-free COB automatic production workshop. Without this, the yield rate drops, and the "cost of quality" skyrockets for the end client.
While the dimensions might be identical, the internal requirements for an industrial endoscope camera and a medical endoscope camera are worlds apart.
Medical Requirements: Must be biocompatible, waterproof (IPX7 or IPX8), and capable of withstanding sterilization (like ETO gas or Cidex soaks). Color accuracy is paramount for doctors to distinguish between healthy and diseased tissue.
Industrial Requirements: Must be rugged enough to handle oils, fuels, and high temperatures (often up to 70°C or 100°C). Contrast and edge enhancement are more important here to spot hairline cracks in metal.
If you are looking for an oem camera module manufacturer for your next project, do not just look at the price per unit. Consider the "Total Cost of Ownership":
Experience: Look for a partner with decades (like SincereFirst's 30 years) in the industry. Micro-optics have a steep learning curve.
Capacity: Can they scale? A supplier with 10 production lines and a 3-million-unit monthly capacity ensures your supply chain won't break when you go from prototype to mass production.
Warranty: Most micro-camera suppliers offer 90 days. A 10-year warranty (as offered by SincereFirst) is a sign of extreme confidence in the AA manufacturing process.
Customization: Do you need a specific focal length? A custom FPC shape? Ensure your partner offers one-stop OEM/ODM solutions.
The micro endoscope camera module is the unsung hero of modern diagnostics and maintenance. From the 1.5mm micro camera module used in your local auto shop to the 0.9mm Endoscope Camera Module used in life-saving brain surgery, these tiny devices provide the "Intelligent Eyes" for our most critical tasks.
As technology progresses, we will see even higher resolutions (up to 200MP) and even smaller diameters. Choosing a partner who understands the delicate balance of AA technology and cleanroom precision is the first step in bringing your vision to light.
