The VGA-90F Miniature Endoscope Camera Module is an optical assembly specifically designed for imaging in confined spaces. Its compact dimensions and specialized optical characteristics make it valuable across multiple professional fields. The following outlines selection evaluation and recommendations for this model.

I. Core Parameter Compatibility Analysis

1. Advantageous Parameter Combination

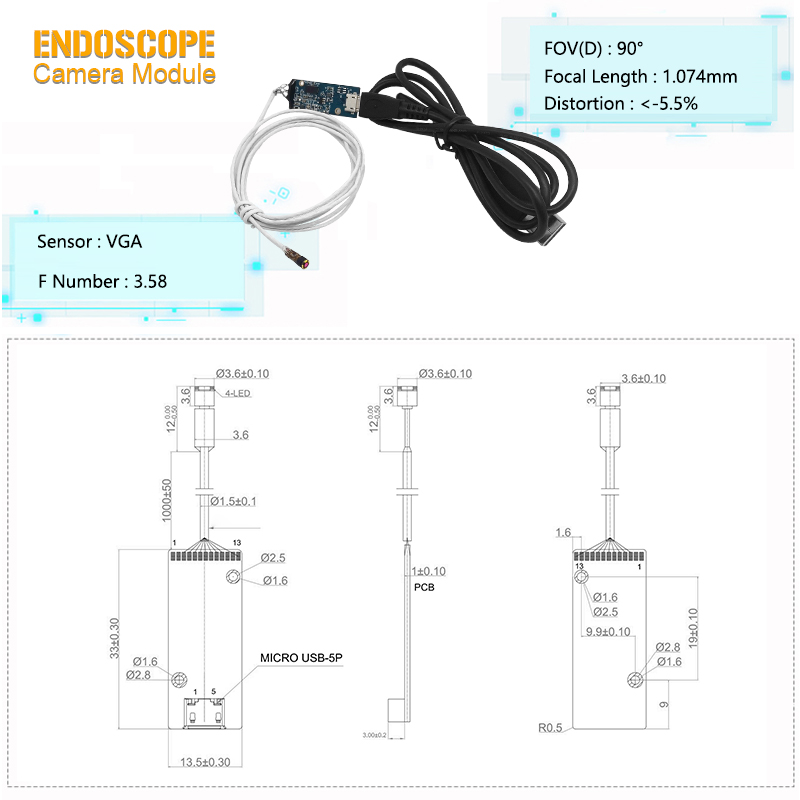

Dimensions and Interface: Its minimalist dimensions of 12.2×4.4×3.6mm and Micro USB interface provide significant advantages in physical integration and electrical connectivity. This makes it particularly suitable for devices with existing standard USB architectures or stringent installation space requirements.

Field of View and Focal Length: The 90° field of view combined with a short 1.074mm focal length creates a “close-range, wide-view” imaging characteristic. This enables a broad observation field even when positioned just millimeters from the subject.

Optical Balance: The F3.58 aperture controls lens size while providing relatively ample light intake; Distortion below -5.5% ensures image usability at wide angles, preventing excessive edge stretching.

2. Key Parameter Limitations

Resolution: VGA (640×480) resolution is a foundational specification, meeting basic observation, identification, and detection needs. However, it is unsuitable for applications requiring high-definition detail (e.g., reading minute text or inspecting microscopic cracks).

Absolute Light Intake: Despite a moderate F-number, the sensor's absolute light sensitivity remains limited by the module's physical dimensions compared to larger cameras, resulting in constrained performance in extremely dark environments without auxiliary lighting.

II. Recommended and Unsuitable Selection Scenarios

Recommended Applications

Space-constrained integration projects: When physical space is the primary limitation (e.g., micro-robots, disposable endoscopic catheters), its compact size becomes a decisive factor.

Process observation and qualitative inspection: Suitable for scenarios requiring confirmation of “presence/absence,” “location,” or “general shape,” such as surgical instrument navigation, industrial pipeline blockage detection, or assembly process verification.

Cost-sensitive solutions with controllable lighting: A cost-effective choice balancing performance and expense when basic illumination (e.g., integrated LED fill lights) can be provided for the imaging area.

Non-recommended or cautionary scenarios

High-definition detail inspection: VGA resolution may become a bottleneck for sub-millimeter surface defect measurement or high-precision dimensional metrology.

Completely dark environments with no light source: The module lacks active illumination capabilities and relies entirely on ambient light. Dedicated supplementary lighting solutions are mandatory in such scenarios.

High-vibration or high-impact environments: Product specifications do not explicitly state shock resistance or protection ratings. Additional reinforcement and protective design are required for industrial vibration or harsh outdoor conditions.

III. Comprehensive Selection Recommendations

The core competitive advantage of the VGA-90F module lies in “delivering stable, reliable wide-field-of-view basic vision capabilities within the smallest possible space.” Selection decisions should follow this logic:

First, ask: “Is space absolutely constrained?”

If yes, this module is nearly the optimal choice within its functional class. If no, higher-resolution or better low-light alternatives may exist.

Second, ask: “How clearly do I need to see?”

Define the application's detail requirements. For status monitoring or navigation positioning, it suffices; for precision inspection or document scanning, sensor upgrades are necessary.

Finally, ask: “What are the ambient light conditions?”

Assess the lighting environment and budget/design for integrated supplemental lighting—this is critical for optimal performance.

Summary:

The VGA-90F is an outstanding “space-saving solution” vision module. It does not pursue ultimate image quality but focuses on solving the fundamental problem of “seeing clearly and comprehensively” within an extremely compact form factor. Selectors should view it as a reliable visual input terminal, whose ultimate performance heavily depends on the matched lighting system, stable mechanical mounting, and reasonable scene expectations. In fields where “small is beautiful”—such as minimally invasive medical procedures, industrial endoscopy, and micro-robotics—it is a highly pragmatic and efficient choice.
