Building custom non-destructive testing, automotive, or pipeline inspection systems presents a significant engineering challenge. You must constantly balance sensor size against image quality and integration speed. Proprietary camera interfaces like MIPI or LVDS often slow down your project timeline. They require complex driver development, extended research cycles, and dedicated image signal processors. Standardized USB architectures solve this problem seamlessly. They combine the sensor, processor, and interface into a single micro-assembly. This integrated approach accelerates deployment significantly for hardware developers.
However, these microscopic systems introduce specific physical and thermal constraints. Engineers must evaluate these constraints carefully before finalizing hardware designs. In this comprehensive guide, you will learn how to navigate module selection effectively. We cover technical trade-offs, form factor choices, and implementation risks. You will also discover exactly when to transition from standard testing modules to fully customized OEM assemblies.
Standardized UVC (USB Video Class) protocols eliminate custom driver development, allowing immediate compatibility with Windows, Linux, and Android OS for fast module integration.
Evaluating a module requires balancing the Outer Diameter (OD) constraint against the required resolution; sub-4mm sensors typically max out at 720p due to pixel size limits.
The primary implementation risks for USB endoscope modules are thermal throttling in enclosed spaces and signal attenuation over extended cable lengths.
Transitioning from off-the-shelf testing to an OEM custom module is usually dictated by specific IP67/IP68 sealing requirements and custom focal lengths (Depth of Field).
Deploying inspection systems rapidly requires minimizing software friction. The UVC standard transforms complex sensor integration into a true plug-and-play endoscope camera for system developers. Operating systems natively recognize UVC devices. You do not need to compile custom kernel drivers. Engineers can pull video feeds directly into standard APIs like DirectShow or V4L2. This standardization saves months of software development time when building custom diagnostic equipment.

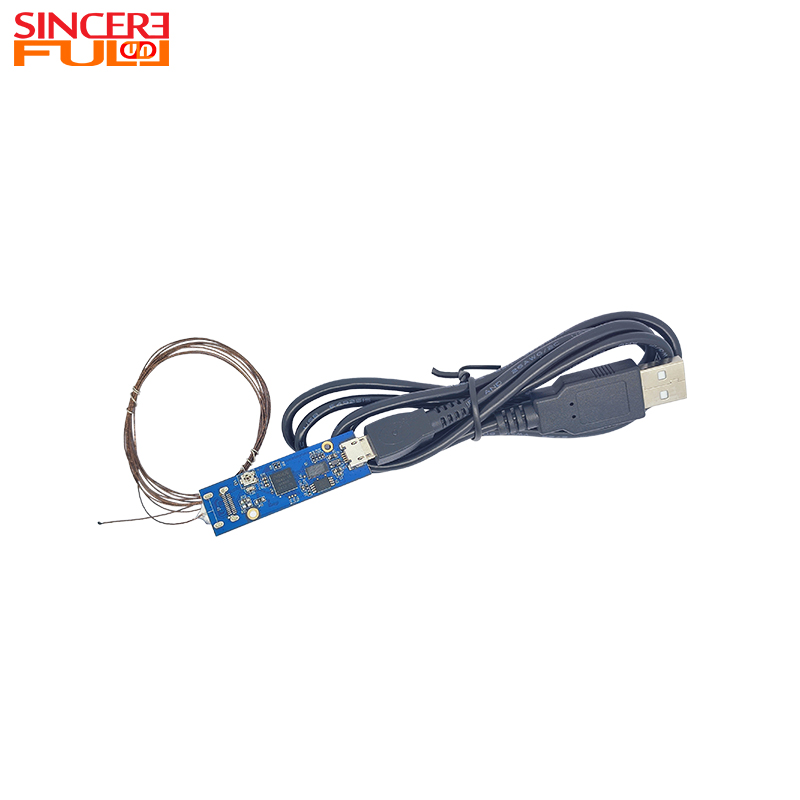

Architecture simplification represents another major advantage. Traditional designs require discrete components spread across a mainboard. Modern modules feature an ISP-on-chip design. The camera module handles exposure, white balance, and noise reduction internally. This offloads significant processing tasks from your primary hardware. Your mainboard runs cooler and consumes less power.
Cross-platform versatility ensures long-term product viability. A standard USB interface guarantees seamless integration across diverse hardware ecosystems. You can integrate these camera modules with industrial rugged tablets. Engineers can route the module's video feeds into PC-based analysis software for complex defect tracking. Mobile diagnostic displays running Android also accept these feeds instantly. This flexibility allows you to build one camera subsystem and deploy it across multiple product lines.

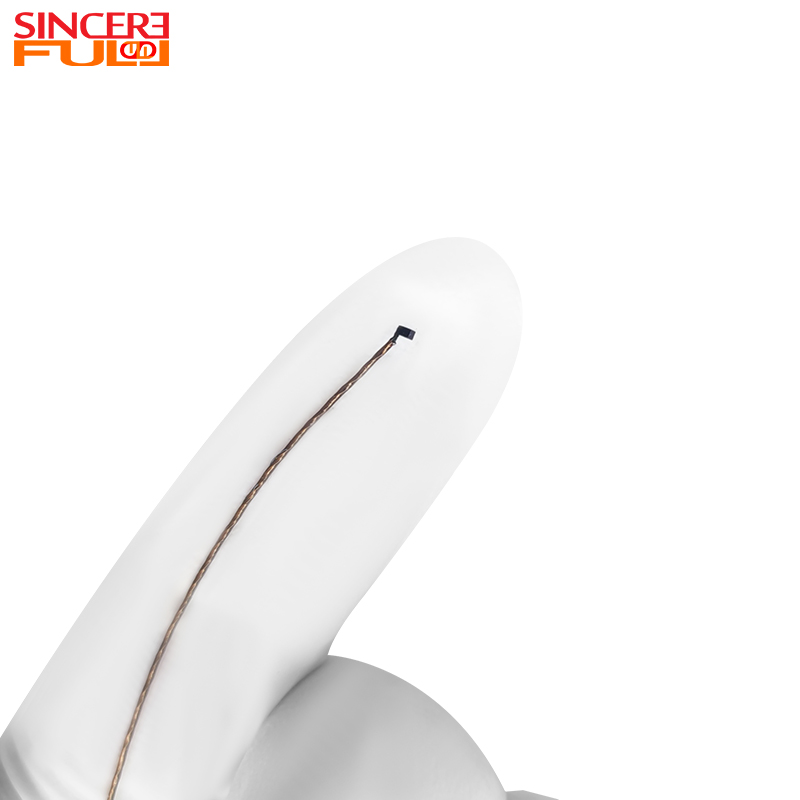

Evaluating a usb endoscope camera module requires understanding optical physics. Sensor size and Outer Diameter represent a direct trade-off. Ultra-thin modules measuring 3.9mm heavily restrict the physical dimensions of the CMOS sensor. Small sensors rely on tiny pixels, often measuring around 1.4 micrometers. These microscopic pixels capture very few photons. To maintain acceptable light sensitivity, manufacturers cap effective resolution at 720P or 1080P. Pushing higher resolutions on sub-4mm sensors results in severe image noise.
Depth of Field dictates inspection usability. Standard surveillance lenses focus on infinity. Endoscopic module integration requires fixed macro focal lengths. Typical modules lock focus between 10mm and 50mm. This close-proximity tuning ensures sharp images inside narrow cavities. Attempting to use standard wide-angle optics in a pipeline module assembly will yield useless, blurry results.
Integrated illumination introduces electrical constraints. Most modules feature built-in LED rings. Standard USB 2.0 ports only supply 500mA of maximum current. High-brightness LEDs can easily exceed this limit if not carefully managed. Adjustable dimming circuits on the module board become mandatory for hardware integration.
Follow these numbered steps when evaluating illumination circuits:
Measure total current draw during maximum LED brightness.
Verify the module leaves sufficient amperage for the ISP.
Test the dimming circuit resolution for smooth transition steps.
Assess light uniformity across the targeted focal distance.
Chart: Sensor Resolution Capabilities by Outer Diameter
Outer Diameter (OD) | Typical Max Resolution | Sensor Format (Approx.) | Primary Application |
|---|---|---|---|
2.0mm - 3.0mm | 480P (VGA) | 1/18 inch | Precision Micro-mechanics |
3.9mm - 4.5mm | 720P | 1/9 inch | Automotive Integration, Aviation |
5.5mm - 8.0mm | 1080P | 1/6 inch | Pipeline Systems, General NDT |
8.0mm+ | 4K (UHD) | 1/4 inch or larger | Large Cavity Inspection Systems |
Choosing the correct optical orientation defines your system's diagnostic value. Forward-facing lenses sit at a 0-degree angle. These serve as the industry standard for general diagnostic routing. They excel at pipeline traversal and deep cavity exploration. System integrators utilize forward-facing modules to allow safe probe navigation through complex geometries during automated inspections.
Alternatively, a side-view endoscope camera captures images at a 90-degree angle. This orientation is critical for evaluating perpendicular surfaces in extremely tight clearances. Automotive diagnostic systems integrate side-view modules to inspect cylinder walls and engine valve seats. Automated weld inspection crawlers use these modules to scrutinize lateral pipe welds without bending the primary assembly head.
Dual-lens modules combine both orientations into a single housing. System controllers switch between views using integrated software commands. This eliminates the need to extract the entire module assembly to attach a mirror. However, dual-lens configurations increase the overall module length. This added length creates a larger rigid section at the assembly tip. A longer rigid section reduces insertion flexibility around sharp corners during system deployment.
Table: Optical Orientation Comparison
Orientation Type | Best Integration Case | Common Limitations |
|---|---|---|
Forward-Facing (0°) | Navigation, deep pipe system integration | Cannot view lateral walls clearly |
Side-View (90°) | Cylinder walls, lateral weld assemblies | Poor for forward navigation |
Dual-Lens (0° + 90°) | Comprehensive cavity mapping systems | Longer rigid tip, complex software switching |
Standard USB architecture carries inherent length limitations. USB 2.0 protocols generally fail beyond 5 meters. Signal attenuation causes timing errors and data packet loss. When designing long-reach pipe inspection modules, you must address this physical limit. Active repeater cables reconstruct the data signal at set intervals. Alternatively, engineers translate the USB signal into Ethernet or fiber optic formats for extreme distances. Ignoring signal degradation guarantees unstable video feeds.
Thermal management poses a significant threat to micro-housings. Integrated ISPs and high-intensity LEDs generate substantial heat. When you enclose a USB UVC endoscope module in a sealed tip, heat traps quickly. Continuous high-resolution streaming raises the internal temperature. Excessive heat creates thermal noise on the CMOS sensor, degrading image clarity. Prolonged overheating causes permanent sensor degradation. Engineers must design protective housings utilizing conductive metals like aluminum. Thermal potting compounds help transfer heat away from the processor to the outer casing.
Harsh environment survivability requires rigorous secondary engineering. Bare camera modules rarely carry IP ratings out of the box. Exposed lens barrels will flood instantly in liquids. Achieving IP67 or IP68 dust and waterproof ratings demands specialized enclosures. You must cover the lens using optical-grade sapphire glass during assembly. Sapphire resists scratching from abrasive pipe walls. Furthermore, you must seal the internal electronics using industrial potting compounds. A bare module is just a component; the final sealed integration dictates environmental survivability.
Knowing when to customize dictates your project timeline. Standard, off-the-shelf modules serve a vital purpose early in development. They are ideal for Proof of Concept phases. Software teams use them to build and test video analysis applications immediately. Standard modules also suit low-volume, non-critical integration projects where environmental stress remains low.
However, specific deployment scenarios trigger the need for an OEM USB inspection camera. Customization becomes mandatory when standard cables fail. Environments involving harsh chemicals require specialized Teflon shielding. High-abrasion areas demand Tungsten braiding.
Consider these common triggers for OEM customization:
Strict compliance requirements like RoHS, REACH, or specialized industrial certifications.
Customized Field of View angles to match specific pipe diameters.
Specialized wavelength LED integration, such as UV lights for fluorescent penetrant inspection.
Unique housing geometries to fit proprietary robotic crawlers.
Apply strict shortlisting logic before committing to high-volume manufacturing. Never purchase mass quantities based solely on a spec sheet. Always request engineering samples first. Specify your exact target focal length and test the depth of field physically. Validate thermal performance inside your prototype housing. Thorough sample testing prevents costly manufacturing errors during system integration.
Selecting the right endoscope module requires balancing integration speed against physical hardware limitations. Standardized UVC architecture drastically reduces your software development timeline. However, you must carefully navigate outer diameter constraints, heat dissipation, and cable length limits to ensure reliable performance within your broader system design.
Before contacting suppliers, define your absolute maximum outer diameter. Measure your minimum required focal distance based on your target inspection cavities. Determine your environmental sealing requirements early in the design phase. Establishing these parameters first ensures you source a camera module capable of surviving real-world industrial environments once fully integrated.
A: No. Standard USB endoscope modules utilize the UVC (USB Video Class) protocol. Operating systems like Windows, Linux, Android, and macOS natively recognize UVC devices. Developers can process the video feed immediately using standard camera APIs without compiling custom drivers.
A: Standard USB 2.0 protocols reliably transmit data up to 5 meters. Pushing beyond this distance causes signal attenuation and video dropouts. To achieve longer reaches for deep integration, you must incorporate active repeater chips into the cable or utilize alternative transmission formats.
A: No. Physics severely limits sensor capabilities at this size. A 3.9mm outer diameter requires a microscopic CMOS sensor. These sensors have incredibly small pixel pitches, which capture minimal light. Attempting 4K resolution on sub-4mm sensors results in unusable, noisy images. 720p remains the realistic maximum for this module size.
A: Bare modules are not waterproof. They contain exposed circuitry and unsealed lens barrels intended for integration. To achieve IP67 or IP68 waterproof ratings, hardware engineers must install the module into a custom protective housing, seal it using sapphire glass, and protect the electronics using potting compounds.
