Technical Logic and Application Guide for Selecting the OVM6946 Ultra-Compact Waterproof Endoscope Module

In visualization applications across industrial inspection, precision manufacturing, and medical assistance, imaging system selection often faces a set of extreme constraints: observation channel diameters measured in millimeters, working environments potentially involving liquid immersion, and target surfaces featuring complex materials with uncontrollable lighting conditions. When conventional cameras are too bulky to access inspection sites, or general imaging solutions fail in humid environments due to insufficient waterproof ratings, a miniature endoscope module featuring ultra-small diameter, IP67 waterproofing, and integrated illumination emerges as a viable technical option warranting systematic evaluation. This paper aims to establish an evaluation framework for selecting such ultra-miniature imaging modules based on the OVM6946 sensor, elucidating the intrinsic logical relationship between their technical parameters and specific application scenarios.

I. Engineering Interpretation of Physical Dimensions as Accessibility Metrics

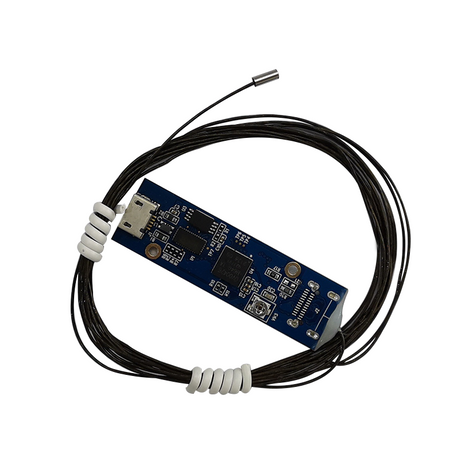

The OVM6946 sensor within this module is encapsulated in a 1/18-inch optical format, with its overall diameter maintained at an ultra-micro scale (specific measurements refer to the structural diagram, typically under 4 mm). The engineering significance of this dimension lies in its precise clearance below the minimum inner diameter threshold of most industrial micro-pipes. Taking common 1/8-inch (3.175 mm) capillary tubes, medical catheters, and precision pneumatic lines as examples, the module's diameter design maintains clearance while providing residual space for liquid or dust accumulation at the lens front.

The stainless steel shell offers dual benefits in such applications. First, the metal casing provides essential structural rigidity, ensuring coaxial alignment between the sensor and lens remains unaffected by axial thrust or radial bending moments during passage through narrow, curved passages. Second, the stainless steel material forms the physical foundation for achieving IP67 waterproofing, enabling the module to operate reliably in environments containing oil, coolant, or cleaning agents. Selection engineers must evaluate the minimum bending radius of the target inspection path. If the pipeline features 90-degree right-angle turns with a curvature radius less than 5 millimeters, verify whether the module's flexible section can withstand repeated bending cycles.

II. Technical Implications and Application Boundaries of IP67 Waterproof Rating

The IP67 rating signifies: complete dust protection (Level 6) and continuous submersion in 1 meter of water for 30 minutes without operational impairment (Level 7). This rating addresses typical environmental threats in industrial inspection settings—such as residual cutting fluids in pipelines, engine compartment oil, or rain splashes during outdoor inspections—all falling within its protective scope.

However, IP67 is not a universal protection guarantee. Its application boundaries must be clearly understood: First, it is unsuitable for high-temperature liquid environments, as water above 80°C may cause seal material aging or mismatched expansion coefficients, compromising the waterproof structure. Second, it is not designed for high-pressure water jets; IP69K is the appropriate rating for high-pressure washing scenarios. Third, it is not recommended for prolonged underwater operations, as waterproof performance may degrade with increased insertion/removal cycles. For applications involving corrosive liquids (e.g., strong acids/alkalis) or requiring repeated immersion disinfection, specifiers should consult suppliers to customize higher protection ratings and request chemical resistance test data for sealing materials.

III. Optical Characteristics and Depth-of-Field Management in Close-Range Imaging Systems

The depth-of-field range of 5 to 50 millimeters constitutes the core differentiating feature of this module compared to general-purpose imaging solutions. This parameter directly corresponds to the typical working distance in micro-endoscopic inspection: when probes penetrate micro-pipes with diameters ranging from 3 to 8 millimeters, the distance between the lens and the pipe wall or target object typically falls within the 5 to 30 millimeter range. Maintaining clear imaging within this range eliminates the need for frequent operator adjustments to locate the focal plane, significantly enhancing inspection efficiency.

A critical point to understand is the optical coupling relationship between the 120° ultra-wide angle and depth of field. While the wide-angle design expands the coverage of a single field of view, it also compresses the depth of field. At the closest working distance of 5 mm, the horizontal field of view covers a circular area approximately 10 mm in diameter, sufficient to fully display the pipe's cross-section. At the 50mm far end, the field of view expands to approximately 100mm, enabling observation of the overall condition of longer pipe segments. This characteristic allows a single module to cover multiple inspection needs, from detailed magnification to overall scanning.

For verifying the clarity of ultra-close-range (5mm) imaging, it is recommended to conduct actual measurements using a standard resolution test chart. Focus on resolving power consistency between peripheral and central fields—wide-angle lenses typically exhibit more pronounced image degradation at edges than at centers during closest working distances. For tasks involving micro-scratch detection (10–50 micrometers wide), verify that the module's Modulation Transfer Function (MTF) meets requirements at corresponding spatial frequencies.

IV. Engineering Logic and Control Flexibility of the Integrated Illumination System

The optional configuration of four high-brightness white LEDs addresses the core challenge of imaging in enclosed spaces: in environments completely devoid of natural light, the illumination system must form a self-contained unit with the imaging system. The LEDs feature independent power supply design, enabling brightness adjustment or segmented control via external commands. This capability holds substantial engineering value: for highly reflective metal surfaces, illumination intensity must be reduced to prevent local overexposure; for dark or light-absorbing materials, brightness must be increased to maintain sufficient signal-to-noise ratio.

Key evaluation factors include illumination uniformity and shadow suppression capability. The symmetrical arrangement of four LEDs aims to achieve high alignment between the illumination and imaging optical axes, effectively mitigating the “tunnel effect” commonly observed in pipeline scenarios. Selectors should test illuminance distribution across different brightness settings in simulated pipelines, paying particular attention to reflective halos when the lens is positioned close to the target.

Power consumption control represents another design highlight. When LEDs are activated, the overall power draw increases by less than 1 watt. Under standard USB 5V power supply, the module supports continuous operation exceeding 8 hours. This endurance sufficiently covers round-the-clock monitoring requirements. For applications demanding prolonged deployment, pairing with a power bank or extended cables ensures stable power supply.

V. System Integration Value and Platform Compatibility of the USB Interface

The combination of a standard USB 2.0 interface with the UVC protocol represents this module's most distinctive feature at the system integration level. The UVC protocol essentially abstracts camera devices into standard operating system resources, enabling plug-and-play functionality across mainstream platforms like Windows, Linux, Android, and macOS without requiring dedicated driver development. For device manufacturers, this translates to a 4-8 week reduction in software development cycles and eliminates the need to maintain multiple driver sets for different operating systems.

OTG compatibility must be verified when connecting to mobile devices like smartphones. While Android 4.0 and later generally support UVC devices, OTG implementation varies across manufacturers, necessitating testing on specific models. For embedded platforms (e.g., Raspberry Pi, Jetson Nano), the Linux kernel's native UVC driver provides direct recognition, with image data accessible via the V4L2 interface—facilitating integration into automated inspection systems.

Pin definitions are standardized as VBUS, D+, D-, and GND. The integrated power supply and data transmission design significantly simplifies system wiring. In industrial integration scenarios, latching USB connectors can be selected to enhance vibration resistance. Within space-constrained probes, custom-length flexible cables can be used to optimize routing layouts.

VI. Differentiated Adaptation Evaluation for Application Scenarios

Industrial Micro-Pipe Inspection: Core requirements for modules in this scenario are “ultra-fine accessibility” and “liquid tolerance.” A 4mm diameter ensures physical reachability for capillaries larger than 1/8 inch; IP67 waterproofing enables operation in pipelines with residual cutting fluids or coolants. Special attention must be paid to pipe wall reflection characteristics—the inner surfaces of polished metal pipes may cause extensive reflections, necessitating LED brightness adjustment to suppress overexposure.

Precision Instrument/Electronic Component Endoscopic Inspection: The non-invasive advantage of the module is highlighted in inspecting such high-value equipment. A 120° wide-angle lens combined with a 5mm minimum working distance allows inspection of solder joints on the reverse side of circuit boards, contact status of micro-connectors, and wear inside deep holes without disassembling precision components. The rigidity of the steel housing ensures controlled probe advancement within complex cavities, preventing damage to delicate surfaces.

Automotive Micro-Component Endoscopic Inspection: Traditional inspection methods for small engine compartment components like tubing, turbocharger ducts, and fuel injectors often require extensive disassembly. The module's ultra-fine diameter allows entry through spark plug holes or sensor mounting ports into combustion chambers to inspect piston top carbon deposits and valve seal integrity; its IP67 waterproof rating enables operation in engine oil mist environments.

Medical/Laboratory Microcavity Observation: In non-invasive medical assistance and scientific research scenarios, the module's biocompatibility must be prioritized over imaging performance. While stainless steel materials have a good biocompatibility track record, their surface treatment processes may introduce cytotoxic risks. For applications involving human contact, specifiers should require suppliers to provide ISO 10993 series test reports and confirm whether the module's sterilization methods (ethylene oxide, low-temperature plasma, etc.) are compatible with its waterproof structure.

VII. Selection Decision Framework and Validation Recommendations

Based on the above analysis, the recommended selection decision path is as follows:

First, Accessibility Assessment. Precisely measure the target channel's minimum inner diameter and minimum bending radius to confirm whether the module's outer diameter and rigid segment length meet physical passage requirements. For applications involving liquid environments, evaluate whether the liquid type (water/oil/coolant), temperature, and immersion duration fall within the IP67 capability range.

Second, Qualify Imaging Tasks. Determine whether the core task is qualitative observation (e.g., presence of foreign objects/blockages) or quantitative measurement (e.g., corrosion pit depth/crack width). Existing resolution suffices for the former; the latter requires calibrated algorithms and field-validated measurement uncertainty for pixel-to-physical-dimension mapping.

Third, Verify Illumination Adaptation. Test illuminance distribution at various working distances within simulated pipelines. Evaluate whether multi-level brightness adjustment meets imaging requirements for different material surfaces. For highly reflective or dark targets, verify absence of local overexposure or detail loss.

Fourth, platform compatibility testing. Validate plug-and-play compatibility on target host devices (industrial PCs/smartphones/embedded platforms). Measure module surface temperature rise and image stability after 8 hours of continuous operation. For vibration-prone environments, add random vibration testing to validate connector contact reliability.

Fifth, regulatory and supply chain audits. For medical-grade applications, request biocompatibility test reports and sterilization compatibility data. For industrial mass production, confirm the supplier's batch delivery capacity, batch consistency control, and long-term supply commitment.

Conclusion

Selecting an ultra-miniature waterproof endoscope module fundamentally involves translating highly specific application constraints into verifiable technical specifications. Its value lies not in leading individual parameters, but in finding the optimal combination solution that best matches industrial inspection and medical assistance scenarios across multidimensional constraints such as diameter, waterproof rating, depth of field, illumination, and interfaces. Successful selection stems from clear answers to fundamental questions within the target application: “How fine must the channel be?”, “Is liquid present?”, “What are the working distance requirements?”, and “What is the backend platform?” When these answers achieve intrinsic alignment with technical specifications, the selection decision evolves from passive specification comparison to the professional practice of actively defining system solutions.
