In the field of industrial inspection, the performance of endoscope camera modules directly determines inspection accuracy and efficiency. A module with both high pixels and adaptability can effectively break through the technical bottleneck of narrow space inspection. Taking the 1080P HD CSI integrated industrial inspection endoscope camera module as an example, this article analyzes the key impact of high pixels combined with a reasonable lens diameter on module applications from parameter characteristics to practical applications.

Product Introduction and Core Parameters

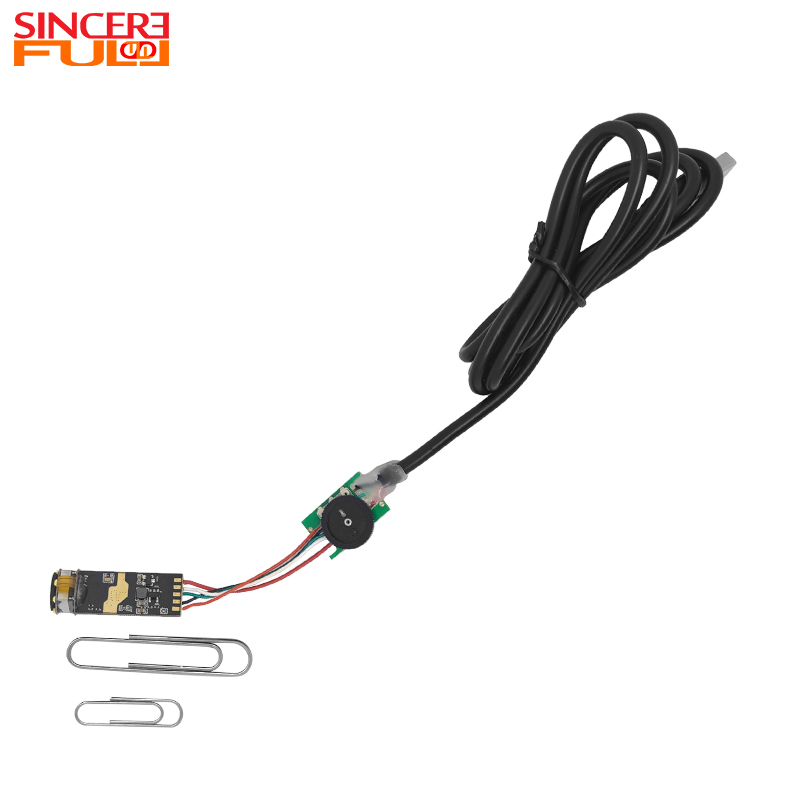

This 1080P HD CSI integrated industrial inspection endoscope camera module is specially designed for complex industrial scenarios, aiming to realize non-destructive inspection of internal equipment and precision components through high-precision visual technology. Its core parameters fully cover imaging performance, environmental adaptability, and structural stability: it is equipped with a high-performance CMOS color image sensor with 12MP high pixels, supporting 3840x3104 high-definition resolution and a maximum frame rate of 30FPS; the sensor size is 1/3.06 inch, with a pixel size of 1.12μmx1.12μm, paired with an F2.2 large aperture and an 80.9° wide field of view; the lens diameter is only 12.5mm, with a depth of field ranging from 3.5cm to infinity, supporting autofocus function; the lens integrates 8 LED beads for supplementary lighting, adopts a USB2.0 interface and is compatible with the UVC protocol; based on an integrated design, it is produced through SMT technology and AA process to ensure the structural stability and imaging consistency of the bare module.

Application Synergy of High Pixels and Lens Diameter

In actual industrial inspection scenarios, the combination of high pixels and a reasonable lens diameter is not a simple superposition of parameters but forms targeted technical advantages.

From the perspective of detail detection accuracy, 12MP high pixels are the core guarantee for capturing millimeter-level defects. In the defect inspection of precision components, issues such as tiny scratches on electronic components, small cracks in molds, and virtual solder joints require the module to have sufficient pixel resolution. The 3840x3104 resolution and 1.12μmx1.12μm pixel size, combined with the increased light intake from the F2.2 large aperture, can clearly present defect details even in complex light industrial environments, providing a reliable basis for quality control.

The 12.5mm lens diameter solves the industry pain point of "high-pixel modules being difficult to enter narrow spaces". Traditional endoscopes often face a dilemma: small-diameter lenses can penetrate spaces such as pipelines and mechanical gaps, but insufficient pixels lead to blurred details; high-pixel modules, due to their large lens size, cannot enter restricted areas. The 12.5mm slim lens of this module can easily penetrate into narrow spaces such as internal cavities of machine tools, gaps in automobile gearboxes, and small-caliber industrial pipelines. At the same time, high pixels ensure that complete details are retained within the limited field of view, meeting the dual needs of "being able to enter" and "seeing clearly".

In addition, this combination enhances adaptability to complex environments. The 80.9° field of view expands the single-frame detection range, reducing the number of lens movements; the 3.5cm to infinite depth of field and autofocus function, combined with 8 LED fill lights, enable quick locking of the inspection area and clear imaging even in dim internal equipment or deep pipelines. The plug-and-play feature of the USB2.0 interface and the stability brought by SMT and AA processes further reduce the operational threshold and maintenance costs in industrial sites.

Value Embodiment in Practical Application Scenarios

In the internal inspection of industrial equipment, the module can penetrate into the pipelines and cavities of large equipment such as engines and pumps. With high pixels, it captures wear and corrosion traces of internal parts, and the 12.5mm lens easily passes through complex pipeline structures, enabling comprehensive inspection without disassembling the equipment, thus significantly reducing downtime. In pipeline and container inspection, for issues such as industrial pipeline blockages, inner wall corrosion, and weld quality, the module can not only enter restricted-diameter pipelines through its small-diameter lens but also record every abnormality on the pipe wall with high pixels, providing accurate data for pipeline maintenance. In mechanical gap inspection, hidden hazards such as foreign object jams and component deformation in concealed parts like automobile gearbox gaps and joints of mechanical transmission components can also be timely discovered through its clear imaging.

Conclusion

This 1080P HD CSI integrated industrial inspection endoscope camera module accurately addresses the core pain point of "high detail requirements in narrow spaces" in industrial inspection through the optimized combination of 12MP high pixels and 12.5mm lens diameter. Its parameter design and process guarantees form a full-chain advantage from imaging accuracy to spatial adaptability, not only providing reliable visual solutions for various industrial inspection scenarios but also interpreting the key impact of parameter synergy on the practical value of industrial equipment.
