Sensor OH01A10 3.9mm USB 60FPS 720P HD Endoscope camera module with LED

This 3.9mm ultra-miniature USB OH01A10 detachable endoscope camera features a high-precision sensor with 10-100mm focus range and 1.25mm short focal length lens for clear imaging from near to mid-distance.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • SF-C1011USB-D3.9-720P60

  • SINCEREFIRST

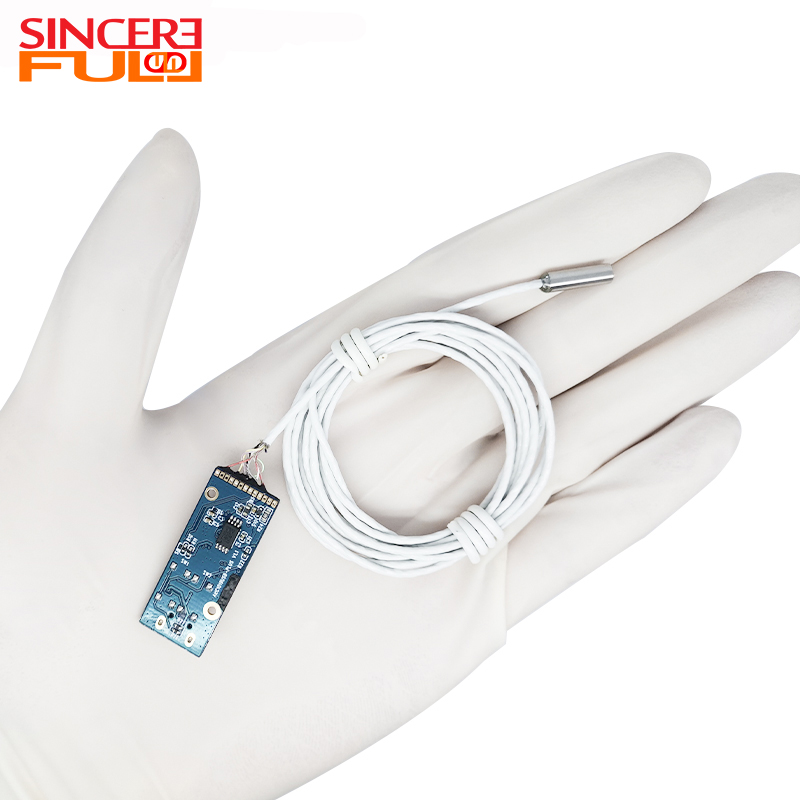

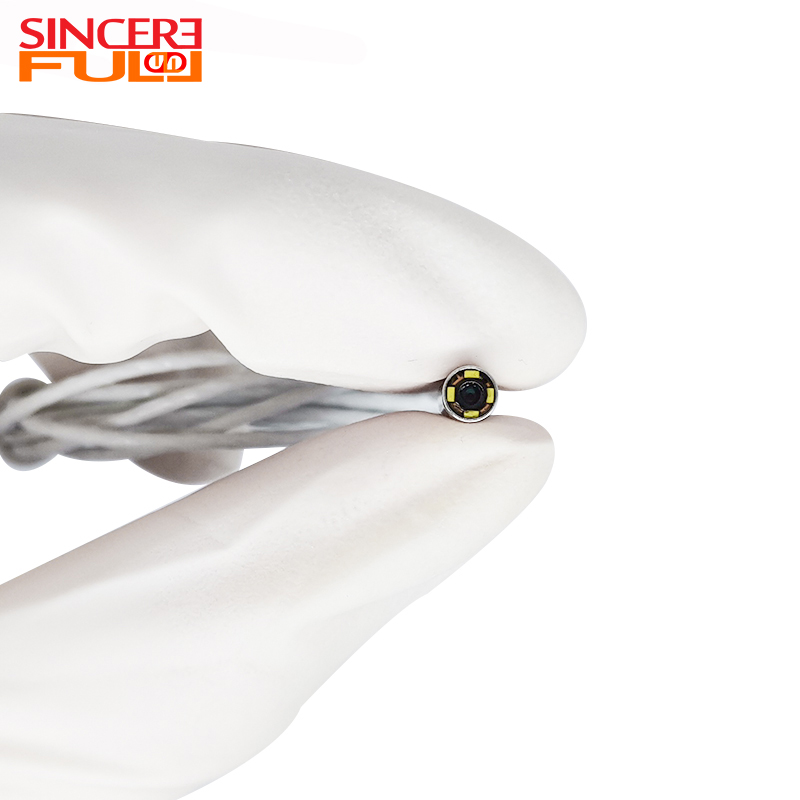

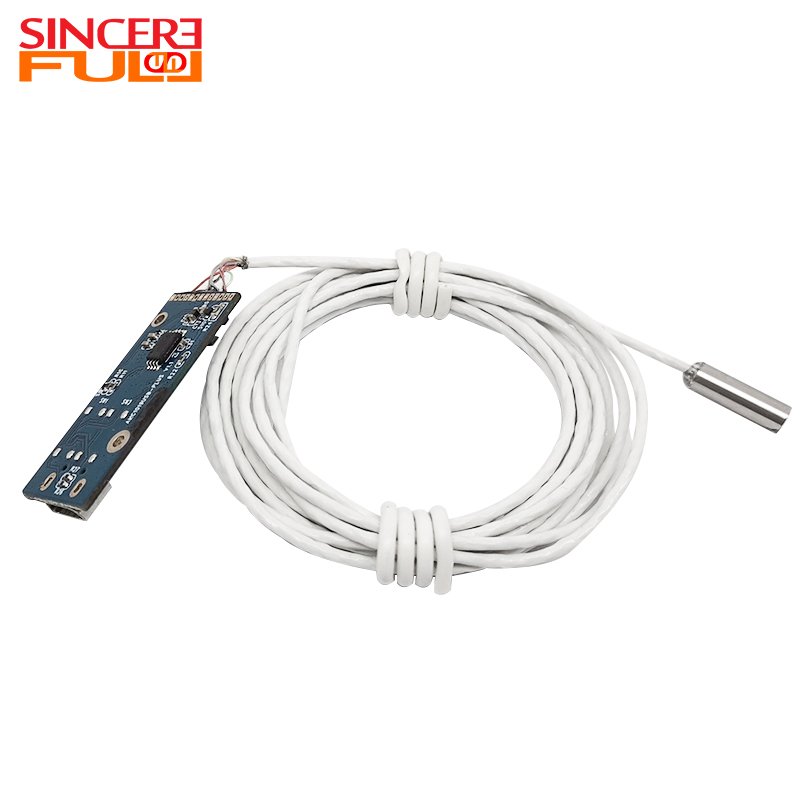

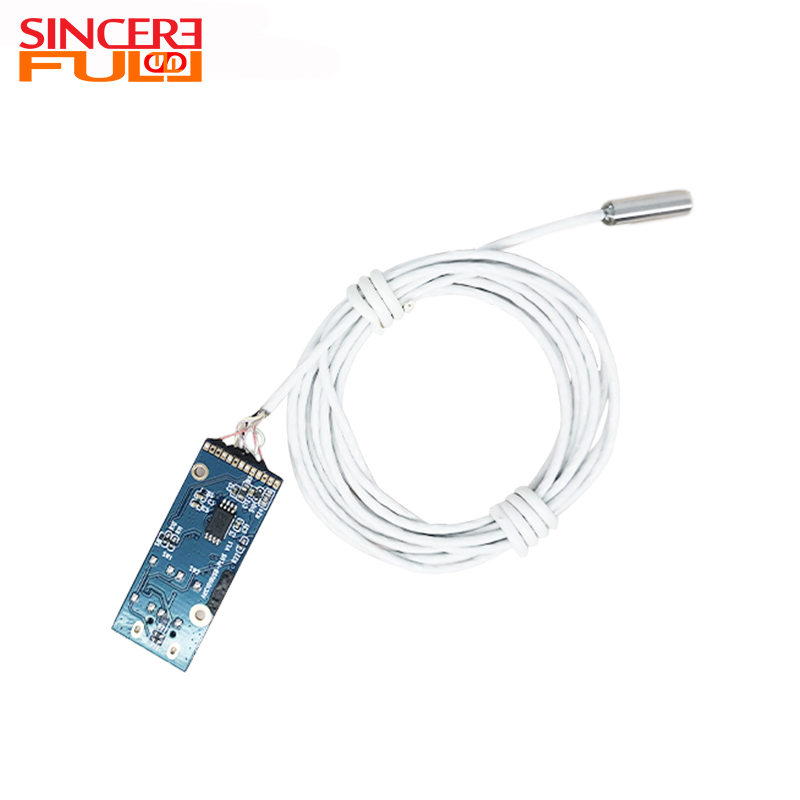

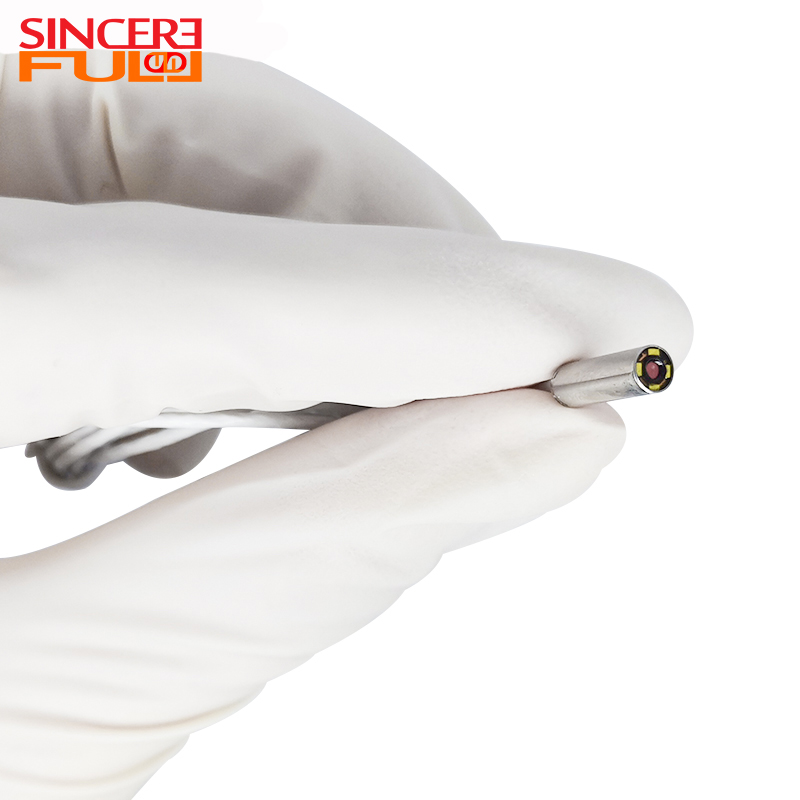

This 3.9mm ultra-miniature USB OH01A10 detachable endoscope camera features a high-precision sensor with 10-100mm focus range and 1.25mm short focal length lens for clear imaging from near to mid-distance. The waterproof mini endoscope camera (optional waterproof design available) delivers excellent optical performance with F4 aperture for balanced lighting and depth of field, plus a 75° wide viewing angle for comprehensive inspection coverage. With TV distortion controlled below -10%, this professional-grade borescope with light (integrated LED illumination) is ideal for industrial equipment inspection and medical endoscopy diagnosis. The USB endoscope camera supports USB2.0 high-speed transmission, making it perfect for applications requiring high-precision imaging in confined spaces. Its compact size and detachable design allow flexible use in various diagnostic and inspection scenarios.

SF-C0310USB-D3.9-PLUS-D90


Product Advantage ◢

1. F4 aperture: balance the amount of light and depth of field, adapt to the changing environment of light and dark.

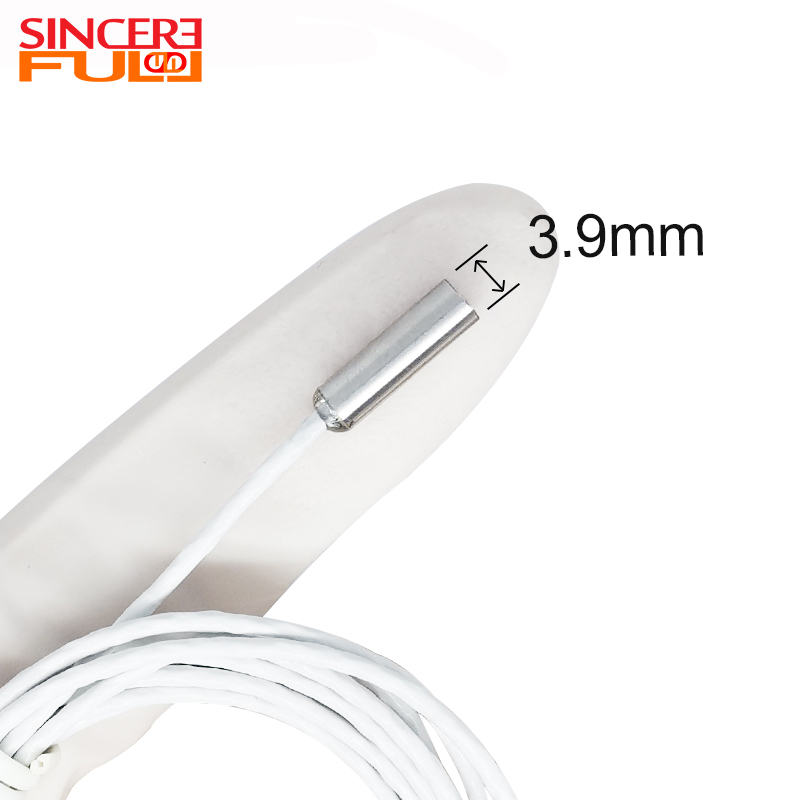

2.3.9mm ultra-fine diameter: easy access to narrow cavities (such as industrial pipes, human body cavity), reduce intrusion.

3. 75° Wide viewing Angle (diagonal) : A single frame covers a larger area, reducing blind areas.


Application of Endoscope Camera Module

1. Medical field: minimally invasive surgery, dental root canal therapy, endoscopy diagnosis.


2. Industrial testing: precision equipment internal inspection, pipeline/weld inspection, electronic product quality inspection.


3. Veterinary endoscopy: pet respiratory/digestive tract examination


4. Security detection: narrow space covert monitoring


Technical Parameters ◢

Product Name

Separate endoscope camera module

Basic tolerance

±0.1mm

DSP

USB2.0

Sensor

OH01A10

Focusing Range

10-100mm

Focal Length

1.25mm

F Number

4

FOV(D)

75°

TV Distortion

<-10%

LED

0402 White LED



FAQ


1. What is the difference between medical and industrial endoscope modules?

The medical module emphasizes biocompatibility, sterilization and high image quality, and needs to comply with FDA/CE certification; Industrial modules focus on durability (such as corrosion protection), wide temperature operation (-20°C to 70°C), and special light sources (such as UV).


2. How to evaluate the cost performance of the module?

For comprehensive resolution, durability, and after-sales support (such as medical modules that require calibration services from manufacturers), industrial scenarios can prioritize MTBF (mean time to failure) indicators.


3. What are the typical requirements for custom modules?

Common requirements include special dimensions (e.g., 1mm diameter), multispectral imaging (e.g., fluorescence navigation), and interface protocol adaptation (e.g., interfacing with DICOM systems).
