Miniature Endoscope Camera Module Selection Guide: Why is the OV6946 the Ideal Choice for Precision Inspection?

Miniature Endoscope Camera Module Selection Guide: Why is the OV6946 the Ideal Choice for Precision Inspection?

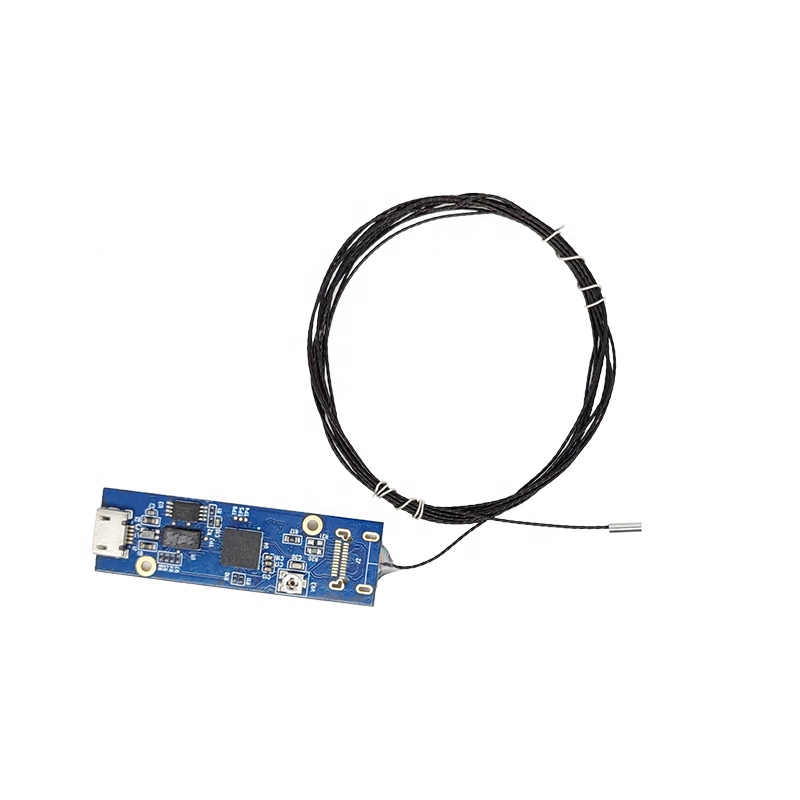

In fields such as industrial inspection, medical diagnostics, and scientific observation, miniature endoscope camera modules have become indispensable visual tools. Faced with a vast array of products on the market, how do you select a module truly suited for high-definition imaging in confined spaces? Taking the miniature endoscope camera module equipped with the OV6946 sensor as an example, we outline key selection criteria for you.

I. Core Parameter Interpretation: Performance Through Data

1. Sensor and Resolution Balance

The OV6946 sensor paired with 400×400 resolution achieves high-definition imaging within an extremely compact 1/18-inch footprint. This combination ensures:

- Ultra-miniaturization (diameter as small as 1.6mm) without sacrificing image detail reproduction

- Ideal suitability for scenarios demanding both space efficiency and precision, such as circuit board inspection and micro-component observation.

2. Field of View and Distortion Control

The 120°×87.5° wide field of view, paired with an optical design featuring TV distortion < -11%, resolves the common issues of “narrow viewing angles” or “image distortion” found in traditional endoscopes. This allows for larger areas to be coveredin a single scan during inspection, with no edge distortion. It accurately reproduces spatial relationships in scenarios like pipeline inspection and cavity observation.

3. Interface and Frame Rate Compatibility

The USB 2.0 interface supports 30fps full-frame rate transmission at 400×400 resolution, ensuring lag-free dynamic inspection. For applications requiring real-time observation of moving objects (e.g., fluid motion, mechanical vibration), this combination prevents stuttering or frame drops caused by transmission bottlenecks.

II. Application Scenario Recommendations

Prioritize the OV6946 module for scenarios involving:

Extremely confined spaces (<2mm diameter channels) requiring high-definition imaging

Simultaneous observation of overall areas and local details (wide field of view + HD compatibility)

Low-light operation (requires integrated LED illumination system)

Real-time recording and analysis of dynamic processes

Scenarios where alternative solutions may be considered:

Static photography only, no video streaming required

Fixed working distance with adequate lighting conditions

Extreme cost sensitivity with lower precision requirements

III. Selection Checklist

Before finalizing your choice, verify alignment with these requirements:

Size requirements: Does the module diameter meet your channel constraints?

Environmental Adaptability: Does the operating temperature range (-20°C to 70°C) cover your usage environment?

Illumination Requirements: Do the number and brightness of built-in LEDs meet your observation needs?

System Compatibility: Are the USB interface and power supply methods compatible with your existing system?

Software Support: Is a corresponding SDK or compatibility with universal capture software provided?

Conclusion:Selecting a miniature endoscope camera module fundamentally involves finding the optimal balance among spatial dimensions, image quality, and environmental adaptability. The OV6946 solution represents a thoroughly validated, mature choice at this equilibrium point. Whether for industrial precision inspection, medical device development, or scientific instrument integration, we recommend targeted parameter matching based on your actual observation scenarios, environmental constraints, and output requirements.
