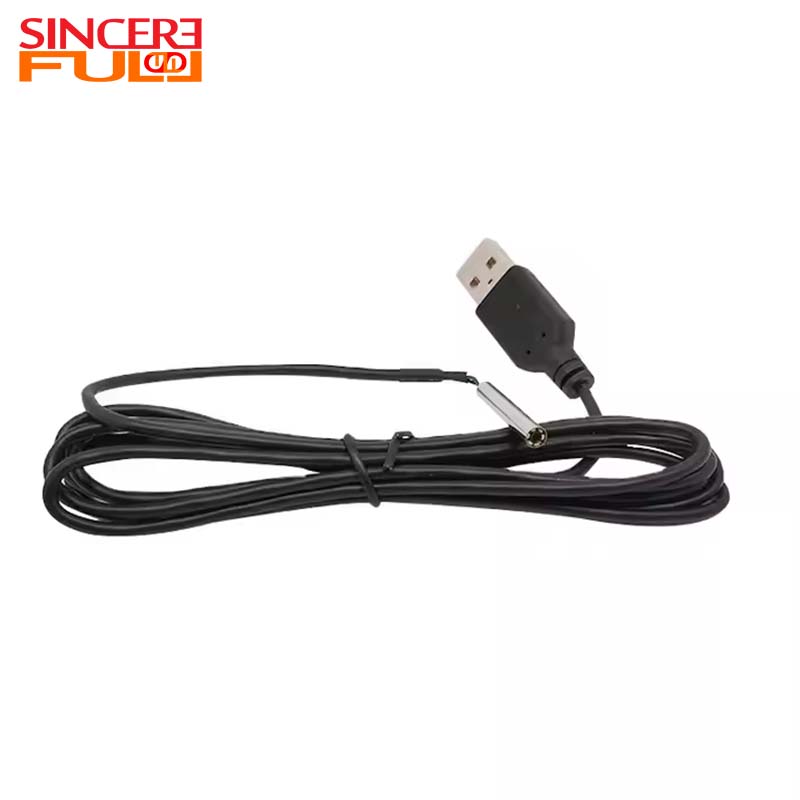

SF-N735V3 USB2.0
SINCEREFIRST

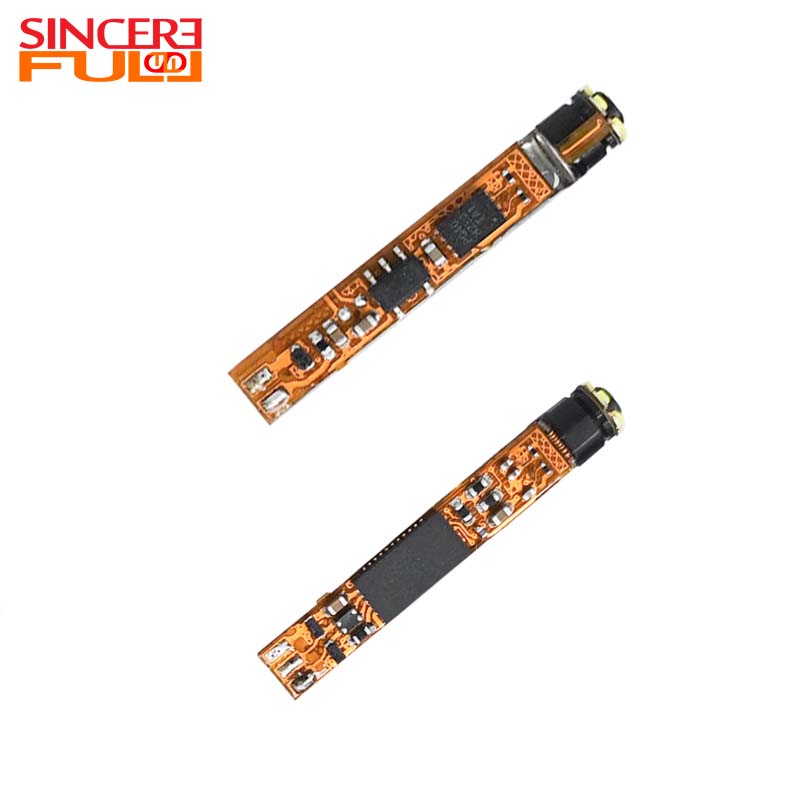

This is a Mini Camera Module featuring the OV9734 sensor, designed for versatile applications including Medical Endoscopic procedures. This USB2.0 camera module offers a compact and power-efficient solution for endoscope camera installations. The OV9734 leverages OmniVision’s PureCel™ technology, enabling it to capture stunning 720p HD video at 30 frames per second, or VGA video at 45 fps, while consuming 25% less power than its predecessors. With a pixel size of 1.75 μm x 1.75 μm and a size of 1/9 inch, it’s engineered for devices with ultra-thin bezels. This endoscope camera module features optional 6pcs LED lighting and supports multiple image sizes including full size (1280x720) and VGA (640x480). Its advanced capabilities include programmable controls for frame rate, gain, and exposure, automatic black level calibration, and defect pixel correction, ensuring optimal image quality. And this Mini Camera Module with OV9734 sensor is the suitable choice for a endoscope camera application. |  |
Product Advantage ◢
Captures 720p HD video at 30 fps and VGA at 45 fps.
1/9-inch size and ultra-thin bezel compatibility.
Consumes 25% less power than previous models.
Includes programmable controls, automatic black level calibration, and defect pixel correction.
Technical Parameters ◢

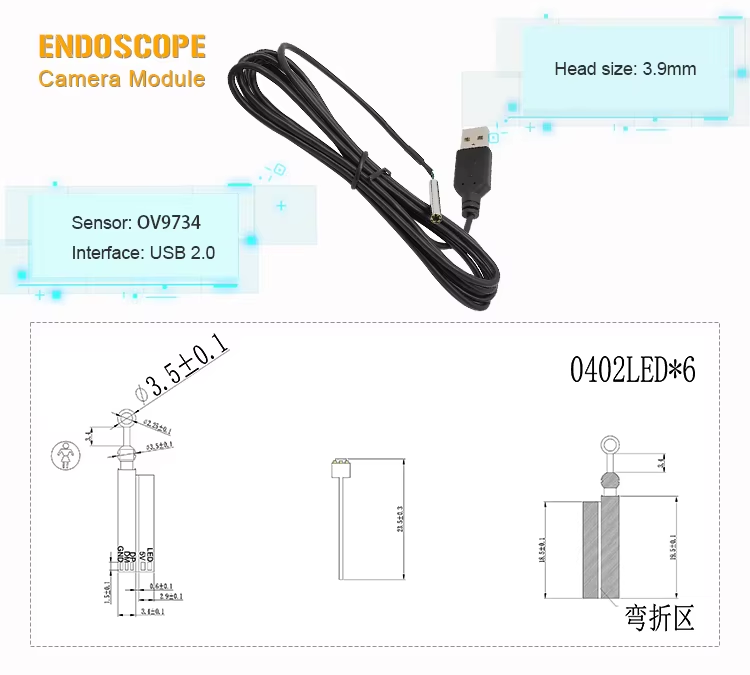

Product Name | USB Interface Medical Endoscope Camera Module |
Image Sensor | OV9734 |
Pixel Size | 1.75 μ m x 1.75 μ m |
Focusing Range | 1.5cm |
Sensor Size | 1/9 inch |
Fov(D) | 60° |
Product Type | Endoscope Camera Module |

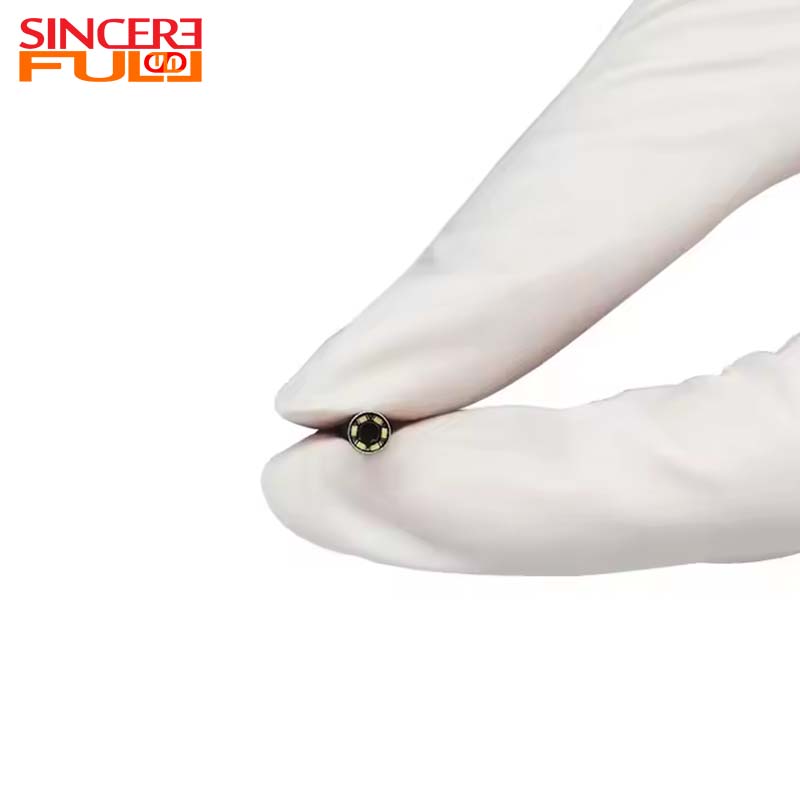

Led | 6pcs |
Warranty | 10 Years |
Feature | CMOS sensor Endoscope Camera Module |
Product Uses ◢
Medical endoscope (otoscope, laryngoscope, nasopharyngoscope)
Industrial inspection (household pipes, sewers, water pipes, gas pipes)
FAQ ◢
Q1: What is a endoscope camera module?
A1: The endoscope camera module is a tiny imaging device that sits at the end of the endoscope and is designed for medical professionals to capture high-resolution images of internal structures. The module consists of three main components: imaging sensors, which convert light into electronic signals; Lens assembly, focusing the image; And electronic components that process and transmit the captured data. These components work in concert to enable real-time visualization of features in the body to help doctors diagnose and treat. Through high-quality images, the endoscope camera module improves the accuracy and efficiency of medical inspection, which is essential for endoscopy.
Q2: Are you factory or trade company?
A2: We are a factory with independent production lines and a class 10 clean workshop to ensure product quality and meet diverse production needs. Our production team consists of highly trained skilled workers with extensive experience and efficient execution. The workshop environment is strictly controlled, in line with industry standards, to minimize dust and pollution, and to provide a good production environment for products. We are committed to providing high quality products to meet the diverse needs of our customers and continuously improve production efficiency. Through scientific management and technological innovation, we ensure that our products maintain excellent quality in all aspects.
Q3: How to control an endoscope camera module?

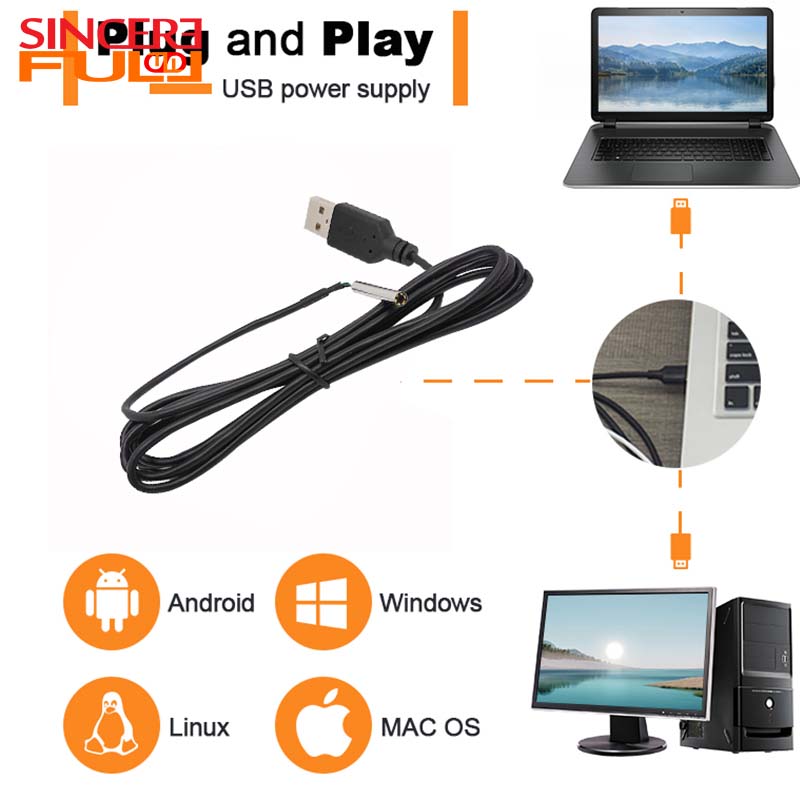

A3: To use an endoscope camera module, start by connecting it to a compatible device such as a smartphone, tablet, or computer. Once linked, carefully insert the camera into the area you wish to examine, whether it be a body cavity or a confined space. Adjust focus and lighting settings on the device to suit your specific examination needs. This process allows for detailed visualization and inspection of hard-to-reach areas.
Q4: What does an endoscope camera module see?
A4:To use the endoscope camera module, first connect it to a compatible device, such as a smartphone, tablet, or computer. Once connected, carefully insert the camera into the area you wish to inspect, whether it's a body cavity or a tight space. Adjust the focal length and lighting Settings on the device according to the specific inspection requirements. This process enables you to visualize and examine hard-to-reach areas in detail to obtain clear images and aid diagnosis or observation. With the Endoscopic camera module, you can explore complex environments more efficiently.
Q5: What can be customized for endoscope camera modules?
A5: The design of the endoscope camera module is flexible and users can choose to use it as an integrated unit or as a standalone component. In addition, the module offers a variety of diameter options to meet specific needs. Customization options further enhance its functionality, such as the possibility to add a stainless steel jacket for increased durability, and built-in LED lights for increased visibility during operation. This adaptability ensures that the endoscope camera module can be tailored to different medical applications and user preferences. Regardless of the scene, the module provides efficient and reliable visual support.
