SF-N735V3 D3.5
SINCEREFIRST

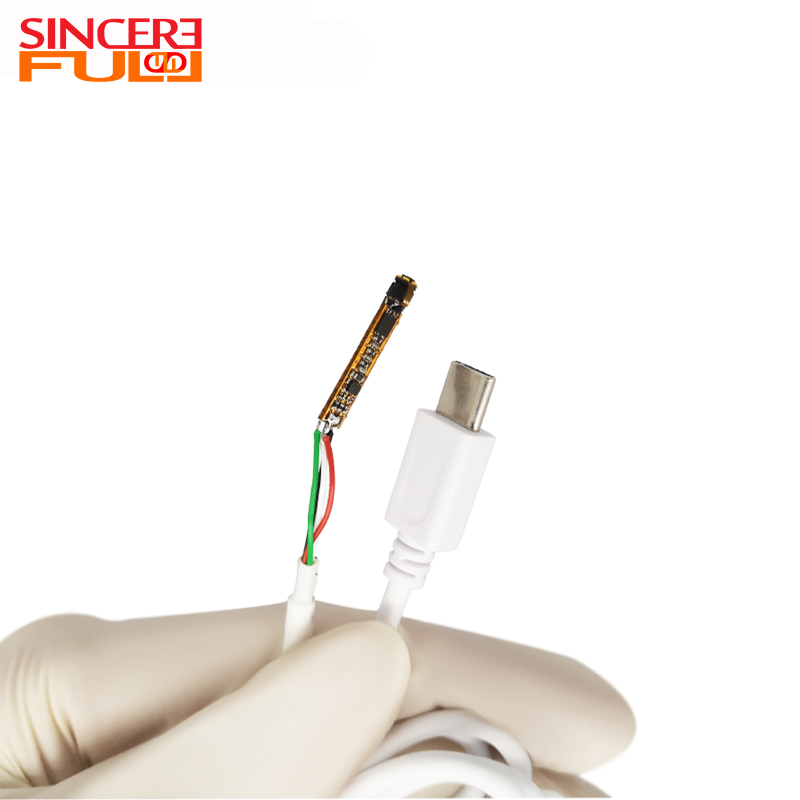

This is integrated 1MP high-definition CSI OV9734 image sensor medical endoscope camera bare module, which adopts the OmniVision OV9734 CMOS color image sensor, boasting excellent performance in image capture and presentation. It features an image resolution of 1280x720P and 1MP pixels, and can output smooth images at a frame rate of 30FPS, enabling clear capture of dynamic details. Whether it is a fast-moving target or subtle changes, it can accurately record them. The pixel size of 1.4μmx1.4μm, combined with a dynamic range of 68db, ensures high-quality imaging even in complex lighting environments. The module adopts an integrated design with a diameter of 3.5mm, which is compact and easy to use flexibly in narrow spaces. It is also equipped with 6 LED lamp beads to provide sufficient and uniform illumination for the shooting area. With DFOV 88°, it can cover a wide observation range and reduce observation blind spots. It uses a manual focusing method, with a focusing range of 10mm~40mm, allowing precise adjustment of the focus according to actual observation needs. Its maximum imaging circle is 4.8mm, ensuring the integrity and clarity of the imaging area. Equipped with a USB2.0 interface and supporting the UVC protocol, it enables stable and efficient data transmission, and is compatible with various devices to realize real-time transmission and processing of image data. It can meet the needs of quickly obtaining image data in different scenarios, whether in medical examinations or industrial inspections. |  |
1. Exquisite and Outstanding Image Presentation: Leveraging the powerful performance of OmniVision's OV9734 sensor, high-definition image quality and smooth frame rate complement each other, enabling precise capture of detailed changes in dynamic scenes. The unique pixel specifications and dynamic range design allow it to present clear images with rich layers and natural colors even in environments with uneven light.
2. Compact Structure with Powerful Illumination: The slim 3.5mm diameter combined with an integrated structure can easily go deep into narrow spaces for observation, offering excellent flexibility. The built-in 6 LED beads form a balanced light source, providing stable light support for observation in dim environments and ensuring imaging is not restricted by light.
3. Wide Observation Range and Precise Focusing: The 88° DFOV expands the observation field of view, reducing blind spots and improving overall observation efficiency. The manual focusing function can be flexibly adjusted within the range of 10mm to 40mm, and together with the 4.8mm imaging circle specification, it can clearly present the details of the target area.
4. Convenient and Efficient Connection and Adaptation: The USB2.0 interface combined with the UVC protocol not only ensures stable and smooth data transmission but also enables quick compatibility with various devices. It can realize real-time transmission and processing of images without complex debugging, meeting the needs of instant observation in medical, industrial and other scenarios.
1. Oral endoscope: Integrated into oral mirror equipment, its 3.5mm diameter allows flexible movement in the oral cavity. The 6 LED lamp beads can illuminate dark areas such as tooth gaps and gingival sulci.
2. Electronic endoscope: As the core module of electronic endoscopes, it is suitable for internal maintenance of electronic devices such as mobile phones and computers.
3. Industrial pipeline endoscope: As a core imaging component applied in small industrial pipeline endoscopes, it is suitable for detecting pipelines with smaller diameters.
Product Name | 30FPS Endoscope Camera Module |
Image Sensor | OV9734 |
Lens Size | 1/9 inch |
Pixel Size | 1.4um X 1.4um |
Maximum effective pixel | 1280(H)X720(V) |
Interface type | USB2.0 High Speed |
OTG protocol is supported | USB2.0 OTG |
Supported resolution and frame rate | 30fps VGA YUV MJPEG / 30fps QVGA YUV |
Lens | Hd lens/fixed focus |
Operating temperature | -20～70℃ |
