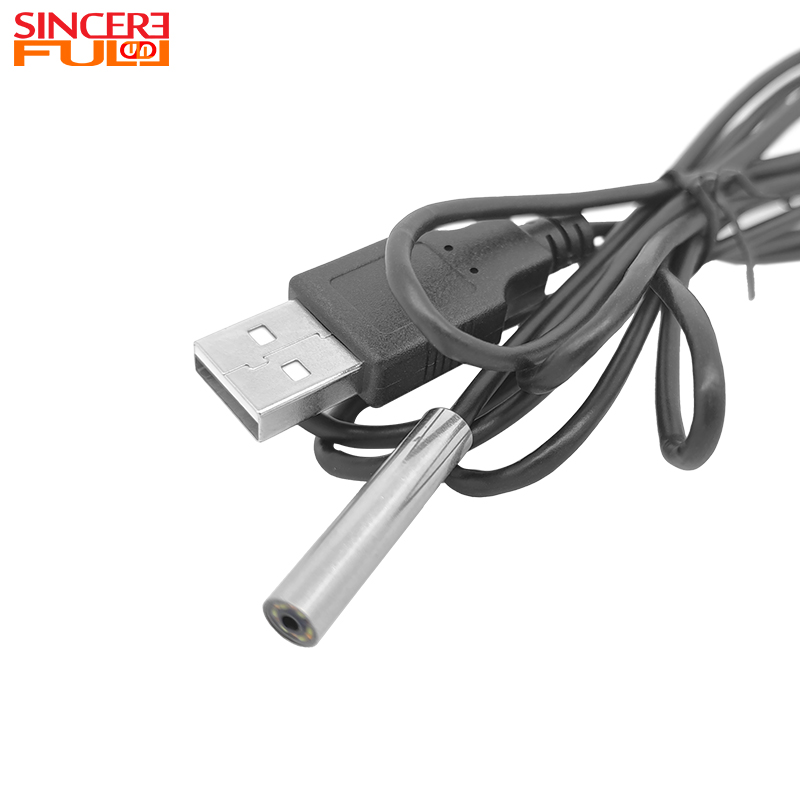

Industrial Endoscope Camera Module Selection Guide: Application Analysis of BF20A6 Sensor in Precision Inspection Fields ​

Industrial Endoscope Camera Module Selection Guide: Application Analysis of BF20A6 Sensor in Precision Inspection Fields

I. Why Choose the BF20A6 Sensor Module?

In industrial inspection, medical devices, and specialized security equipment, the selection of endoscope camera modules directly impacts imaging quality and system integration efficiency. The BF20A6 sensor module stands out as a highly adaptable vision solution across multiple fields due to its core advantages:

Compact Design: Ultra-small 1/10-inch size fits inspection channels ≤6mm diameter;

High Imaging Stability: 36dB signal-to-noise ratio combined with electronic rolling shutter effectively suppresses vibration and noise interference;

Strong Environmental Adaptability: Integrated adjustable LED illumination supports complex scenarios like darkness and oil contamination;

Plug-and-Play: USB 2.0 high-speed transmission protocol simplifies system integration and real-time observation workflows.

II. Three Key Application Scenarios for the BF20A6 Module

1. Industrial Endoscopic Inspection

Applicable Scenarios: Engine interiors, pipe welds, precision assembly quality control, turbine system inspection.

Recommended Configuration: Waterproof/oil-resistant optical coating (IP67) + Side-view/Straight-view lens options + Mechanical focus adjustment.

Advantages: Delivers clear, stable images even in oily, reflective, or confined spaces, enabling defect identification and dimensional measurement.

2. Medical Endoscopic Imaging

Applications: Disposable nasopharyngoscopes, dental endoscopes, urological instruments, minimally invasive surgical visualization.

Key Features: Medical-grade biocompatible encapsulation with optional disposable protective sheaths for sterile procedures.

Imaging Performance: Smooth real-time imaging at 30fps. Ultra-compact probe minimizes patient discomfort, ideal for observing intricate structures like ear canals and dental root canals.

3. Security & Specialized Equipment

Applications: Surveillance cameras, bomb disposal robot vision systems, drone slit detection, pipeline inspection robots.

Extended Capabilities: Optional wide-angle lens (≥120°), infrared LED illumination version, and shock-resistant structural design.

Scenario Advantages: Delivers uniform illumination and stable image output in low-light or dark environments, supporting rapid integration and mobile deployment.

In summary：

   The BF20A6 sensor endoscope camera module offers a cost-effective visual solution for industrial inspection, medical endoscopy, and specialized security applications through its miniaturized structure, high signal-to-noise ratio imaging, strong environmental adaptability, and plug-and-play integration advantages. Whether for precision inspection of engine cavities and pipeline welds, real-time monitoring during minimally invasive medical procedures, or complex environmental imaging in security surveillance and robotic vision, this module empowers users to enhance inspection efficiency and system reliability through its stable, clear image output and flexible customization capabilities.
