Building the Visual Core for Medical and Industrial Precision Inspection

1. Introduction: When High-Definition Imaging Meets Confined Spaces

In the intersection of minimally invasive medical procedures and industrial precision inspection, a common technical challenge increasingly arises: how to obtain sufficiently clear, smooth, and realistic visual information within a confined space only a few millimeters in diameter, in order to support clinical decisions or quality control. Traditional endoscope solutions often struggle to balance resolution, frame rate, and miniaturization—pursuing high-definition leads to bulky probes, while prioritizing miniaturization compromises image quality.

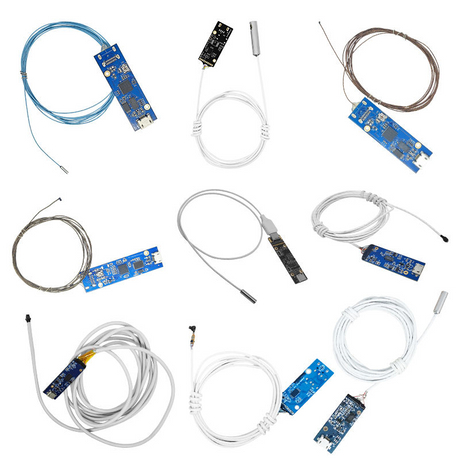

Addressing this engineering challenge, the 1080P separated HD endoscope module based on the OV2740 sensor provides a system-level visual solution. This guide analyzes the module across three dimensions: technical specifications, application adaptability logic, and selection decision framework, assisting medical device manufacturers and industrial inspection system integrators in evaluating its suitability for their systems.

2. In-Depth Analysis of Core Technical Parameters

2.1 Resolution and Frame Rate: The Value of Temporal Resolution in Dynamic Inspection

The module employs the OV2740 professional image sensor, delivering stable 1920×1080 full HD resolution combined with MJPEG high-efficiency encoding to achieve 60fps real-time preview at 1080P.

In industrial inspection scenarios, where tiny components on a conveyor move at 0.5 m/s, the 60fps sampling rate ensures inter-frame displacement is limited to 8.3 mm, providing sufficient overlapping features for defect recognition algorithms.

In medical laryngoscopy, the 60fps smoothness enables clinicians to follow vocal cord vibrations or swallowing motions in real time, avoiding misjudgment due to image lag.

Compared with 30fps solutions, 60fps halves the temporal sampling interval from 33.3 ms to 16.7 ms, effectively doubling dynamic analysis capability—crucial for fast-moving industrial debris or rapid biological tissue motion. This performance positions the module as a reliable camera endoscope HD solution for dynamic, high-resolution imaging.

2.2 Low-Light Imaging and Signal-to-Noise Ratio: Detail Recovery in Dark Environments

With a minimum illumination of 1 lux and a signal-to-noise ratio (SNR) of 38.3 dB, the module significantly surpasses consumer-grade imaging products. One lux corresponds to moonlight-level illumination, enabling imaging in fully enclosed, LED-lit cavities—whether industrial pipelines or natural body channels.

An SNR of 38.3 dB corresponds to a voltage-to-noise ratio of roughly 82:1, allowing approximately 220 discernible grayscale levels in an 8-bit digital system. When examining mucosal tissue or metal surfaces, this grayscale resolution can distinguish normal tissue from congestion or edema, and smooth surfaces from subtle corrosion. This capability is particularly valuable for early lesion screening or defect prediction in both clinical and engineering applications, making the module an effective cmos endoscope camera module choice.

2.3 Distortion Control and Macro Optics: Engineering Value of Geometric Fidelity

Optical distortion is strictly controlled within 2%, a key design for precision measurement and diagnostic scenarios. Wide-angle lenses naturally exhibit distortion, and conventional endoscopes often control it at 3–5%. Compressing distortion to 2% requires aspheric lenses and tighter optical assembly tolerances.

For tasks involving dimensional assessment—such as polyp diameter estimation, crack width evaluation, or component assembly deviation—2% distortion ensures geometric accuracy at image edges without complex software correction. Coupled with a 1/6-inch professional macro lens, fine structures are clearly resolved at close distances, making it suitable for both medical and industrial inspection.

2.4 Interface Protocols and Electrical Characteristics: Standardization for System Integration

The module fully supports UVC and USB2.0 OTG protocols, with TYPE-C / 5-Pin 1.0 interfaces. UVC abstracts the camera as a standard OS resource, allowing plug-and-play on Windows, Linux, Android, and macOS without custom drivers. This reduces software development cycles by over 60% and eliminates the need to maintain multiple drivers across platforms.

DC 5V power supply with 120–140 mA operating current keeps power consumption within 0.6–0.7 W, enabling USB-powered or battery-powered portable devices. Built-in ESD protection and rigorous reliability tests (temperature extremes, shock, vibration) ensure stable long-term operation in complex medical and industrial environments. Such robustness makes the module applicable as a dental endoscope camera module in clinical devices or an industrial endoscope camera module in precision inspection systems.

3. Core Application Scenario Adaptation

3.1 ENT and Oral Diagnostic Devices

Scenario: Laryngoscopes, oral endoscopes, and similar devices must access natural human cavities to visualize mucosa, tissues, and lesions, with high requirements for image fidelity, color accuracy, and real-time operation.

Adaptation Logic: 1080P resolution captures fine vascular patterns on vocal cords and early lesion boundaries; 60fps frame rate tracks swallowing and phonation dynamically; 2% low distortion ensures accurate clinical measurement; UVC plug-and-play allows developers to focus on specialty functions instead of imaging tuning.

Selection Considerations: Biocompatibility certification, sterilization adaptability, protocol compatibility with specialty imaging systems.

3.2 Dermatology and Aesthetic Devices

Scenario: Skin analyzers and blackhead removal devices require millimeter-scale observation of pores, fine lines, and spots.

Adaptation Logic: 1/6-inch macro lens maintains clarity at ultra-close working distances; 38.3dB SNR ensures noise-free imaging under low light; true color reproduction enables accurate diagnosis of pigmentation and inflammation; open camera solutions facilitate specialized image analysis algorithm development.

3.3 Oral Hygiene Visualization Devices

Scenario: Consumer oral care devices need to visualize interdental spaces and plaque for precise operation.

Adaptation Logic: Miniaturized 1/6-inch sensor fits into handheld device probes; 1080P resolution clearly shows plaque and food residues; 60fps frame rate ensures smooth user experience; UVC+OTG allows direct smartphone connection.

3.4 Industrial Confined Space Inspection

Scenario: Inspecting inside precision equipment, pipelines, or PCB undersides for defects, foreign materials, or damage.

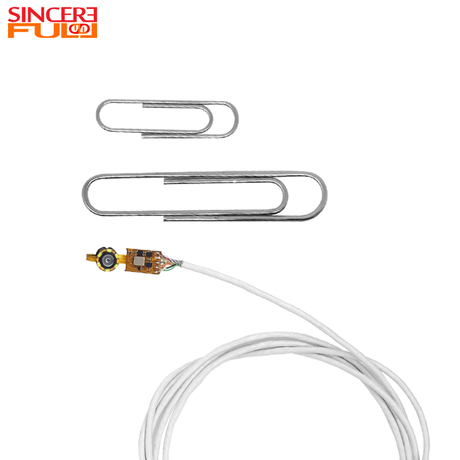

Adaptation Logic: 3.3mm probe diameter fits most industrial gaps; 2% distortion maintains measurement accuracy; 1 lux low-light capability with LED lighting addresses completely dark environments; robust against temperature extremes, vibration, and drops.

4. Technical Framework for Module Selection

4.1 Eligibility Assessment

Accessibility Verification: Measure minimum inner diameter and confirm probe compatibility; assess patient comfort for medical use.

Imaging Task Definition: Determine if qualitative observation or quantitative measurement is needed; apply calibration algorithms if required.

Working Distance Test: Validate 1/6-inch macro lens image clarity at typical distances.

4.2 Environmental Adaptation Assessment

4. Lighting Verification: Confirm performance under natural or artificial low-light conditions.

5. Protection Level Confirmation: Verify sterilization tolerance for medical use and dust/water resistance for industrial environments.

4.3 System Integration Compatibility

6. Platform Testing: Validate UVC plug-and-play, MJPEG/YUV2 decoding, and frame rate stability across operating systems.

7. Open-Source Evaluation: Assess access to sensor registers, image parameter adjustment, and custom ISP pipeline integration.

5. Why Choose SincereFirst as a Partner

SincereFirst, with over 30 years of optical imaging experience, collaborates with multiple Fortune 500 companies and exports products to over 200 countries. Operating Class 10/100 COB cleanrooms and using advanced active alignment (AA) manufacturing, the company ensures consistent optical performance.

Medical device support: biocompatibility testing, ISO 10993 certification, sterilization validation.

Industrial support: cable length customization, interface modification, temperature screening.

Compliance: FCC, CE, RoHS certified.

SincereFirst is not only a module supplier but a reliable partner for visual systems, helping products see clearer, diagnose accurately, and reach higher standards.

Conclusion：

The value of selecting the 1080P separated HD endoscope module based on the OV2740 sensor does not lie in maximizing individual parameters, but in achieving a balanced, system-level design: 1080P@60fps meets the temporal resolution requirements for dynamic inspection; 1 lux low-light performance and 38.3 dB SNR ensure faithful detail reproduction in dark environments; 2% low distortion preserves geometric fidelity; and UVC protocol simplifies system integration. The core significance of this technical combination is that it establishes a reliable visual information acquisition standard for both medical diagnostics and industrial inspection.

Successful module selection stems from clearly answering fundamental questions about the target application: “How fast is the motion?”, “How dark is the environment?”, “How fine are the details?”, and “How deep is the integration?” When these answers align intrinsically with the technical specifications, the selection process transcends passive parameter comparison and evolves into a proactive, professional practice of defining a complete system solution.
