As a key piece of equipment in fields such as criminal investigation and security, police reconnaissance endoscopes focus on four core requirements: concealed accessibility, high-definition forensics, flexible operability, and practical reliability. The 720P endoscope camera module, with its targeted parameter design and structural optimization, accurately meets the practical needs of police endoscopes. It forms significant advantages in reducing device size, expanding observation range, and simplifying integration processes, making it an ideal core component for police flexible tube endoscopes.
Police reconnaissance often requires penetrating concealed spaces such as boxes, car gaps, pipelines, and dark rooms without damaging the environment or exposing oneself—posing strict demands on probe size and observation coverage. The 1.5mm ultra-fine lens diameter of the 720P module, compared to the 4mm-6mm probe specification of conventional police reconnaissance endoscopes, can more easily pass through narrow channels (e.g., gaps in car seats, reserved holes in equipment casings) to achieve "trace-free reconnaissance." Paired with a 120° ultra-wide field of view—far exceeding the minimum 70° field of view standard for police endoscopes—it can significantly reduce observation blind spots, quickly cover the entire view of the target space, and improve reconnaissance efficiency without moving the probe or increasing exposure risks.
Meanwhile, the ultra-small 1/18-inch sensor size and 1.008 μm×1.008 μm pixel specifications ensure probe miniaturization while maintaining light-sensing performance. Even in low-light environments such as dark rooms, it can work with lighting modules to deliver clear imaging, meeting the needs of police scenarios involving non-visible light illumination.
The core value of police reconnaissance lies in obtaining admissible image evidence, which demands high standards for imaging clarity, smoothness, and detail restoration. The 720P module supports stable output of 720×720 resolution and 720P@30FPS, with smooth dynamic images free of motion blur—fully complying with the ≥720P imaging standard for police endoscopes and enabling clear capture of fine features of target objects.
Equipped with a 0.5MP CMOS sensor and manual focus function, it can precisely adjust imaging clarity to meet both the need for distinguishing small targets at short distances (≤50mm) and wide-area observation at medium-to-long distances (≥1000mm), covering the full range of police reconnaissance scenarios from detail confirmation to environmental scanning. Additionally, the module’s color imaging capability truly restores color information of the target environment, providing richer visual basis for evidence differentiation and scene reconstruction—outperforming single black-and-white imaging solutions.

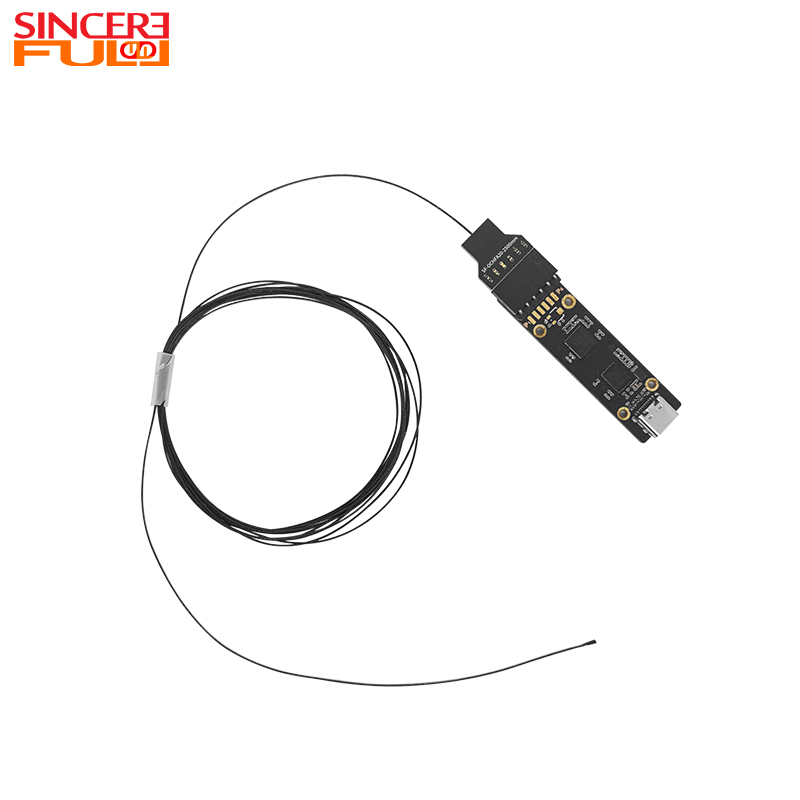

Police endoscopes require portability, ease of operation, and module compatibility to adapt to practical scenarios such as individual soldier operations and rapid deployment. The 720P module adopts a Separated design: it connects to the DSP board via a USB 6PIN header and outputs signals through a Type-C interface. This allows flexible integration into the controller of police endoscopes, enabling seamless connection with components such as WIFI wireless transmission modules and displays, and simplifying the overall structural design of the device.
Supporting USB 2.0 speed and UVC protocol, it can quickly adapt to the control terminals of police endoscopes without additional drivers, realizing plug-and-play functionality and improving device deployment efficiency. Meanwhile, the application of SMT technology and AA (Active Alignment) process ensures the module’s structural stability—it can withstand slight vibrations and friction during the carrying and use of police equipment, meeting the reliability requirements of police endoscopes (e.g., durability against cable bending and probe flexing).
Police equipment must pass strict compliance certifications and environmental resistance tests to cope with complex and variable practical working conditions. The 720P module has obtained multiple international testing and certifications including CE, FCC, RoHS, and Reach. In terms of electrical safety and environmental compliance, it meets mainstream global standards, enabling it to satisfy the access requirements of police equipment in different regions.
Its precision manufacturing process and sealing design can adapt to the protection level requirements of police endoscopes (e.g., IP67 dust and water resistance for the probe), maintaining stable operation in harsh reconnaissance environments such as humidity and dust. Furthermore, the module’s lightweight design—leveraging its ultra-small sensor and Separated structure—helps reduce the overall weight of police endoscopes, aligning with the core requirement of "portability and durability" for individual soldier carrying equipment and improving the operational flexibility of law enforcement personnel.
