4.6mm Diameter CMOS Image Sensor Inspection Endoscope Camera Module

This 4.6mm endoscope camera module features a 720P CMOS sensor, 10-100mm focus range, 75° FOV, and IP67 waterproof rating, making it ideal for inspections in plumbing and automotive industries. Four LEDs enhance visibility.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • SF-C0310TV-D4

  • SINCEREFIRST

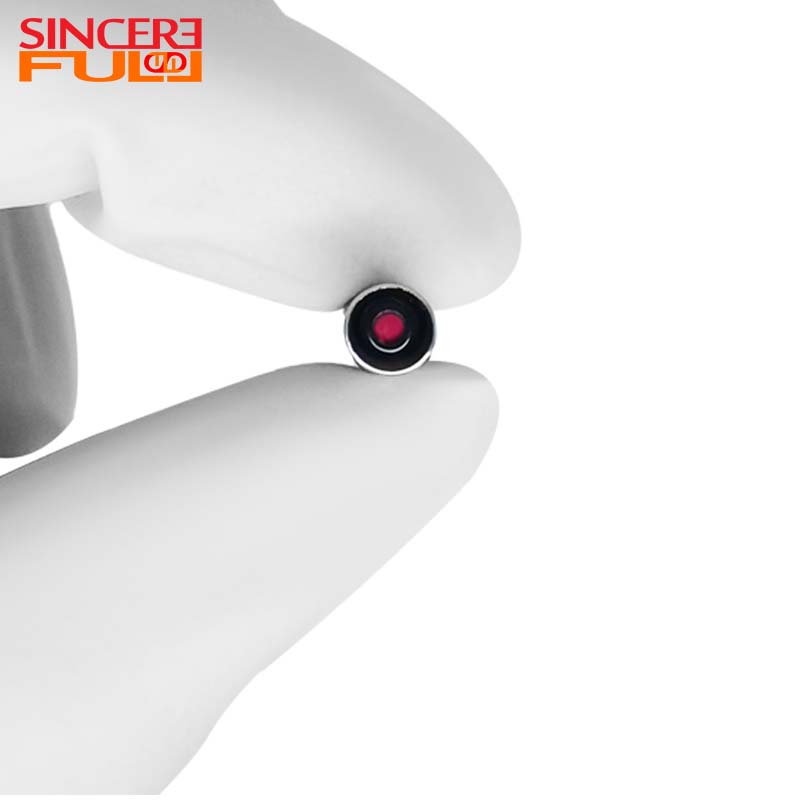

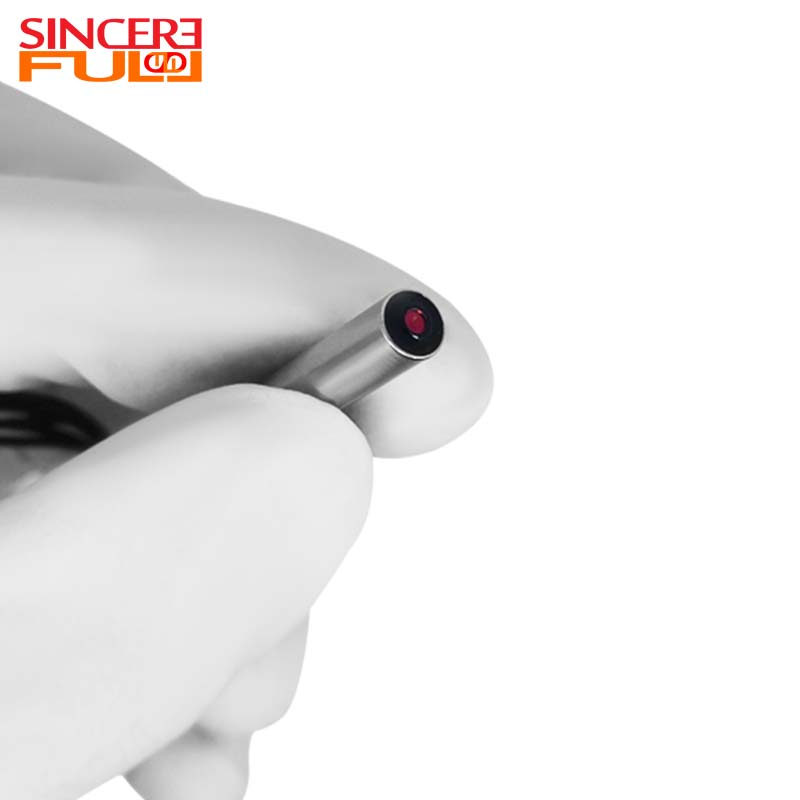

This is a 4.6mm Diameter Camera Module, This endoscope camera module featuring CMOS Image Sensor,boasts a resolution of 720P (1280x720 pixels) .With a focusing range of 10mm to 100mm and a focal length of 1.25mm, the Inspection Endoscope Camera Module allows for clear imaging of detailed structures in hard-to-reach areas.  The camera is equipped with a wide Field of View (FOV) of 75°, enabling comprehensive coverage during inspection tasks.  the TV distortion is kept to an impressive minimum of less than -10%, ensuring that the visuals are accurate and reliable.  this Inspection Camera Module comes with four 0402 white LEDs, illuminating the inspected areas effectively.  With a rugged design rated at IP67 for waterproofing, this Image Sensor Camera Module is suitable for use in a variety of challenging environments, making it an essential tool for professionals conducting inspections in plumbing, automotive, and other industrial settings.

4.6mm Diameter Camera Module


Product Advantage ◢

Resolution: Utilizes a CMOS Image Sensor for 720P (1280x720) clarity.

Focus Range: Supports focusing from 10mm to 100mm, ideal for intricate inspections.

Lighting and Durability: Equipped with four 0402 white LEDs and IP67 waterproof rating for reliable use in various environment


Application Of Endoscope Camera Module

1. Industrial testing: pipeline/mechanical internal flaw detection, welding seam testing, automotive engine, gearbox internal maintenance.


2. Medical and scientific research: minimally invasive surgery assisted imaging, laboratory equipment or biological sample observation.


3. Security and anti-terrorism: search for contraband in small Spaces, life detection in disaster rescue.


Technical Parameters ◢

Product Name

Endoscope Camera Module

Features

IP67 waterproof Endoscope Camera

DSP

USB2.0 UVC

Sensor

VGA

Focusing Range

10mm-100mm

Waterproof

IP67

Focal Length

1.25mm

Trademark

SINCERE FIRST

F Number

4

Fov(D)

75°



FAQ


1. What is the difference between medical and industrial endoscope modules?

The medical module emphasizes biocompatibility, sterilization and high image quality, and needs to comply with FDA/CE certification; Industrial modules focus on durability (such as corrosion protection), wide temperature operation (-20°C to 70°C), and special light sources (such as UV).


2. Why does the image appear color bias?

The filter may need to be corrected or replaced by software due to uncalibrated white balance, mismatch of light source color temperature (such as LED mixed with daylight), or aging of the sensor.


3. How to evaluate the cost performance of the module?

For comprehensive resolution, durability, and after-sales support (such as medical modules that require calibration services from manufacturers), industrial scenarios can prioritize MTBF (mean time to failure) indicators.


4. Advantages of AI-assisted endoscope modules?

It integrates real-time lesion labeling (such as polyp recognition), surgical navigation (blood vessel positioning), automatic exposure and other functions, and relies on edge computing chips (such as NVIDIA Jetson) for low latency processing.


5. Why do 4K modules need special transport protocols?

4K@30fps Data volumes up to 12Gbps require Thunderbolt or fiber optic transmission, and some medical devices use compression technologies such as HEVC to reduce bandwidth requirements.
