In industrial pipeline inspection, precision electronics repair, automotive diagnostics, and medical observation, selecting the right imaging system involves balancing multiple engineering constraints: extremely narrow channels, short working distances, and limited lighting, while requiring clear, stable, real-time imaging. When conventional endoscopes cannot fit, a 4.5mm diameter, flexible, 30fps miniature endoscope module becomes a key solution.
This guide focuses on the BF20A6-based 4.5mm module, analyzing physical size, structural design, imaging performance, and integration, while incorporating keywords: hd endoscope, medical endoscope camera module, miniature inspection camera module, CMOS camera endoscope, 4.5mm endoscope camera module.
The module’s 4.5mm probe can easily enter channels ≥5mm, including micro-holes, thin pipes, or equipment gaps. Compared to conventional 8mm+ endoscopes, it extends inspection capability to tighter spaces, such as smartphone internals, laptop cooling channels, automotive fuel injector paths, or medical microcavities.

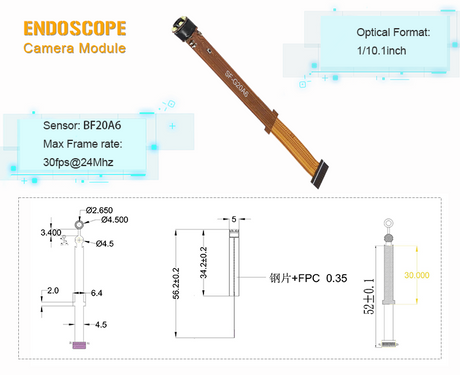

Designers must consider the probe’s rigid segment (≈30mm) and total length (52±0.1mm). For angled or curved pathways, the flexible FPC + steel structure must match the bend radius. Physical testing is recommended for repeated insertion or long-distance access.
The probe’s steel-FPC hybrid structure provides axial rigidity while allowing controlled bending. This is critical for navigating complex paths, such as engine compartments or precision instruments.
The standard FPC connector integrates directly with control boards. Tight tolerance control (±0.1mm) ensures assembly consistency. For frequent connection or vibration-prone environments, additional connector fixation may be needed.
The BF20A6 CMOS sensor (1/10.1”) provides 720P output with 36dB SNR, aided by six 0402 LED ring lights for low-light imaging. The fixed-focus lens simplifies operation for working distances of 10–50mm.
30fps frame rate ensures smooth imaging for dynamic inspection. For static inspection, lower frame rates may suffice. As a CMOS camera endoscope, the module balances clarity, motion response, and low-light capability effectively.

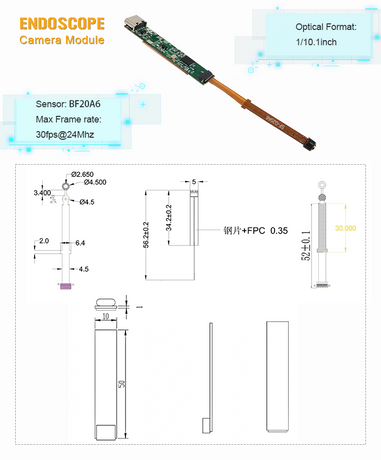

The module uses a standard FPC output (typically DVP parallel interface). For USB plug-and-play, optional USB adapters are available. Ensure compatibility with host IO voltage, clock frequency, and data format.
Low power consumption makes it suitable for battery-operated devices. LEDs are PWM-dimmable for energy optimization. Medical applications require ISO 10993 compliance; CE, FCC, RoHS certification facilitates global deployment.
Industrial Pipelines: 4.5mm endoscope camera module for micro-channel inspection, corrosion, or blockages. LED uniformity and probe bend life are critical.
Electronics Repair: Miniature inspection camera module for solder joint and connector inspection. Clear imaging at ~10mm distance is essential.
Automotive Inspection: HD endoscope for engine combustion chambers, AC ducts, or injector paths. Focus on vibration resistance and frame rate.
Medical Observation: Medical endoscope camera module for ENT, oral, or shallow cavity examination. Biocompatibility and disinfection are key.
Selecting a 4.5mm miniature endoscope module involves mapping inspection challenges—narrow channels, distance, darkness, and integration—onto engineering parameters such as probe size, flexibility, frame rate, illumination, and interface. The BF20A6-based 4.5mm CMOS camera endoscope achieves a practical balance of miniaturization, imaging stability, and integration convenience, making it a reliable choice for narrow-space inspection across industrial, automotive, electronics, and medical fields.
SincereFirst provides full-service support, from standard modules to custom solutions, including FPC length, connector type, and LED configuration, ensuring optimal performance for your application.
