Many customers do not choose an endoscope camera module only by resolution. In real medical, dental, veterinary and industrial inspection devices, the questions are usually more practical: Will the image stay smooth when the probe moves? Is the viewing area wide enough? Can the module work in wet or cleaning-sensitive environments? Will the LED brightness cause reflection? Can the brightness be adjusted for different surfaces?

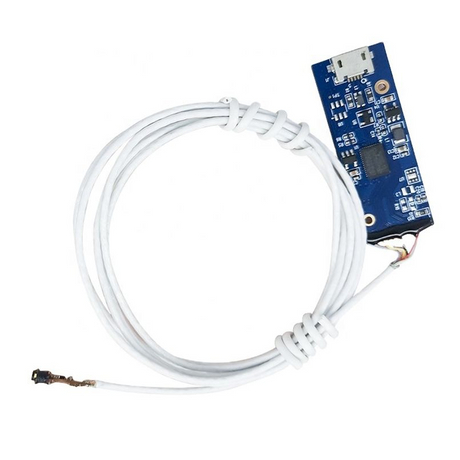

The SF-C1019USB-1000P-D3.9-PLUS is a 3.9mm USB endoscope camera module designed for compact close-range visualization. It uses the ES101 sensor, supports YUV / MJPEG output at 1000×1000@60fps, integrates 4pcs 0402 LEDs, supports IP67, and offers multiple FOV and focusing range options. Compared with the PRO version, this PLUS version is better positioned for projects where custom dimming may be required.
For OEM customers, this model is suitable when the project needs compact size, square-format imaging, smooth live viewing, waterproof support and more flexible lighting control.
Lighting is one of the most common pain points in endoscope camera module projects.
If the LED brightness is too weak, the image may be dark and unusable. If the brightness is too strong, wet, shiny, metallic or curved surfaces may create reflection and overexposure. If the working distance changes, one fixed brightness level may not work well in every scene.
This is why some OEM customers prefer a module that can support custom dimming evaluation. It allows the final device to adjust brightness according to the target surface, viewing distance and user environment.
The SF-C1019USB-1000P-D3.9-PLUS is suitable for customers who need to evaluate LED brightness control as part of their device design, instead of using a fixed-brightness module only.
The SF-C1019USB-1000P-D3.9-PLUS is best positioned as a compact 3.9mm 1000P USB endoscope camera module with IP67 support and project-based dimming customization potential.
It is suitable for projects that need:
1000×1000 square-format image output
60fps smooth live video
D3.9 compact camera head
Built-in 4pcs LED illumination
IP67-supported structure
Multiple FOV options
Multiple focusing range options
Custom dimming evaluation
USB-based OEM integration
It is not positioned as a finished consumer endoscope device. It is an OEM camera module that should be evaluated together with the customer’s final device structure, host system, lighting requirement and application environment.
The D3.9 camera head helps OEM customers design compact medical, dental, veterinary or industrial inspection devices. It offers a balance between small diameter, LED integration and IP67-supported structure.
The ES101 sensor supports 1000×1000 output. This square-format image can be useful for cavity, tube, circular or center-focused inspection scenes where customers want balanced vertical and horizontal visibility.
The 60fps output helps provide smoother real-time viewing when the probe moves during operation. This matters for handheld tools, portable inspection devices and applications where the user constantly adjusts the viewing angle.
The module integrates 4pcs 0402 LEDs for local illumination. This helps solve the common problem of dark cavities and enclosed inspection spaces.
The PLUS version can be evaluated for custom dimming requirements. This is useful when customers need brightness adjustment for reflective surfaces, different working distances or device-level user control.
The module supports IP67, making it suitable for projects that may involve moisture, cleaning, liquid exposure or harsh inspection environments. Final waterproof performance should still be verified after assembly into the complete device.
The module supports 95°, 100°, 110°, 120° and 140° FOV options. This helps customers choose between focused observation and wider cavity visibility.
The module supports 4–10mm, 5–50mm, 5–100mm and 10–100mm focusing ranges. This helps match the camera module to real working distance instead of forcing one lens configuration into every project.
For wet, shiny, metallic or curved surfaces, fixed LEDs may create overexposure. The PLUS version is more suitable when the customer wants to evaluate dimming control.
The D3.9 structure with IP67 support makes this module suitable for compact devices where waterproof or moisture-resistant design is important.
1000×1000@60fps output helps provide smoother real-time viewing during operation.
Multiple FOV options allow customers to evaluate the right balance between wide viewing and target detail.
Multiple focusing range options help customers select a configuration based on actual working distance.
The SF-C1019USB-1000P-D3.9-PLUS can be evaluated for:
Industrial borescope devices
Pipe and cavity inspection tools
Medical visualization device development
Dental and oral inspection devices
Veterinary endoscope systems
Portable USB inspection devices
Maintenance inspection tools
OEM endoscope device integration
For medical-related projects, this module should be treated as an imaging component. Final medical compliance, cleaning validation, safety testing and certification should be evaluated at the complete device level.
Choose this model when your project needs:
D3.9 compact camera head
1000×1000@60fps output
Built-in LED illumination
IP67 support
Optional custom dimming evaluation
Multiple FOV choices
Multiple focusing range choices
USB image output
Compact separate-type integration
It is especially suitable for projects where lighting control is important and a fixed-brightness module may not be flexible enough.
Choose another model if your project needs:
A lower-cost fixed-brightness version
A smaller diameter below 3.9mm
2MP, 5MP or 12MP image output
Long-distance viewing
Finished plug-and-play consumer device
Advanced AI recognition or measurement-level inspection
A special connector or mechanical structure not supported by the current configuration
If the project does not require dimming, the PRO version may also be evaluated.
After receiving samples, customers should test:
Image smoothness during probe movement
LED brightness at actual working distance
Reflection on wet, shiny or metallic surfaces
Dimming behavior if customized
Selected FOV in the real cavity
Focus clarity in the selected range
IP67 performance after final assembly
Cable length and signal stability
Host compatibility with YUV / MJPEG output
Mechanical fit of the D3.9 front-end structure
Sample testing should be performed in the real device structure or a simulated application environment, not only on a desktop.
Before requesting quotation or samples, customers should provide:
Target application
Medical, dental, veterinary or industrial direction
Required diameter
Required image format
Working distance
FOV preference
Need for fixed or adjustable LED brightness
Waterproof requirement
Cable length requirement
Host device or software platform
Available board space
Sample quantity
Estimated production volume
Mechanical drawing if available
This information helps SincereFull evaluate whether SF-C1019USB-1000P-D3.9-PLUS is suitable or whether another endoscope camera module should be recommended.
The SF-C1019USB-1000P-D3.9-PLUS is a compact 3.9mm USB endoscope camera module for customers who need 1000×1000@60fps output, IP67 support, built-in lighting and project-based dimming flexibility.
Its strongest value is not only 1000P resolution. The real value is the combination of square-format imaging, smooth live video, compact diameter, waterproof support, flexible FOV, flexible focus range and optional lighting control for OEM endoscope device development.
Need a 3.9mm 1000P USB endoscope camera module with IP67 support and optional dimming evaluation?
Send your application, working distance, target surface, FOV preference, waterproof requirement and lighting control needs to SincereFull. Our team can help evaluate whether SF-C1019USB-1000P-D3.9-PLUS fits your project.
