Many endoscope device customers do not only need a camera module. They need a complete imaging path that can fit their device structure, connect with the right board, support portable operation and deliver usable images in dark narrow spaces.

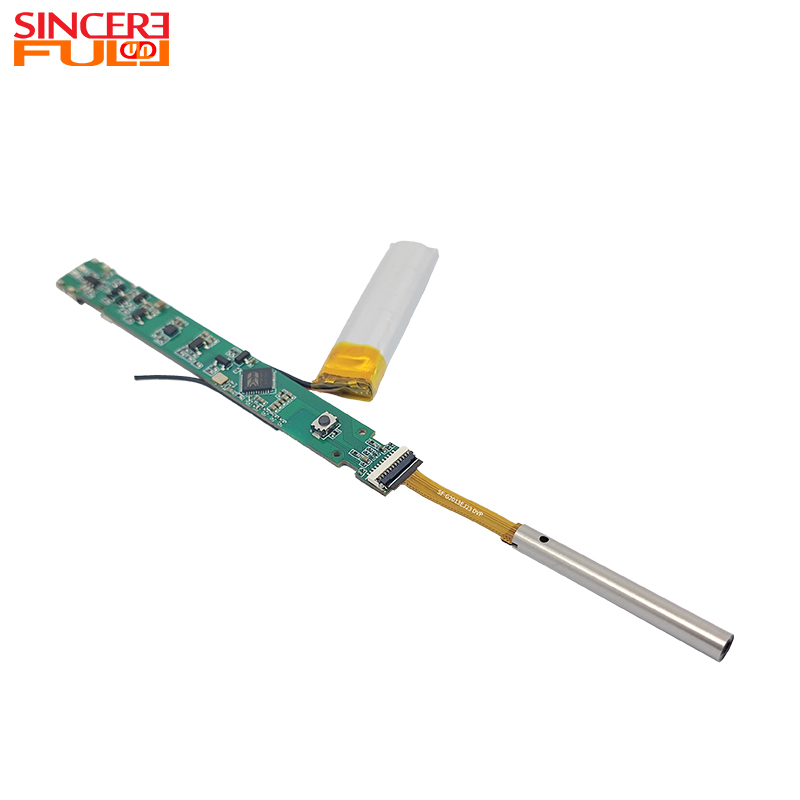

The SF-G2013EJ23 is a 3.5mm DVP endoscope camera module designed for compact inspection device integration. It uses a BF2013 0.3MP sensor, supports 640×480@30fps output, integrates 6pcs 0402 LEDs, provides an 88° field of view and supports a 20–60mm focusing range. According to the product catalog, this module is designed to connect to a WiFi board for use and can work with SF-SJWIFI9560-720.
For OEM customers developing portable inspection tools, compact endoscope devices or WiFi-enabled visual inspection systems, this model can be evaluated when the main requirements are compact diameter, local illumination, short-range viewing and DVP-to-WiFi board integration.
Not every endoscope device needs USB output. Some customers are building portable or wireless inspection tools where the camera needs to connect to an internal image processing board or WiFi transmission board.
In these projects, DVP output can be useful because the camera module is not designed as a direct plug-and-play USB camera. Instead, it becomes part of a larger embedded visual system.
The SF-G2013EJ23 is suitable for customers who already have, or plan to use, a WiFi board platform. The catalog note shows that the module is connected to a WiFi board for use, which makes the selection logic different from standard USB endoscope camera modules.
The SF-G2013EJ23 should be positioned as:
A 3.5mm DVP endoscope camera module for compact device integration
A BF2013 0.3MP imaging core for basic close-range visualization
A LED-integrated module for dark cavity observation
A camera module that can be connected to a WiFi board for use
A practical option for portable or wireless inspection device development
It should not be positioned as:
A USB plug-and-play camera module
A high-resolution medical imaging module
A waterproof IP67 probe
A dimmable LED inspection camera
A finished consumer endoscope device
This positioning is important because customers often compare endoscope modules only by diameter or resolution. For this model, the key value is its DVP connection path and suitability for WiFi board-based device design.
The D3.5 camera head helps customers design compact inspection devices and narrow-space visualization tools. It is smaller than many conventional inspection camera heads and can be evaluated for applications where device front-end space is limited.
The module uses the BF2013 sensor and supports 640×480@30fps output. This is suitable for basic visual observation where the customer needs to check structure, position, blockage, surface condition or cavity visibility.
The catalog lists this model as a DVP output module connected to a WiFi board for use. This makes it more suitable for embedded inspection devices or wireless visual tools than direct USB camera applications.
The integrated 6pcs 0402 LEDs help provide local illumination inside dark cavities. For endoscope applications, lighting is often one of the biggest factors affecting real image usability.
The 88° FOV provides a practical viewing angle for close-range inspection. It is not an ultra-wide-angle module, but it can support focused observation in compact spaces.
The 20–60mm focusing range makes this module suitable for short-range inspection tasks. Customers should test the camera at the actual working distance of their device before confirming the model.
This model is designed for DVP connection to a WiFi board, making it relevant for customers who are developing portable or wireless visual inspection devices.
The 640×480@30fps output is suitable for basic observation tasks where the goal is to see whether a structure, blockage, part or condition is visible.
The 6pcs LEDs help provide local lighting near the camera head, which is important for enclosed spaces where external lighting is not available.
The 3.5mm diameter supports compact device design and can help customers reduce the front-end size of their inspection tool.
This is a key project question. Because this model uses DVP output and is designed to connect with a WiFi board, customers should confirm board compatibility before sample testing.
The SF-G2013EJ23 can be evaluated for:
Portable WiFi inspection devices
Compact industrial visual inspection tools
Small cavity observation devices
Wireless borescope development
Consumer-style inspection device prototypes
Equipment internal visual checking
Short-range inspection systems
OEM endoscope device integration
For medical-related device concepts, this module should only be evaluated as an imaging component. Final medical compliance, safety testing and certification should be handled at the complete device level.
Choose this model when your project needs:
D3.5 compact camera head
DVP output
WiFi board connection path
Basic 640×480@30fps visualization
Built-in LED illumination
88° FOV
20–60mm short-range observation
Compact inspection device integration
It is especially suitable for customers who want to build a wireless or WiFi-enabled endoscope device instead of a direct USB camera product.
Choose another module if your project needs:
USB plug-and-play output
IP67 waterproof structure
Higher resolution such as 1MP, 2MP or 5MP
Adjustable LED dimming
Long-distance observation
HD image recording
Advanced medical imaging
AI recognition or measurement-level inspection
The right choice depends on the complete device design, not only the camera module diameter.
Before requesting samples, customers should provide:
Target application
Medical, industrial or consumer inspection direction
Required camera head diameter
Required output interface
WiFi board model or system platform
Working distance
FOV requirement
Need for LEDs
Waterproof requirement
Cable and board layout
Host display or app system
Sample quantity
Estimated production volume
Mechanical structure drawing if available
This information helps SincereFull confirm whether SF-G2013EJ23 can match the customer’s platform or whether another endoscope camera module should be recommended.
The SF-G2013EJ23 is a compact 3.5mm DVP endoscope camera module for customers developing WiFi-board-based inspection devices. Its value is not high resolution or waterproof protection, but the practical combination of D3.5 diameter, BF2013 0.3MP output, 6pcs LED illumination, 88° FOV and WiFi board integration potential.
For customers building portable or wireless inspection tools, this model can be evaluated as a compact imaging core inside the complete device system.
Developing a compact WiFi inspection device or wireless endoscope tool?
Send your application, WiFi board platform, working distance, lighting requirement and device structure to SincereFull. Our team can help evaluate whether SF-G2013EJ23 fits your project or recommend a more suitable endoscope camera module.
