When customers evaluate an endoscope camera module, they often compare resolution first. But in real medical, dental, veterinary and industrial inspection devices, smooth live viewing can be just as important as image size.
If the probe moves during operation, if the user needs real-time visual guidance, or if the inspection target is difficult to keep still, a standard low-frame-rate module may feel less comfortable. The image may look acceptable when static, but become harder to use during actual operation.

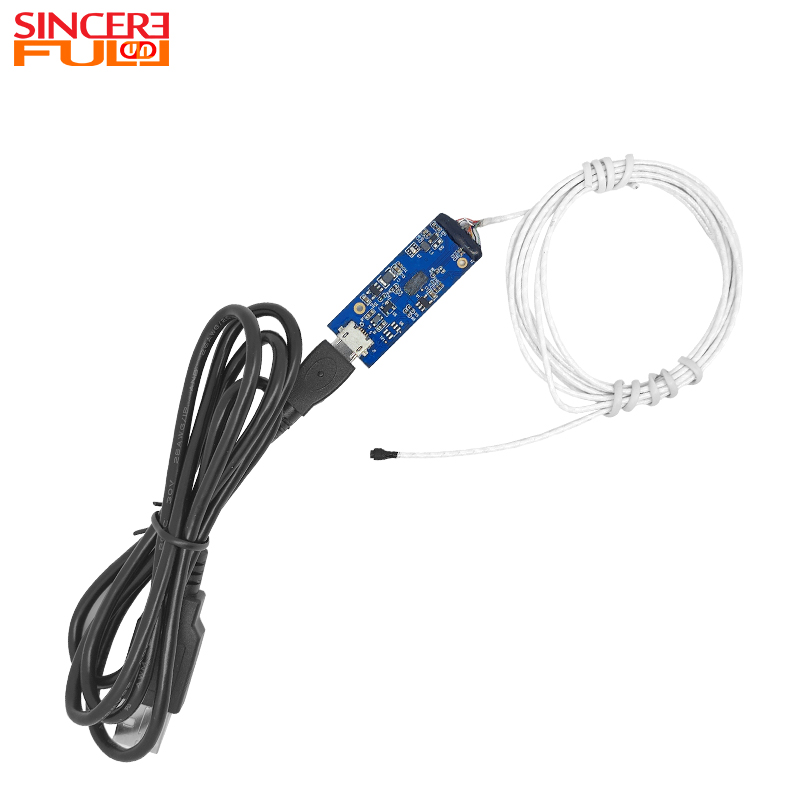

The SF-C1011USB-D3.3-720P60 is a D3.3 bare USB endoscope camera module designed for compact OEM visualization. It uses the OH01A10 sensor, supports YUV / MJPEG output at 1280×800@60fps, offers 95° / 130° FOV options and provides multiple focusing range options, including 4–10mm, 5–50mm and 10–100mm.
This article explains how this 3.3mm 720P60 USB endoscope camera module helps customers solve real project problems related to size, smoothness, viewing angle, working distance and OEM integration.
Many customers only discover the value of frame rate after sample testing.
A 30fps module may be enough when the camera is fixed. But when the probe is moving, the operator may feel that the image is not smooth enough. This can affect user experience, especially in handheld inspection tools, compact medical visualization devices, dental observation devices and industrial narrow-cavity inspection systems.
The SF-C1011USB-D3.3-720P60 supports 1280×800@60fps output. This makes it suitable for applications where the user needs smoother image feedback during movement.
For OEM customers, this is important because the final product is judged not only by still image clarity, but also by how comfortable the live video feels during real use.
The SF-C1011USB-D3.3-720P60 is best positioned as a compact 720P60 bare USB imaging core for OEM endoscope device integration.
It is not a finished waterproof endoscope probe.
It is not a built-in LED module in the standard configuration.
It is not a 5MP or 12MP high-resolution module.
Its main value is the balance between D3.3 compact size, OH01A10 1MP imaging, 60fps output, selectable FOV, multiple working distance options and USB-based integration.
This makes it suitable for customers who need smooth close-range visualization in a compact device structure.
The 3.3mm camera head helps OEM customers design slimmer probes and compact visualization devices. It is suitable for projects where a larger 5mm or 6mm module may be difficult to integrate.
The OH01A10 sensor supports 1280×800 image output. For compact endoscope applications, this provides a practical balance between image detail and small-diameter integration.
The 60fps output helps provide smoother real-time viewing. This is useful when the camera moves during inspection or when the user needs more comfortable live operation.
The USB interface supports easier prototype testing and host-side evaluation. OEM teams can test image performance, frame rate, FOV and working distance before moving into deeper mechanical design.
The 95° FOV option can be suitable for more focused observation, while the 130° FOV option can help capture a wider view in close-range spaces. Customers should choose based on working distance, target size and user operation habits.
The module supports different focusing range options: 4–10mm, 5–50mm and 10–100mm. This is valuable because endoscope applications vary widely. Some projects require very close viewing, while others need a longer observation range.
The module has a 1m standard cable and supports up to 5m maximum cable length. This can help customers who need longer routing in handheld tools, control units or inspection systems. Signal stability should still be tested in the final device structure.
This model combines D3.3 size with 60fps output, making it useful for customers who need compact integration and smoother real-time viewing.
The available focus range options help customers evaluate the module according to their actual observation distance instead of forcing one lens configuration into all applications.
The 95° / 130° FOV options help customers choose between a more focused image and a wider observation area.
Because the standard configuration has no built-in LEDs, this module is suitable for OEM customers who plan to design illumination at the device level.
The 5m maximum cable length gives more flexibility than shorter-cable modules, but final testing is still required before mass production.
The SF-C1011USB-D3.3-720P60 can be evaluated for:
Compact medical visualization devices
Dental and oral inspection tools
Veterinary observation devices
Industrial cavity inspection tools
Portable USB inspection equipment
Custom borescope systems
Handheld visualization devices
OEM endoscope camera development platforms
For medical-related projects, this module should be evaluated as an imaging component. Final compliance, cleaning, safety testing and certification should be handled at the complete device level.
Choose this model when your project needs:
A compact D3.3 camera head
1280×800@60fps output
Smoother live viewing
USB-based integration
95° / 130° FOV options
Flexible focusing range selection
Custom lighting design
Bare module structure
Cable length flexibility up to 5m
It is especially suitable for OEM customers who want to build their own lighting, housing and device structure around a compact 60fps imaging module.
This model may not be suitable if the project requires:
Built-in LEDs in the standard module
Confirmed IP67 waterproof structure
1080P, 5MP or 12MP high-detail imaging
A finished plug-and-play endoscope device
Integrated waterproof steel shell
Adjustable built-in LED brightness without custom design
If these requirements are important, another SincereFull endoscope camera module may be more suitable.
Before requesting samples, customers should prepare:
Target application
Medical, dental, veterinary or industrial direction
Required camera head diameter
Required frame rate
Preferred working distance
Preferred FOV
Lighting method
Waterproof requirement
Cable length requirement
Board space
Connector layout
Host system
Sample quantity
Estimated production volume
Mechanical structure drawing if available
This information helps avoid sample mismatch and speeds up model selection.
The SF-C1011USB-D3.3-720P60 is a compact D3.3 OH01A10 USB endoscope camera module for OEM customers who need smoother live visualization and flexible optical selection.
Its strongest value is not only 720P-class output. The real value is the combination of compact size, 60fps smoothness, wide FOV options, multiple focusing ranges and bare module integration flexibility.
Need a compact 3.3mm 720P60 USB endoscope camera module for your OEM device?
Send your application, working distance, FOV requirement, lighting plan, cable layout and device structure to SincereFull. Our team can help evaluate whether SF-C1011USB-D3.3-720P60 fits your project or recommend a more suitable endoscope camera module.
