SF-C50USB-D2.0
SINCEREFIRST

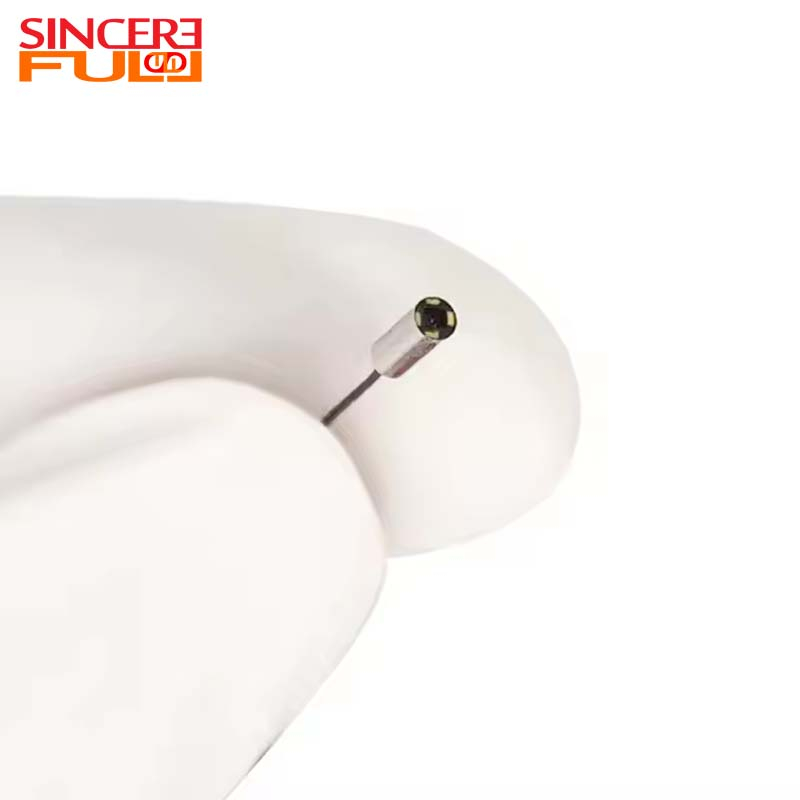

This is 2mm diameter OCHFA10 image sensor 30 fps USB 2.0 endoscope camera module with LED. housed in a 2 mm stainless-steel lens barrel, it delivers 720 P × 720 P high-definition video while keeping invasiveness to an absolute mini—successfully reconciling the trade-off between mini and image quality. At its core is the OCHFA10 1/18-inch CMOS sensor with 1.008 µm pixels; it supports multiple streaming modes: 600 × 600 @ 40 fps or 400 × 400 @ 60 fps, selectable on demand. An 86° wide-angle field of view combined with a 5–50 mm focus range adapts easily to complex cavities. The F5.0 aperture and < –11 % TV distortion guarantee crisp, accurate images, while four 0402 LEDs provide reliable illumination in dark environments. A 0.418 mm focal length enables sharp close-up capture. Connection is plug-and-play via USB 2.0 UVC; manual focus gives precise control, and the –20 °C to +70 °C operating range ensures industrial-grade reliability. With its 2 mm diameter lens and true 720 P clarity, this module is an ideal solution for precision inspection tasks. |  |
Miniaturization Without Compromise: A 2 mm ultra-slim lens drastically reduces intrusion while delivering true 720 P HD imaging—solving the industry pain point of “thick-shaft, low-resolution” traditional endoscopes.
Adaptive Multi-Mode Streaming: Choose among three resolution/frame-rate pairs—720 P @ 30 fps, 600 × 600 @ 40 fps, or 400 × 400 @ 60 fps—to match any inspection scenario.
Industrial-Grade Ruggedness: Operates reliably from –20 °C to +70 °C, with a steel-sleeved lens that boosts mechanical strength.
Smart illumination: 4 LEDs integrated around the lens eliminate shadows in dark cavities.
Plug-and-play: USB 2.0 with UVC protocol—no drivers required—works instantly with virtually any host device.
1. Endodontic Therapy: 5–50 mm focus range pinpoints fine root-canal details, while the built-in LED array eliminates imaging shadows inside the oral cavity.
2. AR Remote Collaboration: Multi-resolution output automatically matches available bandwidth for seamless tele-consultation.
3. IoT Monitoring: USB connectivity allows direct integration with industrial IoT platforms for cloud-based equipment-condition analytics.
Product Name | Medical ENDOSCOPE Camera Module |
Image Sensor | OCHFA10 |
Pixel | 1MP |
Focusing Range | 10-100mm |
Focal Length | 0.418mm |
F NO | 5.0 |
Product Type | Endoscope Camera Module |
Led | 0402 Led |
TV Distortion | <-11% |
Feature | CMOS sensor Endoscope Camera Module |
FAQ
1. What is the difference between medical and industrial endoscope modules?
The medical module emphasizes biocompatibility, sterilization and high image quality, and needs to comply with FDA/CE certification; Industrial modules focus on durability (such as corrosion protection), wide temperature operation (-20°C to 70°C), and special light sources (such as UV).
2. What can I do if the module fails to start?
Check the power adapter (for example, 12V output), the port is loose, and the fuse is blown. If the wireless module is used, check the battery level and pairing status.
3. What are the typical requirements for custom modules?
Common requirements include special dimensions (e.g., 1mm diameter), multispectral imaging (e.g., fluorescence navigation), and interface protocol adaptation (e.g., interfacing with DICOM systems).
