I. Introduction: When Inspection Space and Imaging Precision Evolve Together
In the fields of industrial pipeline inspection, heavy equipment maintenance, and municipal engineering exploration, an increasingly prominent technical challenge is emerging: the physical scale of inspection targets is growing—pipeline diameters expanding from a few centimeters to tens of centimeters, equipment cavities evolving from compact structures to large-scale complex systems—while simultaneously, demands for imaging precision continue to escalate, shifting from "whether a blockage can be seen" to "whether micro-cracks, corrosion depth, and weld morphology can be identified." The limitations of traditional endoscope modules in terms of resolution, depth of field, and illumination adaptability are becoming critical bottlenecks constraining inspection quality.
Addressing this engineering need, the dimmable endoscope module based on a 12MP ultra-high-definition sensor offers a professional-grade solution for large-cavity inspection. This article will help industrial inspection equipment integrators, heavy equipment maintenance service providers, and municipal engineering units evaluate the alignment between this product and their systems from three dimensions: in-depth technical parameter analysis, application scenario to Fit logic, and a selection decision framework. It also incorporates core keywords such as camera endoscope hd, endoscope usb camera, camera usb module, sensor camera module, borescope inspection cameras, and module camera usb to help you precisely pinpoint the product's value.
II. In-Depth Analysis of Core Technical Parameters
2.1 12MP Ultra-High Definition Resolution: The Limit for Capturing Microscopic Defects
This module incorporates a 1/3.06-inch CMOS sensor, offering 3840×3104 effective pixels, totaling 12MP with a single pixel size of 1.12μm × 1.12μm. The engineering significance of this parameter combination is as follows:
In industrial thick-wall pipeline inspection, traditional 2MP endoscopes can only resolve millimeter-level cracks, whereas 12MP ultra-high-definition imaging elevates detection precision to the sub-millimeter level—depth variations in corrosion pits, fine pores in welds, and early-stage cracks in pipe walls can all be clearly captured. As a professional camera endoscope hd, this module enables inspectors to maintain sufficient detail even when zooming in on the screen, avoiding missed detections caused by insufficient resolution.
In heavy equipment maintenance scenarios, surface defects on critical components such as engine cylinder interiors, gearbox tooth surfaces, and hydraulic system spools often exist in micron-level forms. The 12MP resolution combined with the 1.12μm pixel size allows the object-space dimension corresponding to each pixel to be compressed to the order of 0.05–0.1mm at typical working distances, providing a reliable visual basis for fault diagnosis. As a standard sensor camera module, its high pixel density offers ample input data for subsequent image analysis algorithms.
2.2 Auto Focus System: Full-Scene Coverage from 3.5cm to Infinity
This module utilizes AF (Auto Focus) functionality, with a focusing range covering 3.5cm to infinity, achieving seamless switching from ultra-close-up macro capture to long-distance global scene observation. The core value of this design lies in:
During municipal pipeline inspection, operators need to first observe in part corrosion points on the pipe's inner wall at a 3.5–5cm distance, then switch to distances beyond 50cm to assess the overall condition of a pipe segment. The auto focus system completes the focus cut in milliseconds without manual intervention, significantly improving inspection efficiency. As a typical application of an endoscope usb camera, the auto focus function enables operators to obtain consistently clear images without frequently adjusting the probe position.
Compared to fixed-focus solutions, auto focus expands the system's applicable working distance range from a single narrow band to full coverage, allowing the same module to adapt to various inspection scenarios. The 3.5cm minimum focusing distance holds particular value in industrial endoscopy applications—when the probe needs to be brought extremely close to the target surface for microscopic observation, clear imaging can be achieved by focusing directly without changing lenses or adding close-up attachments.
2.3 Dual Diameter Specifications and Optical System: Balancing Spatial Adaptability and Imaging Quality

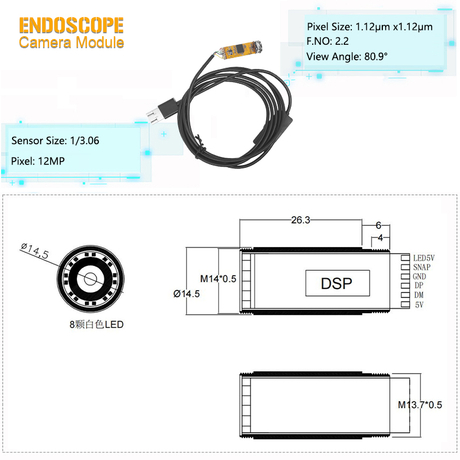

The module offers two probe diameter specifications, Φ12.5mm and Φ14.5mm, providing flexibility to adapt to different pipe diameters and cavity spaces. The optical combination of an F/2.2 large aperture and an 80.9° field of view strikes a balance between light intake and field coverage. The relatively large F/2.2 aperture significantly increases the luminous flux received by the sensor, effectively reducing gain settings and minimizing noise interference when operating in enclosed cavities illuminated solely by LEDs.
The ring layout of eight SMD LEDs with a color temperature of 4500–5000K provides uniform and ample illumination for the inspection area. The inclusion of dimmable functionality allows operators to flexibly adjust illumination intensity based on target material and reflective characteristics—reducing brightness for highly reflective metal surfaces to avoid overexposure, and increasing brightness for dark or light-absorbing materials to maintain detail visibility. As professional borescope inspection cameras, this lighting design enables them to handle complex and varied industrial field environments.
2.4 Interface and Power Supply: Plug-and-Play System Integration Assurance
The module utilizes a USB 2.0 interface and 5V power supply, compatible with Windows XP and Windows 7 systems, achieving plug-and-play deployment. For industrial inspection equipment integrators, this means no need to develop proprietary drivers; the module can be directly connected to existing industrial PCs or laptops, significantly shortening product development cycles. As a standard camera usb module, its universal compatibility allows inspection systems to be quickly deployed on-site without requiring support from specialized technical personnel.
The integration of Automatic Exposure Control (AEC), Automatic Gain Control (AGC), and Automatic White Balance (AWB) ensures imaging stability and color accuracy under varying lighting conditions. The 10-bit ADC precision and an operating temperature range of 0°C to 50°C ensure the module's long-term reliable operation in industrial environments. As a typical module camera usb product, this module encapsulates professional imaging capabilities within a compact housing, facilitating integration into various inspection devices.
III. Core Application Scenario Selection and Adaptation
3.1 Industrial Thick-Wall Pipeline Inspection
Scenario Characteristics: Internal inspection of large industrial pipelines, storage tanks, air ducts, etc., requiring identification of corrosion, cracks, blockages, and other issues on inner walls with diameters of tens of centimeters.
Adaptation Logic: 12MP ultra-high-definition imaging renders mini defects unmistakable; dual diameter specifications (12.5mm/14.5mm) flexibly adapt to different pipe diameters; dimmable LEDs address the total darkness within deep pipelines; auto focus covers the full distance range from localized pipe wall observation to whole situation pipe segment scanning. As a professional camera endoscope hd, this module elevates inspection precision to a new level.
Selection Focus Points: Impact of inner pipe wall material on reflection, compatibility of probe length with pipe bending radius, and capability for data integration with existing inspection recording systems.
3.2 Heavy Equipment Maintenance
Scenario Characteristics: Internal inspection of large equipment such as engines, transmissions, hydraulic systems, and marine machinery, requiring high-precision fault localization without disassembly.
Adaptation Logic: 3.5cm ultra-close focusing allows access into internal equipment gaps to observe critical components; 12MP resolution clearly reveals microscopic defects like gear wear, seal aging, and spool scratches; compact structure (36.6mm length) facilitates entry through existing equipment inspection ports. As an industrial-grade application of borescope inspection cameras, this module provides a reliable data acquisition method for predictive maintenance of heavy equipment.
Selection Focus Points: Compatibility of probe rigid section length with equipment internal space, resistance to oil and high temperatures, and ease of integration with maintenance workflows.
3.3 Building and Municipal Inspection
Scenario Characteristics: Inspection of building pipelines, drainage systems, HVAC ducts, and other municipal facilities, requiring adaptability to detection needs at varying depths and distances.
Adaptation Logic: Auto focus function covers short-distance local observation and long-distance overall scanning; dual diameter specifications adapt to different pipe sizes; 0°C–50°C operating temperature range meets indoor and outdoor environmental requirements. As a municipal application of an endoscope usb camera, this module enables inspectors to quickly assess pipeline conditions.
Selection Focus Points: Cable length (must cover pipeline depth), waterproof and dustproof ratings, and ease of connection with mobile terminals.
3.4 Special Scenario Exploration
Scenario Characteristics: Applications with special requirements for imaging quality and lighting adaptability, such as security concealed space exploration, archaeological artifact internal structure observation, and blind spot detection in equipment maintenance.
Adaptation Logic: Dimmable LEDs adapt to complex dark environments; 12MP ultra-high-definition imaging ensures reliable recording of hidden details; auto focus adapts to varying detection distances. As a flexible application of a sensor camera module, this module can be embedded into various specialized exploration devices.
Selection Focus Points: Integration method with exploration equipment, data storage and playback functionality, and operational convenience on site.
IV. Technical Framework for Selection Decisions
4.1 Access Feasibility Assessment
Step 1: Spatial Dimension Verification
Precisely measure the minimum inner diameter of the target channel to confirm whether the 12.5mm or 14.5mm probe diameter meets passage requirements. For paths with bends, evaluate the compatibility of the probe's rigid section length with the bending radius.
Step 2: Imaging Precision Evaluation
Clarify the resolution level required for the core inspection task. For high-precision applications needing to identify micro-cracks (width < 0.1mm) or corrosion depth variations, the 12MP ultra-high-definition solution is a necessary choice; for qualitative tasks like general blockage localization, lower-resolution solutions may be considered to optimize cost.
Step 3: Working Distance Testing
Verify the response speed and accuracy of the auto focus system across the range from 3.5cm to infinity, paying particular attention to imaging quality at the minimum and maximum distances.
4.2 Illumination and Optical Adaptation
Step 4: Illumination Requirement Assessment
Determine the lighting conditions of the target environment. For completely dark pipe interiors, enable the 8 LEDs and test the dimmable function's imaging effect on different material surfaces. Reduce brightness for highly reflective metal surfaces, and increase brightness for dark materials to maintain detail visibility.
Step 5: Field of View Coverage Verification
Calculate the actual coverage area corresponding to the 80.9° field of view at typical working distances to confirm whether single-shot imaging meets inspection efficiency requirements.
4.3 System Integration and Reliability Verification
Step 6: Platform Compatibility Testing
Verify plug-and-play compatibility of the USB 2.0 interface on target host devices, testing image stability and frame rate retention under Windows XP and Windows 7 systems.
Step 7: Environmental Adaptability Evaluation
For outdoor or industrial field applications, assess whether the 0°C–50°C operating temperature range meets actual conditions. For applications potentially involving contact with oil or coolant, confirm the module's protection rating and cleaning adaptability.
V. Why Choose SincereFirst as Your Partner
As a high-tech enterprise with over 30 years of experience in optical imaging, SincereFirst has established in-depth collaborations with numerous Fortune Global 500 companies, with products exported to over 200 countries and regions worldwide. The company operates Class 10/100 COB cleanrooms, employing advanced Active Alignment (AA) manufacturing processes to ensure optical performance consistency for every sensor camera module.
For industrial inspection equipment integrators and municipal engineering service providers, SincereFirst offers comprehensive technical support documentation and customization services. Whether adjusting probe diameter, cable length, or illumination parameters, modifications can be made according to your specific requirements. All products comply with international certifications such as FCC, CE, and RoHS, meeting global market access standards.
As a professional supplier of borescope inspection cameras, SincereFirst not only provides standard camera endoscope hd products but is also committed to being your trusted vision system partner—using reliable imaging technology to help your inspection work see clearer, inspect more accurately, and operate with greater reach.
Conclusion
The selection value of the dimmable endoscope module based on a 12MP ultra-high-definition sensor lies not in the extreme of any single parameter, but in the profound understanding behind its design decisions for large-cavity, thick-wall, long-distance inspection scenarios. It captures microscopic defects with 12MP ultra-high-definition resolution, adapts to multi-distance scenarios with 3.5cm ultra-close auto focus, flexibly accommodates different pipe diameters with dual diameter specifications, and tackles complex dark environments with dimmable LEDs—the core significance of this technical combination is to provide a professional, reliable, and flexible camera usb module solution for industrial pipeline inspection, heavy equipment maintenance, and municipal engineering exploration.
Successful selection stems from clear answers to fundamental questions about the target application: "How high the precision?", "How narrow the space?", "How far the distance?", "How dark the environment?" When these answers align coherently with the technical specifications, the selection decision elevates from passive parameter sheet comparison to the active definition of a system solution—a professional practice that ultimately determines project success.
