SF-C16USB-D1.5
SINCEREFIRST

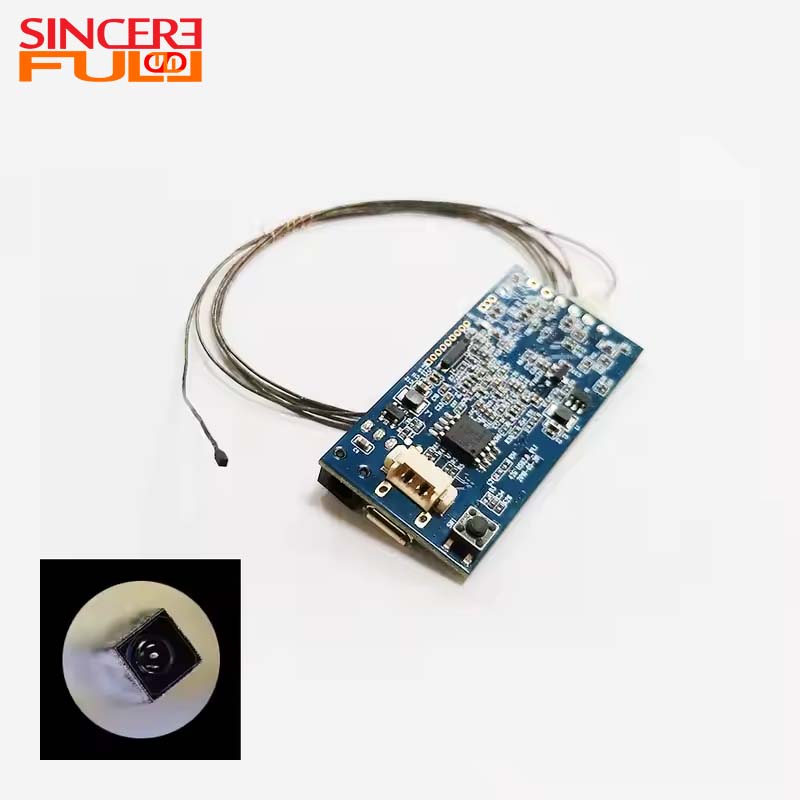

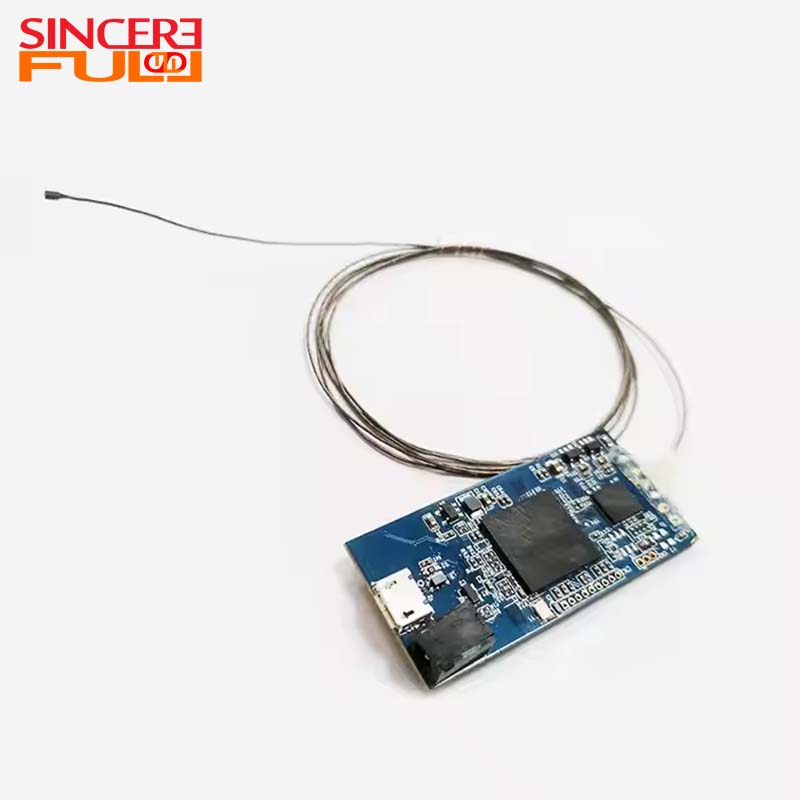

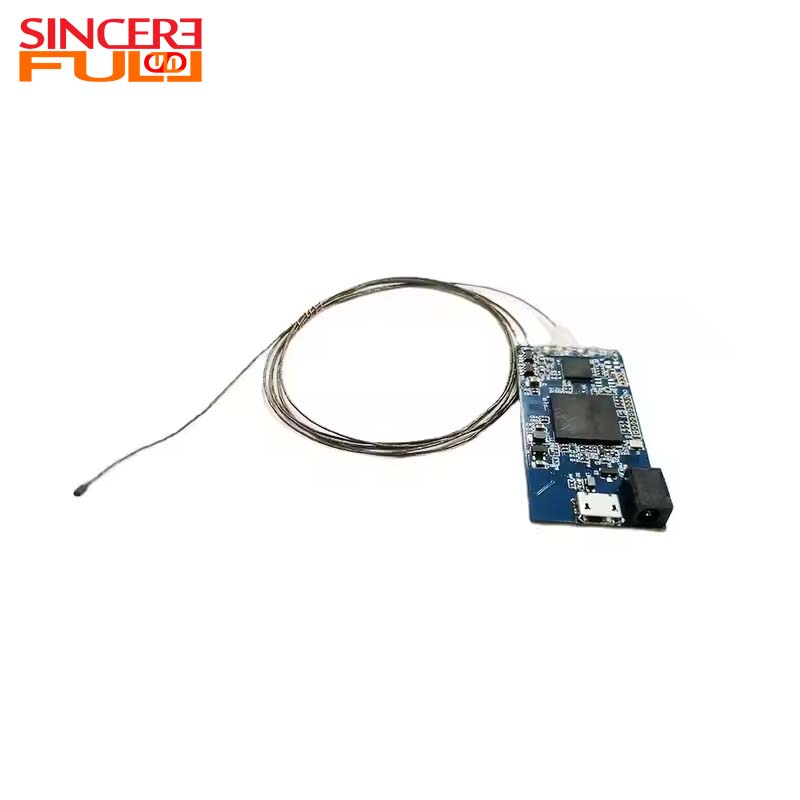

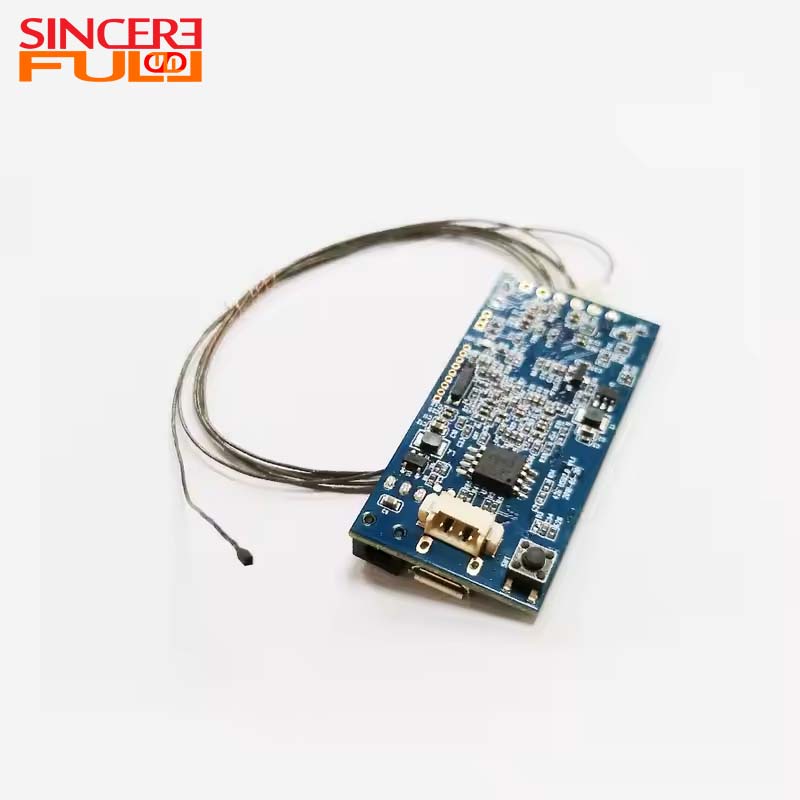

This 1.5mm Endoscope Camera Module carry the OVM6946 Sensor. which is a ultra-small diameter endoscope camera module offers exceptional performance in confined spaces and is designed for a variety of medical applications. With a compact size of 1.05*1.05*L5.0mm, it is easy to maneuver, while its 5-50mm focus range ensures clear imaging at various distances.The endoscope camera module guarantees a wide dynamic field of view (DFOV) of 120 degrees, allowing for detailed visualization during examinations. Minimal distortion of less than -11% enhances the accuracy of the captured images, making it ideal for intricate procedures. The main board dimensions of 45*14mm contribute to its ruggedness, and the 2m camera cable length provides flexibility during use. |  |
Product Advantage ◢
Compact Design: Ultra-small diameter of 1.5mm and dimensions of 1.051.05L5.0mm for easy maneuverability.
Imaging: Equipped with OVM6946 Sensor, delivering clear images from 5-50mm focus range.
Wide Field of View: DFOV of 120 degrees for an extensive perspective during examinations.
Low Distortion: Distortion rate of less than -11%, ensuring accurate image representation.
Technical Parameters ◢
Product Name | Endoscope Camera Module |
Features | Medical Endoscope Camera Module |
Image Device | 1/18" |
Sensor | OVM6946 |
F No. | F5.0 |
TV Distortion/TV | <-11% @ 0.95Field |
Steel House | 1.05*1.05*L5.0mm |
Trademark | SINCERE FIRST |
Lens Size | 5mm~50mm |
Focus | Fixed |
Product Uses ◢
gastroscope
enteroscope
Respiratory endoscope
Industrial inspection endoscope
FAQ ◢
Q1: What is a endoscope camera module?
A1: Endoscopic camera modules are widely used in medical and many other fields, such as human and animal health inspection, industrial equipment monitoring, and home pipe inspection. This type of equipment enables real-time observation and intervention and is particularly suitable for examining internal or hard-to-reach areas. Depending on the configuration, endoscopic cameras for different applications are often equipped with a variety of different image sensors and imaging technologies to adapt to the needs of various screening environments, but must ensure that they can provide clear, detailed images. In addition, most endoscope modules are equipped with an LED lighting system, which is especially important in low light or dark environments. At the same time, some endoscopic camera modules have flexible bending characteristics, which can adapt to more complex inspection environments, while rigid endoscopes are more suitable for inspection of straight channels. When connecting display devices, these modules typically support multiple output options such as USB, HDMI, WiFi, TYPE-C, and MICRO-USB for easy connection to monitors or recording devices for real-time observation, analysis, and image recording. In the medical field, endoscopic cameras are widely used in the diagnosis of gastrointestinal, pulmonary, urinary and reproductive diseases. At the same time, they also play an important role in industrial inspection, involving aerospace, manufacturing and automotive inspection industries, and can even be used in the home of pipes (such as water pipes, heating pipes, sewers, etc.) and electrical appliances (such as refrigerators, televisions, drinking fountains, air conditioners) inspection.
Q2: Are you factory or trade company?
A2: We are an original equipment manufacturer (OEM) of smart camera modules, with our own production base, ten floors of sterile and dust-free production workshop, under the strict requirements of international advanced quality standards, we carry out efficient production operations. Our team always follows the specifications to ensure the stability and reliability of the manufacturing process. Each employee goes through systematic professional training and operates according to specific workflow, wearing specially designed dust-free clothing to keep the production environment clean and sterile. We attach great importance to product quality, ensuring that each camera module is rigorously inspected and tested in multiple stages to maintain high quality control standards. In addition, our company also has an independent research and development team, invest heavily in the research and development of independent products, encourage innovation, with the ability of independent innovation, successfully launched a number of camera module products with leading advantages in the industry.
Q3: How to control an endoscope camera module?
A3: The control operation of the endoscope camera module is a complex process involving power management, data connection, software application and image processing. The process of controlling the endoscope camera module requires close cooperation between hardware and software to ensure its efficient application in medical and industrial fields. First, it is crucial to connect the power supply to the camera module, as these cameras usually need to operate within a specific voltage range, ensuring the stability of the power supply and avoiding the failure of the device due to power surges. Establishing a valid data connection is also a basic requirement. Common connectivity interfaces such as USB, TYPE-C, MICRO-USB, HDMI, or Wi-Fi wireless connections allow the camera to exchange data with a control device such as a computer or mobile device. In this process, if a wireless connection is required, the corresponding control instructions must be sent to the camera through a pre-set data interface to achieve remote operation. In addition, specialized software or existing applications are required. Such software may be tailored or use a third-party solution that supports video capture and camera control. The software provides a user-friendly interface for operators to manage the camera, including setting parameters and receiving video streams. The implementation of image processing algorithm is an important link in the control process. Through these algorithms, the captured video stream can be analyzed in real time to help operators effectively adjust the functions of the camera. For example, the operator can zoom, focus, photograph and record, and adjust the Settings in time according to the actual operation needs to achieve the best image and performance optimization.
Q4: What does an endoscope camera module see?
A4: The endoscope camera module is designed to capture clear picture and video feedback of various biological structures and narrow channels. This device is particularly suitable for detailed visual inspection of areas that are difficult to view directly. In the medical field, the endoscope module plays a key role in gastroscopy and colonoscopy, enabling doctors to fully assess the lining of the esophagus, stomach and intestines to detect abnormalities such as cancerous lesions, ulcers or polyps in time. During bronchoscopy, the device is able to clearly present and record lesions in the airways and lungs, helping doctors diagnose related infections or tumors. In urinary tests, cystoscopy is used to assess the health of the bladder and urethra. The otoscope is used to observe the condition of the ear canal and eardrum, while the nasopharyngoscope can examine the condition of the nasal cavity and throat. In addition, colposcopy is used to monitor infection, inflammation and lesions of the vaginal lining. The application of endoscopy in surgery is also very wide, such as laparoscopy can provide high-definition images of internal organs through small incisions, and the fast transmission interface allows surgeons to observe and perform operations such as lesion removal in real time. Many endoscopic devices are also equipped with integrated lighting to ensure optimal visibility in dimly lit environments, helping patients recover sooner.
Q5: What can be customized for endoscope camera modules?
A5: The endoscope camera module can be selected as integrated or separated, and the diameter size, and whether it comes with a steel sleeve and LED light can also be customized.
