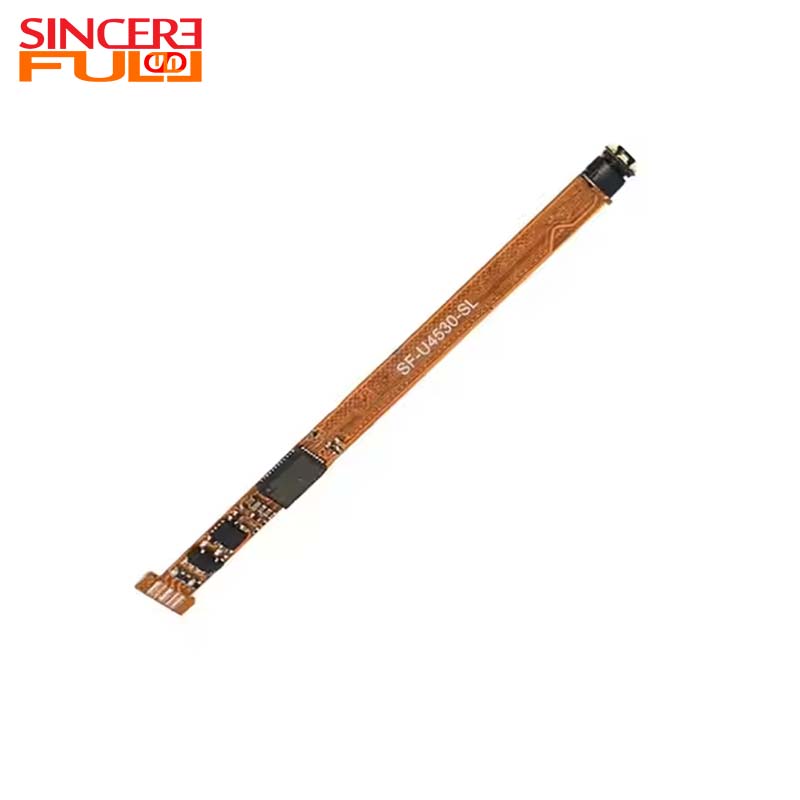

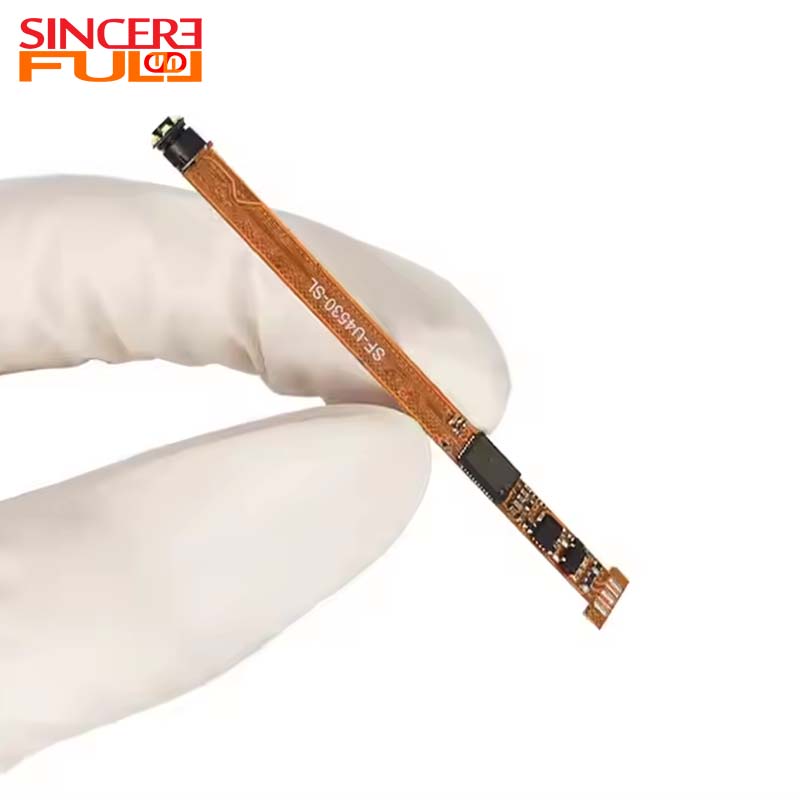

SF-U4530-SL-V3
SINCEREFIRST

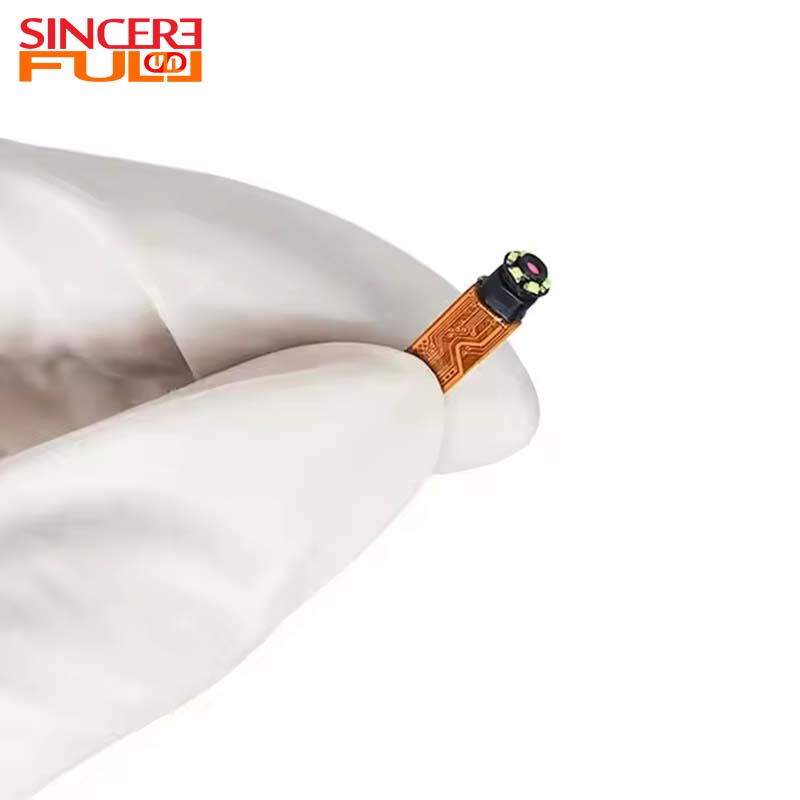

The BF2013 Sensor is a VGA camera chip that integrates both a CMOS image sensor (CIS) and image signal processing (ISP) capabilities. Utilizing CMOS image sensor technology, This 0.3MP endoscope camera module features built-in noise reduction through Correlated Double Sampling (CDS), alongside analog global gain control and independent red, green, and blue gain adjustments. The 0.3MP camera module supports various data formats, such as Bayer RGB, RGB444, RGB555, RGB565, and YCBCR 4:2:2. This endoscope camera module is designed to facilitate a range of imaging applications, Whether utilized as a Medical Endoscope Camera Module or a general-purpose mini camera module, the BF2013 Sensor enhances the performance of WiFi camera modules and other imaging devices, ensuring high-quality results in diverse settings. |  |
Product Advantage ◢
High integration: The BF2013 sensor combines CMOS image sensor and image signal processing capabilities.
Low noise and high sensitivity: Achieve ultra-low dark noise and high sensitivity imaging.
Rich data formats: Multiple data formats are supported, such as Bayer RGB and YCBCR.
Flexible control: Complete user control and programming through a two-wire serial interface.
1. Otorhinolaryngology examination: Support Bayer RGB raw data output, adapt to professional medical image processing software, improve the analysis accuracy of ear canal/nasal lesions.
2. Precision machinery internal inspection: YCBCR 4:2:2 format compatible with machine vision system, independent RGB gain compensation metal reflection, support gear/bearing defect detection.
3. Micro detection equipment: 0.3MP resolution balance power consumption and clarity, global gain control to adapt to day and night light changes, support covert monitoring requirements.
Technical Parameters ◢
Product Name | Endoscope Camera Module |
Features | BF2013 Endoscope Camera |
Pixel | 8MP |
Sensor | BF2013 |
F.NO | 2.8 |
Focus Range | 10-100mm |
Focal Length | 3.75mm |
Trademark | SINCERE FIRST |
Fov(D) | 67° |
TV Distortion | <1.0% |
FAQ
1. What is the difference between medical and industrial endoscope modules?
The medical module emphasizes biocompatibility, sterilization and high image quality, and needs to comply with FDA/CE certification; Industrial modules focus on durability, wide temperature operation and special light sources.
2. Why do Otolaryngology departments need ultra-small diameter modules?
With a narrow ear/nasal canal space, a module with a diameter of less than 3mm can reduce patient discomfort while maintaining a high resolution to identify small lesions.
3. What can be customized for endoscope camera modules?
A5: The endoscope camera module provides a range of options for users, including the choice between an integrated or separate design tailored to meet individual requirements. adaptability for various medical or industrial applications. Users can also select the diameter of the module, allowing it to fit different anatomical or operational contexts while ensuring effective access and clear visualization , Furthermore, the module's customization extends to the inclusion of a protective steel sleeve, which adds to its robustness and maintains sterility during medical tasks. Another significant aspect is the integrating LED lighting into the module. This feature enhances visibility in low-light environments, facilitating thorough examinations and accurate diagnoses.
