As smart hardware designs keep pursuing ultra-slim, compact form factors, every cubic millimeter of internal space becomes invaluable. Conventional camera modules are often a bottleneck for engineers aiming for highly miniaturized product designs due to their bulky dimensions.

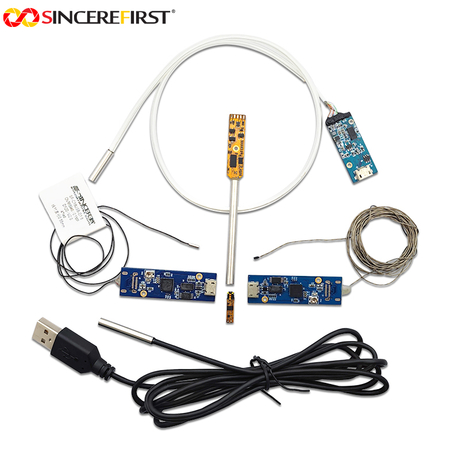

The SF-SAC1019USB-720P-D3.9-Max-TyPec-105D V1.0 addresses this core pain point. Built around the OV9734 image sensor, this camera module delivers groundbreaking miniaturization and unlocks brand-new possibilities for embedded vision applications.
The module’s standout advantage lies in its cylindrical body with merely a 3.9mm diameter – far more than a numerical spec, it delivers unprecedented design flexibility.
Ultra-compact footprint: It fits seamlessly into endoscopes, smart pens and other micro-devices with strict spatial constraints, barely occupying valuable internal room.
Streamlined mechanical design: Standard cylindrical shape with precise dimensional tolerance (±0.1mm) simplifies structural development and assembly workflows, accelerating progress from prototype to mass production.
Flexible wiring layout: Equipped with flexible ribbon cables, it supports routing inside cramped enclosures and adapts perfectly to irregular internal chassis structures.
Its ultra-small size never comes at the cost of imaging quality.
105° Diagonal Field of View (DFOV): Boasts an ultra-wide viewing angle within its miniature body to capture expansive scenes, ideal for panoramic observation and environmental perception.
10–100mm Focus Range: Factory-calibrated focusing distance covers close-up shots to mid-range monitoring, delivering crisp imagery across all common working distances.
Low Distortion (<6%): Optimized lens assembly limits TV distortion below 6%, preserving image geometric authenticity and supplying high-quality raw footage for subsequent image analysis and algorithm processing.
To lower development barriers drastically, the module integrates a standard USB Type-C port with native UVC protocol support.
Universal connectivity: No extra adapter boards or custom driver development required; it connects directly to all USB-compatible main controllers for instant plug-and-play functionality.
Standard video output: Supports YUV and MJPEG compression formats, with maximum 720P@30fps streaming to meet real-time video capture and processing demands.
Expansible control pins: I2C (SCL/SDA) control lines are routed out alongside video signals, enabling full customization and debugging for developers.
More than just a camera component, the SF-SAC1019USB-720P-D3.9-Max-TyPec-105D V1.0 serves as a powerful enabler for hardware designers chasing ultimate miniaturization. It eliminates spatial limitations and empowers countless innovative new products with high-definition embedded vision capability.
