Introduction
When you’re choosing an endoscope camera – for medical diagnosis, industrial inspection, or a DIY project – you’ll come across two sensor technologies: CCD and CMOS. For years, CCD was seen as the gold standard for image quality. But today, CMOS dominates almost every application, including endoscopy. So what’s the real difference, and which one should you pick? At Sincere, we have been designing camera module sensor solutions for over 30 years, including custom endoscope camera module designs for medical and industrial clients. This article explains the differences and why CMOS is the preferred choice for most modern endoscopes.
What Are CCD and CMOS?
CCD (Charge‑Coupled Device): An older technology. Light creates charge that is shifted across the chip to a single amplifier. CCDs are known for low noise and good image quality, but they use more power and are more expensive.
CMOS (Complementary Metal‑Oxide‑Semiconductor): A newer technology where each pixel has its own amplifier. CMOS sensors are cheaper, consume less power, and can be read out much faster.
Both convert light into electrical signals, but they do it in very different ways.
Key Differences in Endoscope Cameras
Feature | CCD | CMOS |
|---|---|---|
Power consumption | High | Low – important for battery‑powered endoscopes |
Readout speed | Slow | Fast – enables high frame rates |
Noise | Low (at low ISO) | Good, modern sensors are very clean |
Cost | Higher | Lower |
Integration | Needs external circuits | On‑chip processing (ADC, timing) |
Size | Larger modules | Can be very small – ideal for camera usb module |
Global shutter | Available but complex | Rolling shutter common; global also available |
Why CMOS Is the Standard for Endoscope Cameras
1. Lower Power Consumption
Endoscopes often run on battery power (handheld borescopes, USB endoscopes). A cmos module camera uses much less power than a CCD, giving longer runtime and less heat – critical for medical use where heat can harm tissue.
2. Faster Readout and Higher Frame Rates
CMOS sensors read out faster. This allows 60fps endoscope camera module designs, which give smoother video when the scope moves or when inspecting fast‑moving objects. CCD‑based endoscopes are typically limited to 30fps or lower.
3. Smaller Size
CMOS integrates many functions on one chip, so the whole module can be tiny. This is essential for camera usb module endoscopes that need to fit into a 5.5mm or even 3.9mm tube. CCD modules often need extra driver circuits, increasing size.
4. Lower Cost
For a given resolution, CMOS is cheaper to manufacture. This makes custom endoscope camera module projects more affordable, especially for consumer and industrial use.
5. USB and UVC Compatibility
Most modern uvc endoscope camera designs use CMOS sensors. The UVC protocol works seamlessly with CMOS‑based usb2.0 endoscope camera modules, giving plug‑and‑play operation. CCD sensors are rarely used with USB because of higher power and slower readout.
When CCD Might Still Be Considered
Very low‑light applications: Some high‑end CCDs have slightly lower noise than CMOS at very low light. But modern back‑illuminated CMOS sensors have largely closed this gap.
Specialized scientific imaging: Where extreme dynamic range or specific spectral response is needed.
For 99% of endoscope applications – medical, industrial, automotive, plumbing – CMOS is the better choice.

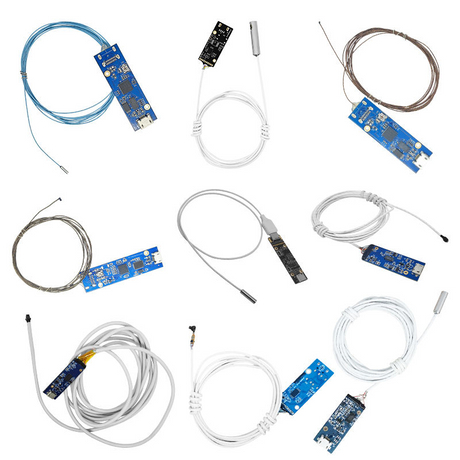

Examples of CMOS Endoscope Camera Modules
Usb2.0 endoscope camera: A typical 1080p CMOS borescope that works with any PC or Android device (UVC, no driver needed).
60fps endoscope camera module: High‑speed CMOS for smooth video when inspecting moving machinery.
Custom endoscope camera module: We design CMOS‑based modules with your choice of lens, cable length, and LED illumination.
How to Choose the Right Sensor
Frame rate needed: For smooth motion, choose CMOS that supports 60fps.
Power constraints: For battery devices, CMOS is the only practical choice.
Size: For small‑diameter endoscopes (under 5mm), CMOS is available in compact packages; CCD is not.
Interface: If you need a camera usb module with UVC, CMOS is the standard.

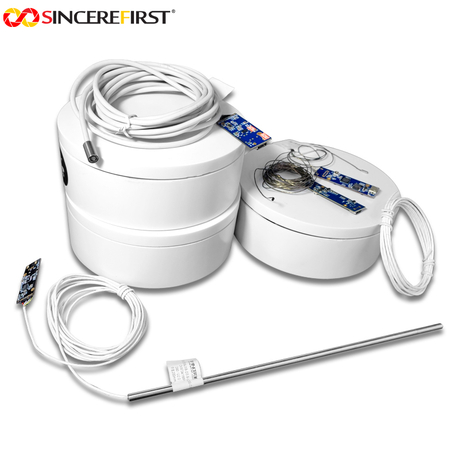

Sincere’s CMOS Endoscope Camera Modules
At Sincere, we specialize in cmos module camera solutions for endoscopy. We offer:
Camera usb module: UVC‑compliant endoscope cameras with 720p, 1080p, or 4K.
Uvc endoscope camera: Plug‑and‑play modules for medical and industrial inspection.
Usb2.0 endoscope camera: Affordable, high‑performance models – 30fps at 1080p, or 60fps at lower resolutions.
60fps endoscope camera module: For smooth video of moving objects.
Custom endoscope camera module: Tailored lens, cable, and housing to fit your exact needs.
All our modules are built around high‑quality camera module sensor from Sony, OmniVision, or other leading brands.
Summary
The main differences between CCD and CMOS endoscope cameras are power, speed, size, and cost. CMOS sensors are lower power, faster, smaller, and cheaper – making them the clear choice for nearly all endoscope applications today. Whether you need a standard usb2.0 endoscope camera, a high‑speed 60fps endoscope camera module, or a custom endoscope camera module, CMOS delivers the performance and convenience you expect.
For medical, industrial, or consumer endoscopes, a cmos module camera with UVC support offers the best balance of image quality, power efficiency, and ease of integration. Contact Sincere to discuss your camera module sensor requirements.
