In applications such as industrial endoscopic inspection, medical assisted examination, and precision equipment maintenance, selecting an imaging system often involves balancing a set of interdependent engineering constraints: the physical diameter of the observation channel limits the probe front to millimeter-scale dimensions, real-time image transmission demands minimal latency, and target recognition accuracy depends on geometric fidelity and low-light performance.
When these multiple constraints must be satisfied within a single system, a miniature endoscope module featuring a 4.6mm diameter, NTSC analog output, and distortion below 1% becomes a technically viable option. Such modules form the core of many camera usb endoscope systems when paired with video capture devices, though here we focus on their native analog implementation. This article constructs a selection evaluation framework for such analog video-based miniature imaging modules and explains the intrinsic relationships between technical parameters and specific application scenarios, helping engineers determine whether a particular module meets the requirements for everything from a basic cheap endoscope camera to a high-performance 4k endoscope camera system.
The 4.6mm module diameter should be considered a minimum access threshold, not a performance advantage. Its engineering significance lies in being slightly smaller than the minimum inner diameter of most industrial and medical inspection channels—for example, 5mm industrial pneumatic tubing or 5.5mm medical catheters. The 4.6mm diameter leaves a 0.4–0.9mm radial clearance, ensuring smooth passage while accommodating minor irregularities such as wall protrusions or debris. This dimensional characteristic is fundamental to any camera endoscope usb probe designed for navigating tight spaces, even when the analog signal is later digitized.
Equally important is the module's flexible structure. The specified "bending region" and flexible FPC design allow the module to navigate curved pathways, while steel reinforcement provides local rigidity to maintain coaxial alignment under axial load. When selecting a module, the minimum bend radius of the target channel must be evaluated—for example, for a 90° bend with a radius below 10mm, the module must accommodate repeated bending without damaging internal circuitry.
Dimensional tolerances of ±0.1mm reflect consideration for batch assembly consistency. For a 4.6mm module, this represents a ±4.3% variation, or a range of 4.5–4.7mm. In applications requiring precise mating with catheters or seals, designers should verify that this tolerance range does not result in overly tight or loose fits, potentially specifying graded selections to improve assembly precision.
Although NTSC analog output is often perceived as outdated in a digital imaging-dominated market, it offers technical advantages in real-time, latency-sensitive endoscopy. For applications where a camera usb endoscope might introduce buffering delays, the direct analog path provides a more immediate visual feedback loop.
The core value of analog video lies in its extremely low signal latency. Continuous voltage waveform transmission avoids digitization, compression, buffering, or decoding steps, yielding end-to-end delays under 33ms (1 frame period). During rapid probe advancement, the difference between 33ms and 200ms visual feedback is significant, directly affecting operator judgment of the tip-to-target distance. This is critical in industrial inspection and medical guidance applications, where even a high-resolution 4k endoscope camera system might struggle to match this real-time responsiveness if it relies on heavy digital processing.
The use of YUV output ensures effective color transmission within analog bandwidth limitations, separating luminance and chrominance to maintain image detail. A VGA resolution of 640×480 provides 480 TV lines of horizontal detail, sufficient for most industrial and medical inspection needs. While this falls far short of modern digital standards, it represents a practical balance for real-time viewing, and for many users, a cheap endoscope camera with adequate analog resolution outperforms a costly digital system that cannot deliver smooth, low-latency video in constrained environments.
Compatibility with existing display equipment should be considered. NTSC modules can connect directly to many legacy SD monitors in hospitals or industrial sites without digital conversion. However, note that NTSC's 60Hz frame rate differs from PAL's 50Hz, so multi-standard compatibility must be confirmed. For those seeking to integrate such a module with modern devices, a simple analog-to-USB converter can effectively create a camera endoscope usb solution while preserving the low-latency characteristics of the front-end.

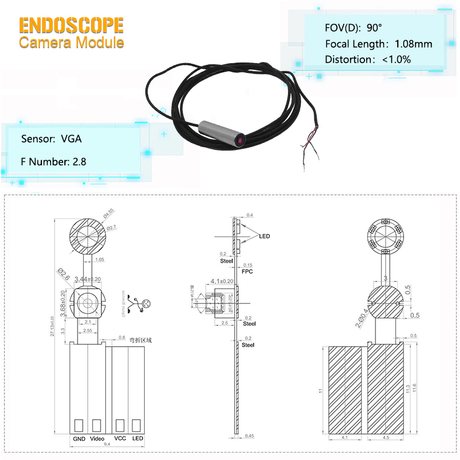

The combination of 1.08mm focal length, F2.8 aperture, and 90° diagonal field of view reflects optimization under miniaturization constraints:
·
Short focal length: Maximizes coverage in tight spaces but reduces spatial resolution at the image periphery. For a camera usb endoscope used in pipe inspection, this trade-off is generally acceptable given the need to see surrounding wall conditions.
·
·
F2.8 aperture: Balances light intake and depth of field; increases SNR in low-light conditions at the cost of shallow depth (~2–3mm at 10mm working distance). This aperture choice helps even a cheap endoscope camera perform adequately in dim industrial environments.
·
·
Low distortion (<1% TV): Achieved via aspheric lenses and precise assembly tolerances, critical for quantitative measurement or defect localization. Conventional lenses typically achieve 3–5% distortion. This level of geometric fidelity ensures that images from a 4k endoscope camera system would be equally accurate if scaled up, but at this miniature scale, it represents state-of-the-art optical design.
·
·
Focus range 10–60mm: Aligns with typical endoscopic working distances, minimizing operator adjustment and improving efficiency. Whether used in a standalone analog viewer or digitized via a camera endoscope usb adapter, this focus range covers the majority of inspection scenarios.
·
Built-in LED lighting addresses zero-light environments inside pipes, equipment cavities, or body cavities. Proper evaluation must consider effective illumination distance and uniformity:
·
Illumination intensity follows the inverse-square law, producing a 36-fold difference between 10mm and 60mm working distances. A 4k endoscope camera system would typically require sophisticated automatic exposure to handle such variation, but with analog modules, proper LED control becomes even more critical.
·
·
Brightness control may require external voltage or series resistors, or a PWM dimming version. This flexibility allows integration into various host systems, whether a dedicated industrial viewer or a custom camera usb endoscope setup.
·
·
Power consumption of 90–170mA (with LEDs) allows adaptation to different lighting needs; full brightness is used in darkness, reduced in partially lit environments for battery-powered devices. For a portable camera endoscope usb implementation, managing this power budget is essential to ensure adequate operating time.
·
The combination of steel reinforcement and flexible FPC balances miniaturization with durability:
·
Flexible FPC provides 3D routing freedom and absorbs shocks or vibration, essential for any camera endoscope usb probe that must withstand field handling.
·
·
Steel reinforcement stabilizes critical regions, maintaining optical coaxiality. This mechanical stability ensures that even a cheap endoscope camera maintains image quality over time.
·
·
Predefined bending zones concentrate stress, preventing early failure. Verify bending lifetime data for the intended application—particularly important for industrial inspection where probes undergo repeated articulation.
·
·
RoHS-compliant materials ensure global regulatory compliance, a baseline requirement for any medical or export-oriented device, whether a basic analog scope or a premium 4k endoscope camera system.
·
·
Industrial Inspection: Low distortion (<1%) ensures defect shapes are accurately rendered; NTSC low latency enables precise probe control. Consider contamination effects on lens cleanliness. A camera usb endoscope built around such a module offers the perfect balance of accessibility, real-time feedback, and image fidelity for routine maintenance tasks.
·
·
Medical Assisted Examination: Biocompatibility and sterilization compatibility (e.g., EO, low-temp plasma) take priority over imaging performance. Verify ISO 10993 testing for reusable modules. While a 4k endoscope camera system might be preferred for surgical visualization, smaller analog modules serve admirably for less critical examinations where access is the primary challenge.
·
·
Maintenance and Repair: The 4.6mm diameter fits existing openings, and the 90° field of view allows rapid identification of faults. Check electromagnetic compatibility in strong EM environments. For field technicians, a durable camera endoscope usb powered by a laptop offers a cost-effective diagnostic tool compared to specialized industrial borescopes.
·
·
Security and Research: Small size and plug-and-play analog output allow covert installation or real-time lab observation. Low distortion is valuable for recording fine phenomena. When paired with a recording device, such a setup functions effectively as a camera endoscope usb system for documentation purposes.
·
·
Educational and Hobbyist Applications: The availability of cheap endoscope camera modules has democratized access to micro-imaging technology, allowing students and enthusiasts to explore otherwise inaccessible spaces. While not medical-grade, these affordable options provide surprising utility for basic observation tasks.
·
Step 1: Access Evaluation – Measure minimum channel diameter and bend radius; confirm module compliance with physical constraints. For a camera usb endoscope application, also consider the USB interface placement and cable routing.
Step 2: Imaging Task Definition – Determine if qualitative observation (defect presence) or quantitative measurement (dimensions, positions) is required. Use calibration boards for the latter. A 4k endoscope camera system might be overkill for simple go/no-go inspections where a standard analog module suffices.
Step 3: Illumination Assessment – Test LED lighting across working distances; verify thermal performance during continuous operation. This step is identical whether evaluating a standalone analog scope or a camera endoscope usb conversion.
Step 4: System Compatibility Testing – Check NTSC sync stability, color fidelity, and brightness contrast. If using video capture cards, confirm voltage levels and timing compatibility. For those building a camera usb endoscope, verify that the chosen digitizer properly handles the analog signal without introducing latency or artifacts.
Step 5: Environmental and Reliability Testing – Conduct continuous operation within operating temperature; include vibration tests for FPC reliability. For any cheap endoscope camera, verify that cost savings have not compromised basic environmental sealing or mechanical robustness.
Selecting a 4.6mm miniature analog video endoscope module is fundamentally about translating specific application constraints into verifiable technical specifications. Its value lies not in a single leading parameter, but in achieving the optimal combination of diameter, format, distortion, illumination, and power for latency-sensitive, space-constrained scenarios. Successful selection depends on clear answers to:
How narrow is the channel?
How strict is the latency requirement?
How low must distortion be?
How dark is the environment?
When these requirements align with the module's specifications, selection evolves from passive specification comparison into active, professional system solution design. Whether the final implementation is a dedicated industrial inspection tool, a medical device, or a simple camera usb endoscope assembled from components, understanding these fundamental trade-offs ensures that the chosen module delivers appropriate performance for the intended application. Even as 4k endoscope camera systems become more prevalent, there remains a vital role for optimized analog solutions where real-time response and physical access take precedence over ultimate resolution. For budget-conscious applications, a well-selected cheap endoscope camera module can provide 80% of the utility at 20% of the cost of premium digital alternatives, making careful technical selection an economic imperative as much as an engineering one.
