In the development of industrial endoscopic inspection, minimally invasive medical devices, and micro-smart terminals, the selection of imaging modules often faces a set of mutually constraining engineering limitations: The physical dimensions of the observation channel constrain the front-end diameter to the millimeter scale. The internal space of the end device demands compact module form factors. Consistency in mass production requires strict dimensional tolerance guarantees. Meanwhile, system integration efficiency necessitates standardized electrical interfaces and protocol support. When these multiple constraints converge on a single design objective, a miniature imaging module featuring a 3.9mm ultra-micro diameter, ±0.1mm uniform tolerance, and a universal Micro USB-5P interface emerges as a technically viable option warranting systematic evaluation. This paper aims to establish an evaluation framework for selecting such modules and elucidate the intrinsic logical connections between their technical parameters and specific application scenarios, with a focus on how they collectively enable the functionality of a camera inspection scope, a medical endoscope camera, or even a waterproof endoscope camera.
The core imaging end diameter of 3.9±0.10mm should be understood as an accessibility threshold rather than a performance advantage in such applications. The engineering significance of this dimension lies in its precise positioning below the minimum inner diameter thresholds of most industrial micro-pipes and medical lumens. For instance, in common 4mm industrial pneumatic tubing and 5mm medical intubation channels, the 3.9mm diameter maintains a circumferential clearance of 0.1 to 1.1mm. This clearance ensures smooth passage while accommodating potential debris on the lens front or irregular protrusions on the tube wall. This characteristic is paramount for designing a versatile camera inspection scope that must navigate complex internal structures.
Equally critical to diameter is tolerance band width. The ±0.10mm tolerance specification means module diameters will range from 3.80 to 4.00mm during mass production. For applications requiring precise fitting with fixtures or guide sleeves, specifiers must evaluate whether this tolerance range could cause individual modules to fit too tightly or loosely. If tighter clearance requirements exist, consider specifying optional tolerance bands on drawings (e.g., 3.85-3.90mm band, 3.90-3.95mm band) to sacrifice some interchangeability for enhanced fitting accuracy.
The consistent R0.5 radius design, often overlooked, holds practical engineering value. Sharp edges may cause scratches or jamming when passing through seals or guide grooves. The 0.5mm radius effectively reduces insertion resistance without significantly increasing diameter, minimizing damage risks to soft materials (e.g., medical silicone tubing). This is a crucial safety feature for any medical endoscope camera intended for in-vivo procedures.

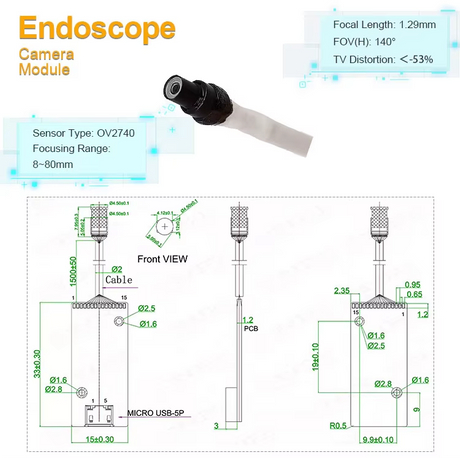

Uniform control of basic dimensional tolerances to ±0.1mm constitutes the core distinguishing feature of this module compared to customized samples. The engineering rationale behind this design is to treat the module as a standardized component, enabling seamless integration into mass-production assembly processes without requiring individual debugging for each unit. The enhanced precision of critical mounting dimensions—such as 13.5±0.30mm and 1.5±0.1mm—reflects targeted responses to specific assembly relationships. The former may correspond to axial alignment between the module and housing, while the latter may address the mating fit between connectors and PCBs.
From an assembly consistency perspective, the ±0.1mm tolerance grade equates to IT12 to IT13 precision levels, representing a medium tolerance category in precision machining. This implies that module-to-end-device design should adopt clearance fit principles, avoiding zero-clearance or interference fit structures. For optical windows or sealing structures requiring precise positioning, incorporating adjustable positioning mechanisms within the device housing is recommended to accommodate batch-to-batch dimensional variations in the modules. This is particularly relevant when aiming to create a waterproof endoscope camera, where the seal must be reliable across the entire tolerance range.
The synergy between the round steel sleeve protective structure and the tolerance system warrants attention. The steel sleeve not only provides physical protection but also offers advantages in thermal expansion coefficient matching—stainless steel's coefficient (approximately 17×10⁻⁶/℃) closely aligns with that of the PCB substrate (FR4 at about 14×10⁻⁶/℃). This reduces dimensional drift caused by thermal stress during temperature changes, helping maintain positional stability after assembly.
The combination of the Micro USB-5P universal interface with the USB 2.0 UVC protocol represents the module's most distinctive feature at the system integration level. The UVC protocol fundamentally abstracts camera devices as standard operating system resources, enabling plug-and-play functionality across mainstream platforms like Windows, Linux, Android, and macOS without requiring dedicated driver development. For device manufacturers, this translates to a 4-8 week reduction in software development cycles and eliminates the need to maintain multiple driver sets for different operating systems. This makes the module an ideal choice for a camera endoscope Android application, allowing direct connection to smartphones and tablets for instant viewing and data sharing.
Support for dual-format output (YUV and MJPEG) empowers system designers to balance image quality and bandwidth. YUV format delivers raw video data, preserving complete color and luminance information without compression artifacts, making it ideal for algorithmic analysis. However, its massive data volume demands robust transmission links and backend processing power. MJPEG format independently compresses each frame using JPEG, reducing data volume to 10%–20% of the original size for easier transmission and storage. However, compression introduces block artifacts and detail loss, potentially affecting subsequent algorithm accuracy. Selection decisions should be based on the final purpose of the image data: For quantitative measurement or AI model inference, YUV format is typically the more reliable choice. For manual monitoring or archival recording, MJPEG format offers a more pronounced bandwidth advantage. The ability to stream high definition endoscope video relies on this efficient data management.
The image orientation register's manual adjustment capability addresses practical multi-angle installation requirements. In confined spaces, modules may be mounted sideways, upside down, or in other orientations, necessitating software-based image direction correction. The ability to send control commands via USB to adjust vertical/horizontal orientation eliminates the need for hardware modifications to accommodate installation angles, significantly enhancing device layout flexibility.

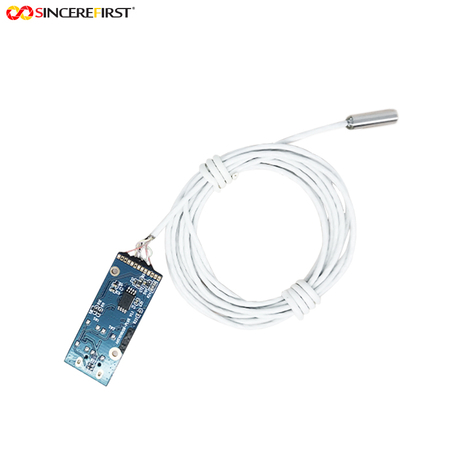

The round steel sleeve protective structure embodies an engineering approach balancing miniaturization and durability. Within the confined 3.9mm diameter space, the steel sleeve thickness is controlled at 0.2 to 0.3mm, providing sufficient impact resistance without excessively compromising internal space. Compared to plastic housings, the steel sleeve possesses an elastic modulus approximately 60 times that of engineering plastics. It can withstand axial thrust forces of 500 gf while limiting bending deformation to the micrometer level, effectively preserving the coaxial alignment of internal sensors and lenses. This robustness is foundational for the reliability of any high definition endoscope that must withstand repeated use.
A critical consideration is the non-removable nature of the steel sleeve. The specification explicitly states this is an integrated, fixed design and discourages user disassembly. The engineering rationale behind this warning is that the coaxial alignment between the steel sleeve and lens assembly is achieved through precision tooling during assembly. Disassembly and reassembly cannot restore the original alignment accuracy, leading to optical axis deviation, degraded edge image quality, or even blurred images. For applications requiring lens replacement or sensor cleaning, modules with removable specifications should be selected directly.
Compliance with industrial standards for interface insertion/removal cycles addresses reliability demands in high-frequency usage scenarios. The standard insertion/removal lifespan for USB Micro interfaces typically ranges from 5,000 to 10,000 cycles. For applications involving dozens of daily insertions/removals, this supports usage cycles spanning months to years. If applications require more frequent insertion/removal (e.g., production line testing equipment), consider using extension cables for fixed connections at the device end to reduce direct insertion/removal on the module interface.
Industrial Borescope Inspection: Core requirements for modules in this scenario are “fine-diameter accessibility” and “usable imagery.” The 3.9mm diameter ensures physical access to micro-ducts over 4mm in diameter; dual YUV/MJPEG format output provides foundational data for subsequent image enhancement and measurement analysis. Special attention must be paid to the impact of duct wall materials on imaging—shiny metal interiors may cause extensive reflections, necessitating exposure control through shooting angle adjustments or post-processing. Here, the module functions as the essential eye of a camera inspection scope.
Medical Minimally Invasive Observation: In applications involving human contact, selection priorities shift: biocompatibility takes precedence over imaging performance, and single-use feasibility over durability. While steel housings have a strong biocompatibility track record, surface treatment processes may introduce cytotoxicity risks. Request suppliers to provide ISO 10993 series test reports during selection. For reusable devices, verify that the module's sterilization method (ethylene oxide, low-temperature plasma, etc.) is compatible with the steel housing's sealing structure. The ability to maintain a sterile field is non-negotiable for a medical endoscope camera.
Micro Security Surveillance: Concealment and reliability are core requirements for this application. The 3.9mm diameter enables embedding within everyday objects like light fixtures, sockets, and switch panels for discreet installation. ±0.1mm tolerance ensures consistency in bulk installations, while UVC protocol support enables multi-channel video networking without complex driver development. Verify the module's low-light performance—additional lighting may be required in dimly lit surveillance environments. For outdoor installations, the module would need to be integrated into a robust waterproof endoscope camera housing to ensure durability.
Portable Smart Devices: For handheld detectors and compact scanning devices, the module's miniature size and plug-and-play functionality create synergistic advantages. The 3.9mm diameter easily integrates into probe tips, while UVC protocol support enables direct connection to smartphones or tablets via standard USB ports without requiring complex embedded controllers. This perfectly addresses the market need for a portable camera endoscope android system. Selectors must evaluate whether the module's power consumption falls within mobile device power supply limits—under 5V power, total module and LED power consumption should remain below 500mW to prevent excessive battery drain.
Based on the above analysis, the recommended selection decision path is as follows:
First, Accessibility Assessment. Precisely measure the target channel's minimum inner diameter and minimum bending radius to confirm whether the 3.9mm outer diameter and rigid segment length meet physical passage requirements. For scenarios involving elastic seals or self-sealing valves, verify that the rounded corners are sufficient to prevent scratching.
Second, Tolerance Adaptation Assessment. Calculate the clearance/interference relationship between the module's dimensional tolerance band and mating components based on the terminal device's assembly structure. For precision positioning requirements, obtain 5 to 10 module samples for actual assembly testing to statistically analyze the distribution characteristics of mating dimensions.
Third, Image Quality Validation. Capture resolution test charts at typical working distances to evaluate center/edge field resolution and color reproduction accuracy. For applications involving motion detection, verify motion clarity and motion blur at 60fps (if supported). This step confirms if the module truly qualifies as a high definition endoscope solution for your needs.
Fourth, platform compatibility testing. Verify plug-and-play compatibility on target host devices (industrial PCs/smartphones/embedded platforms). Test decoding stability for dual-format output across different operating systems. For applications requiring multi-channel concurrency, evaluate USB bandwidth utilization and frame rate maintenance capability. Ensure that the camera endoscope android experience is seamless on your target mobile OS.
Fifth, environmental and reliability testing. Conduct 24-hour continuous operation testing within the operating temperature range, monitoring image quality degradation and frame rate stability. For water-exposed or high-humidity applications, simulate IP rating tests to validate sealing effectiveness, a critical step in developing a waterproof endoscope camera.
Selecting a 3.9mm ultra-miniature USB imaging module fundamentally involves translating highly specific application constraints into verifiable technical specifications. Its value lies not in leading individual parameters, but in finding the optimal combination solution that best matches compact imaging scenarios amidst multidimensional constraints such as diameter, tolerances, interfaces, protection, and cost. Successful selection stems from clear answers to fundamental questions within the target application: “How fine must the channel be?”, “How high must the precision be?”, “How demanding is the environment?”, and “What is the underlying platform?”. When these answers achieve intrinsic alignment with technical specifications, the selection decision transcends passive specification comparison, elevating to the professional practice of actively defining system solutions for everything from industrial camera inspection scopes to advanced medical endoscope cameras.
