In visualization applications across industrial inspection, precision manufacturing, and medical assistance, imaging system selection often faces unique physical constraints: observation channel diameters measured in millimeters, operating environments entirely devoid of natural light, and target surfaces with complex and variable materials. When conventional cameras are too bulky to access inspection sites, or universal imaging solutions fail due to insufficient illumination in confined spaces, a miniature endoscope module—defined by its ultra-small diameter, integrated illumination, and standard interfaces—emerges as a viable technical option warranting systematic evaluation. This paper aims to establish an evaluation framework for selecting such 0.3MP-grade miniature imaging modules and elucidate the intrinsic logical relationship between their technical parameters and specific application scenarios.

I. Engineering Interpretation of Physical Dimensions as Accessibility Metrics

The 4.5mm main body diameter (with an optional 5.0mm specification) should be understood as an access criterion rather than a performance advantage in such applications. The engineering significance of this dimensional scale lies in its precise undershoot of the minimum inner diameter threshold for most industrial pipelines: taking common 1/4-inch (6.35mm) air tubes and 3/8-inch (9.5mm) water pipes as examples, a 4.5mm probe maintains over 1.5mm of circumferential clearance. This ensures smooth passage while providing space for residual liquid or dust at the lens tip.

Equally critical to diameter is the module's rigid segment length and flexible transition design. Modules utilizing Rigid-Flex PCB technology typically feature a front rigid segment between 8 and 12 mm. This design trade-off stems from practical constraints: an excessively long rigid segment cannot navigate curved pipes, while an overly short segment compromises sensor-to-lens coaxial alignment. Selection must account for the target detection path's minimum bend radius—if pipes feature 90-degree turns with radii under 10mm, verify whether the module's flexible section can withstand repeated bending at this curvature without damaging internal circuits.

The design detail of locally reinforcing with 0.2mm steel plates is often overlooked yet holds substantial engineering value. During probe advancement, the front end endures axial resistance and radial bending moments from obstacles or pipe walls. With an elastic modulus approximately 60 times that of the FPC substrate, the steel plate controls bending deformation to the micrometer level in critical stress zones. This prevents relative displacement between the sensor and lens, thereby avoiding focal shift or optical axis tilt.

II. Applicability Boundaries and Pixel Size Value of 0.3MP Resolution

An effective pixel array of 640×480 (approximately 0.3MP) is indeed an entry-level specification within consumer electronics evaluation frameworks. However, within the specific application domain of industrial endoscopic inspection, the applicability of resolution must be reassessed in conjunction with working distance, field-of-view coverage, and pixel size.

Taking a typical pipeline inspection scenario as an example, working distances typically range from 10 to 50 millimeters, with field-of-view coverage spanning approximately 20 to 80 millimeters. Under these conditions, 0.3MP resolution translates to each pixel corresponding to a physical object dimension of roughly 80 to 300 micrometers. This scale is sufficient to clearly display pipeline inner wall deposits (typically larger than 1 millimeter), weld undercuts (depth exceeding 0.5 millimeters), and moderate corrosion pits (diameter 1–2 mm). While this resolution falls short for applications requiring micron-level crack detection, it provides sufficient decision-making basis for routine pipeline maintenance, foreign object detection, and blockage localization—tasks comprising over 80% of industrial inspection needs.

This relates to the pixel size design of the BF20A6 sensor. Although specific values are not provided in the description, benchmarking against comparable products suggests its pixel size likely falls within the 2.2 to 3.0 micrometer range. Compared to mainstream high-pixel sensors with 0.8 to 1.2 micrometer pixels, this scale represents a 4 to 8-fold increase in single-pixel light-sensitive area. In enclosed spaces relying solely on LED illumination, larger pixel areas translate to higher signal-to-noise ratios and lower noise levels. This directly enhances image usability—improving edge sharpness, discernibility of shadow details, and color fidelity.

III. Engineering Logic and Limitations of the Integrated Lighting System

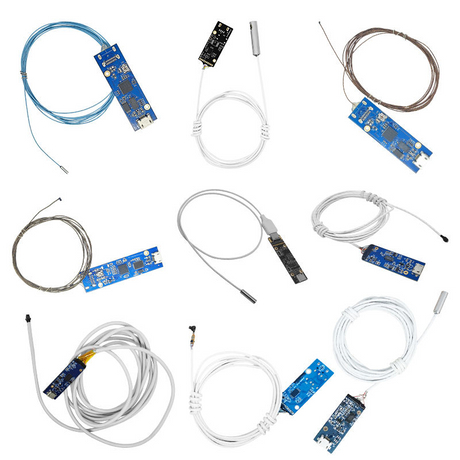

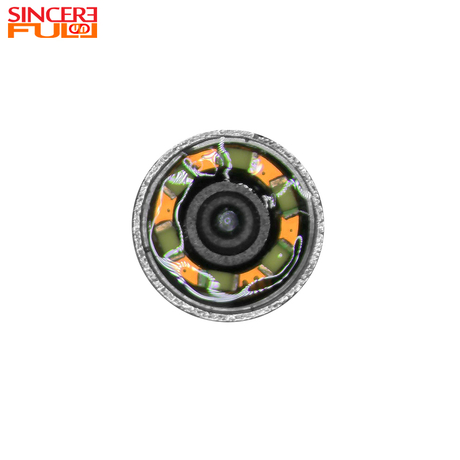

The integrated configuration of six high-brightness LEDs reflects a deep understanding of the core imaging challenge in enclosed spaces: in environments completely devoid of natural light, the illumination system and imaging system must form a self-consistent unit. The ring-symmetrical layout is designed to achieve high alignment between the illumination optical axis and the imaging optical axis, effectively suppressing the “tunnel effect” common in pipeline scenarios—where the central area is overexposed while side walls suffer from insufficient illumination.

Critical evaluation factors include the illumination's effective working distance and uniformity. LED light intensity follows the inverse square law, meaning illumination at a 10mm working distance is 25 times weaker than at 50mm. For scenarios requiring simultaneous observation of near and far targets, a single fixed brightness setting struggles to balance exposure needs at both ends. Selectors should verify whether the module supports PWM dimming or multi-level brightness control to dynamically adjust illumination intensity based on actual working distance.

Thermal management presents another implicit constraint for integrated lighting. Six LEDs operating simultaneously within an enclosed metal tube generate significant heat accumulation. Estimating 30 milliwatts per LED, the total 180-mW load can cause a temperature rise of 5 to 10°C within the confined 4.5-millimeter diameter space. For applications requiring prolonged continuous operation, evaluate the module's thermal dissipation path design. If necessary, incorporate automatic brightness attenuation or intermittent illumination mechanisms at the software level.

IV. System Integration Value and Limitations of the USB 5-Pin Interface

The selection of the USB 5-pin interface reflects a balance between electrical integration convenience and mechanical reliability. Support for standard USB protocols enables plug-and-play functionality across mainstream operating systems like Windows, Linux, and Android without requiring dedicated driver development. For device manufacturers, this translates to a 4-8 week reduction in software development cycles and eliminates the need to maintain multiple driver sets for different operating systems.

The pin definition for the 5-pin interface typically includes 5V power, GND, Data Positive (DP), Data Negative (DM), and reserved pins (e.g., ID or shield ground). Compared to standard USB Type-A connectors, 5-pin ribbon cable interfaces offer superior space efficiency within miniature devices but introduce new considerations for connection reliability. In vibrating environments, contact resistance at ribbon connectors may vary with vibration frequency, causing instantaneous image frame drops or noise. Selectors should evaluate whether additional adhesive bonding or latching connector versions are required based on the target application's vibration spectrum.

V. Differentiated Adaptation Assessment for Application Scenarios

Industrial Pipeline Inspection Scenario: The core requirements here are “access capability” and “basic visibility.” The 4.5mm diameter ensures physical accessibility to pipes of 3/8 inch and larger; the combination of 0.3MP resolution and six LEDs is sufficient for blockage localization, preliminary weld inspection, and corrosion grading. Special attention must be paid to potential lens contamination from residual liquids inside pipelines. When selecting models, confirm whether the front end of the module has basic splash resistance.

Internal Inspection of Precision Electronics and Machinery: In these scenarios, inspected objects often feature complex geometries and high-value attributes. The module's steel-reinforced design provides essential structural rigidity when navigating deep holes and cavities, preventing probe jamming or damage to delicate inner surfaces. Verify the compatibility between field of view (FOV) and working distance—for densely packed circuit board components, an overly wide FOV may cause targets to be obscured by adjacent elements, while an overly narrow FOV necessitates repeated repositioning.

Building Structures & Appliance Internal Inspection: While imaging quality requirements are relatively lenient for these applications, they demand greater emphasis on probe length and portability. Selectors must evaluate the module's overall integration solution, including whether cable length meets the distance requirements from wall openings to display devices, and whether direct connection to portable display terminals (e.g., smartphones, tablets) via OTG adapters is feasible.

Limited Medical and Veterinary Diagnostics: In applications involving contact with biological subjects, selection priorities shift: biocompatibility takes precedence over imaging performance, and single-use feasibility over durability. While steel housings have a good biocompatibility track record, surface treatment processes may introduce cytotoxicity risks. Request suppliers to provide ISO 10993 series test reports during selection. For veterinary clinic applications, module sterilizability is equally critical—confirm its tolerance for alcohol swabbing or low-temperature plasma sterilization.

VI. Selection Decision Framework and Validation Recommendations

Based on the above analysis, the recommended selection decision path is as follows:

First, Accessibility Assessment. Precisely measure the target channel's minimum inner diameter and minimum bend radius to confirm whether the 4.5mm outer diameter and rigid segment length meet physical passage requirements. For channels with residual fluids, evaluate the lens's contamination resistance and cleaning protocols.

Second, Imaging Task Qualification. Determine whether the core task is qualitative observation (presence of foreign bodies/obstructions) or quantitative measurement (erosion pit depth/crack width). For the former, 0.3MP resolution suffices; for the latter, introduce calibration algorithms while accepting measurement uncertainty in pixel-to-physical-dimension mapping.

Third, lighting adaptation verification. Test illuminance distribution at various working distances within simulated pipelines to determine if multi-level brightness adjustment is required. For transparent or translucent walls, assess the interference level of internal reflections on imaging quality.

Fourth, electrical integration testing. Verify plug-and-play compatibility on target host devices and measure module surface temperature rise after 2 hours of continuous operation. For vibration applications, add random vibration testing to validate connector contact reliability.

Fifth, regulatory and supply chain audits. For medical auxiliary applications, request biocompatibility test reports; for industrial mass applications, confirm suppliers' batch delivery capacity and batch consistency control levels.

Conclusion

Selecting a 0.3MP micro-endoscope module fundamentally involves progressively translating highly specific application constraints into verifiable technical specifications. Its value lies not in leading pixel counts, but in finding the optimal combination solution—balanced across diameter, illumination, interface, cost, and other constraints—that best matches industrial inspection and medical assistance scenarios. Successful selection stems from clear answers to fundamental questions within the target application: “How thick are the channels?”, “What are the working distance geometries?”, “Is illumination required?”, and “What are the backend processing capabilities?”. When these answers achieve intrinsic alignment with technical specifications, the selection decision evolves from passive specification comparison to the professional practice of actively defining system solutions.
