Oral self-examination has always been difficult. Deep within the teeth, between gaps, and on the chewing surfaces of molars—these areas are hard to see with the naked eye, and ordinary mirrors lack sufficient magnification. Smart dental mirrors have changed this: by connecting to a mobile app, users can capture real-time images seen by the mirror, observing every tooth in detail on their phone screen, with a magnifying effect that makes teeth appear "larger and larger."
This "visualized" experience transforms home oral care from "guesswork" to "seeing is knowing." Yet behind this experience lies a component crucial to the product's core value—the camera module. The clarity of the image, the accuracy of colors, and the smoothness of operation all depend on this "eye" hidden within the mirror handle. The quality of the camera module directly determines whether a smart dental mirror can truly help users identify oral issues.
What Kind of Camera Does a Smart Dental Mirror Need?
Unlike ordinary cameras, those used in smart dental mirrors face a specific set of requirements:
Miniaturization: Must be embedded in a small mirror handle without increasing overall size, allowing easy access within the user's mouth.
High-Definition Imaging: Needs to capture minute details like fine tooth textures, dental plaque, and signs of early-stage caries—details often only millimeters in size.
Low Distortion: The oral cavity has a complex structure; significant image distortion would prevent users from accurately judging the true position and shape of teeth.
Low-Light Performance: The mouth lacks sufficient light; the camera must deliver clear images with only the miniature LED illumination.
Interface Compatibility: Needs to communicate in real-time with the mobile app, transmitting images to the screen via USB.
What Does a Camera Module That "Understands the Oral Cavity" Look Like?
Based on our understanding of consumer medical and portable endoscope applications, a camera module truly suited for a smart dental mirror needs precise alignment across three dimensions: optics, sensor, and interface.
Optical Design: Making Each Tooth "Appear Real"
When a user inserts the dental mirror into their mouth, they expect to see a true, undistorted image of their teeth on the phone screen. If the image has barrel distortion, the shape of teeth becomes skewed—front teeth appear wider than they are, the chewing surfaces of back teeth become stretched and distorted. This is unhelpful for assessing dental health.

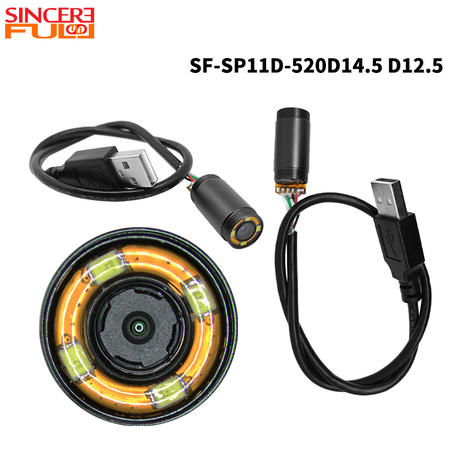

This HD endoscope camera module features a 72° field of view (FOV). 72° is a proven "golden angle"—it covers a sufficient area of the mouth for the user to easily locate the target region, yet avoids pronounced edge distortion from excessively wide angles. Combined with an F2.8 large aperture and an auto-focus range from 50mm to infinity, it delivers clear imaging whether the user is inspecting a tooth up close or viewing the overall oral condition from slightly further away.
Sensor Quality: "Seeing Clearly" in Confined Spaces
The oral cavity is a confined space with typically poor lighting. Users rely solely on the dental mirror's built-in miniature LED illumination, requiring the camera to have excellent low-light imaging capability.
This miniature inspection camera module incorporates a 1/5-inch CMOS sensor with an effective resolution of 2592(H) × 1944(V), approximately 5 megapixels. With a 1.12μm pixel size, it captures sufficiently rich detail. Its advantages include:
High-Definition Resolution: 5 megapixels are sufficient to clearly render fine tooth surface textures, the boundaries of dental plaque, changes in gum color, and signs of early-stage caries, helping users accurately assess their oral health status.
Low Noise Performance: Even with only the miniature LED illumination, the image remains clean and detailed, preventing noise from obscuring critical details.
It also integrates four white SMD LEDs (6000-6500K color temperature), providing ample, uniform illumination for close-up observation, ensuring a clear, realistic image inside the mouth.
Interface and Compatibility: "Seamless Connection" with Mobile Apps
The core experience of a smart dental mirror lies in "connecting to a mobile app to capture real-time images." This requires the camera module to work smoothly with various Android devices.
As an ODM endoscope camera module, it uses a standard USB 2.0 interface for plug-and-play functionality with Android phones, tablets, and other devices. For dental mirror manufacturers, this offers flexible integration options—whether designing a wired direct-connect model or one using wireless transmission, mature interface solutions are available.
This mini inspection camera also supports mainstream operating systems like Windows XP and Windows 7, facilitating system integration and driver development for manufacturers. Standardized interface protocols significantly lower the technical barriers to market entry.
Reliability: "Durability" for Daily Use
Smart dental mirrors are personal care products used daily and need to be sufficiently durable. Users may accidentally drop them or expose them to water during cleaning.
This module adheres to strict quality control standards during manufacturing: supporting an operating temperature range of 0°C to +60°C for stable operation in different environments, and utilizing anti-static packaging and handling protocols to minimize ESD risk. As a precision optical product, it should be handled with care to avoid mechanical shock and lens contamination, ensuring long-term stable imaging quality.
Transforming "Oral Self-Examination" from "Vague Guesswork" to "Clear Visibility"
Returning to the smart dental mirror itself—its core value is "allowing everyone to easily see their own teeth." Features like a detachable decorative screen cover, lightweight body, and grip designed for both children and adults all aim to make oral examination more convenient and engaging.
When a user inserts the dental mirror, sees their teeth magnified and clear on the phone screen, and experiences that "so this is what my teeth look like" moment of discovery, it's a powerful motivator for establishing daily oral care habits. A good camera module makes this experience more realistic and reliable:
With a clear image, users can promptly detect food debris between teeth, slight redness at the gum line, or early discoloration on tooth surfaces.
With accurate colors, users can correctly assess gum health and whether teeth need more thorough cleaning.
With smooth operation, users won't lose patience due to lag or disconnection and will be more likely to use the product consistently.
Creating Truly Reliable "Eyes" for Oral Care Products
The oral care market is undergoing a transformation from "blind operation" to "visualization." Smart dental mirrors, visualized water flossers, oral endoscopes—the core competitive edge of these products lies in their ability to provide users with clear, realistic, and easy-to-use visuals.
And it all starts with the right camera module. If you are developing smart dental mirrors or other oral visualization products, we offer comprehensive support in camera module selection, optical customization, system integration, and mass production delivery. Start with a module, and let your product help more people see their own oral health clearly.
