In an endoscope camera module, reducing the camera-head diameter does not only create a mechanical challenge. It also makes optical assembly more sensitive.
A small-diameter camera head may need to integrate an image sensor, miniature lens, illumination components, wiring, protective structure, and sealing design within extremely limited space.
After the camera head is assembled and enclosed, the lens position is usually difficult or impossible to readjust. The optical relationship between the lens and image sensor must therefore be properly established before final assembly.
Active Alignment can provide an important advantage in this process.
Endoscope camera modules are commonly used for close-range observation in narrow spaces.
Depending on the project, the camera may need to inspect small components, internal structures, pipes, cavities, machinery, oral areas, or other locations that are difficult to access with a conventional camera.
These applications may require a combination of:
A small camera-head diameter.
A short working distance.
A relatively wide field of view.
Usable detail near the center and edges.
Integrated LED illumination.
A protective or sealed camera-head structure.
When the lens and sensor are not correctly positioned, a camera may still generate an image, but the image may not provide the expected inspection value.
Possible results include a sharp center with soft edges, one side appearing clearer than the other, an unexpected focus position, or noticeable differences between production units.
The smaller and more integrated the camera head becomes, the more difficult it may be to compensate for these problems after assembly.
During Active Alignment, the image sensor captures a live test image while the lens or sensor position is adjusted.
The system evaluates imaging results from different areas of the frame instead of relying only on the mechanical position of the lens holder. When the required optical position is reached, the lens assembly is fixed.
This method can be used to control lens-to-sensor distance, optical-center deviation, and lens tilt according to the project’s optical structure and image-quality criteria.
For an endoscope camera, this approach is valuable because the camera head often becomes a compact, enclosed assembly. Establishing the correct optical position before final fixation helps reduce the risk of discovering focus or edge-quality problems after the camera has already been integrated into its shell.
Resolution specifications alone do not determine whether an endoscope camera can reveal useful close-range detail.
The actual result also depends on the lens design, working distance, depth of field, illumination, optical alignment, sensor performance, and image processing.
If the lens plane is tilted relative to the sensor, different parts of the observed surface may not reach similar focus at the same distance. This can be especially noticeable when inspecting flat surfaces, small components, narrow tubes, or objects positioned close to the camera head.
AA helps control this relationship during assembly, supporting more balanced sharpness across the image.
It does not guarantee that every point in the image will have identical resolution. However, it helps prevent avoidable assembly deviation from becoming an additional source of image-quality loss.
Many endoscope applications require more than a single working prototype.
OEM equipment developers may need camera modules with consistent working distance, viewing direction, image center, and overall clarity across repeated production batches.
If the optical position varies from one camera head to another, an inspection device may produce inconsistent results even when the electronic design and software remain unchanged.
For example, one unit may show the target clearly at the expected distance, while another unit needs to be moved closer or farther away. One camera may have acceptable corner detail, while another may appear noticeably softer on one side.
By aligning the optical components according to actual image feedback, AA can help reduce this type of unit-to-unit variation.
Active Alignment is valuable, but it cannot solve every imaging problem by itself.
A successful endoscope camera module also requires the correct combination of:
Sensor size and resolution.
Miniature lens design.
Field of view.
Working distance and depth of field.
Camera-head diameter.
LED layout and illumination uniformity.
Heat and power control.
Cable and interface design.
Shell protection and sealing.
ISP or firmware tuning.
AA should therefore be considered part of the complete optical and manufacturing plan, rather than a replacement for product design.

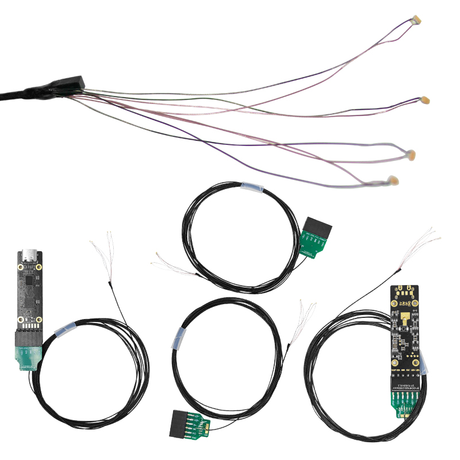

SincereFull focuses on endoscope camera modules for industrial inspection and equipment-development projects, supported by SincereFirst’s camera module manufacturing capabilities.
Our available manufacturing resources include Active Alignment capability for projects that require more precise control of lens and sensor positioning.
Depending on the project, we can evaluate camera-head diameter, lens structure, working distance, field of view, illumination, protective shell, interface, cable arrangement, and optical alignment together.
Potential project directions include:
Industrial borescope equipment.
Pipe and cavity inspection tools.
Machinery maintenance cameras.
Dental and oral imaging equipment development.
Veterinary endoscope equipment development.
Compact visual inspection devices.
The suitability of AA should be determined according to the optical structure and image-quality requirements of each project. It should not be treated as a universal label applied to every endoscope camera module.
Small-diameter endoscope cameras have limited internal space and are difficult to adjust after final assembly. As a result, the relative position of the miniature lens and image sensor can have a direct impact on close-range clarity, edge performance, and production consistency.
The AA process evaluates the actual image during assembly and adjusts the optical components before they are fixed.
For endoscope camera module projects requiring compact dimensions, controlled working distance, and consistent inspection images, Active Alignment capability can provide a meaningful manufacturing advantage.
