In industrial precision inspection, equipment endoscope maintenance, and near-field image acquisition, imaging systems often need to achieve high clarity, low distortion, and reliable physical protection at close distances of 30–50mm. When the inspection environment may involve moisture, dust, or minor impacts, a USB endoscope module featuring 8mm diameter, 1080P resolution, IP67 waterproofing, and 30–50mm dedicated macro focus becomes an engineering solution worth evaluating. This article provides a clear selection framework from four dimensions—optical focus, image performance, structural protection, and interface compatibility—while incorporating key terms such as 1080p endoscope camera module, custom endoscope camera module, usb2.0 endoscope camera, and Mini Camera Module to help you precisely match industrial macro inspection and confined space observation needs.
First step: Confirm whether the typical working distance of the inspection target falls within the 30–50mm range.
The optical system of this module is specially optimized for 30–50mm close-range inspection, with a focal length of 2.63mm, aperture F2.8, DFOV 60°, and TV distortion <1%. As a representative 1080p endoscope camera module, the engineering significance of this design lies in:
30–50mm covers most industrial macro inspection scenarios, from precision part surface defect inspection (~30mm) to pipe wall condition assessment (~50mm).
The dedicated macro design enhances small target detail restoration, eliminating frequent focus adjustments and improving inspection efficiency.
Distortion controlled within 1% ensures no barrel distortion at the edges, guaranteeing accuracy in defect size judgment.
For a Mini Camera Module, fixed focus simplifies the structure but limits depth of field. When selecting, verify: If the working distance is often below 30mm (e.g., micro-scratches on chip surfaces), confirm near-distance clarity; if exceeding 50mm (e.g., large cavity interiors), edge image quality may slightly degrade—test at actual working distances.
Second step: Assess the dual requirements for dynamic smoothness and static detail resolution.
This module incorporates a 1/5-inch 2MP sensor with 1.6μm pixel size, outputting 1920×1080 resolution at 30fps. As a standard usb2.0 endoscope camera, the engineering value of this parameter combination lies in:
1080P resolution clearly reveals 0.1mm-level micro-defects (e.g., metal surface cracks, solder joint voids), meeting precision inspection needs.
30fps ensures smooth画面 when moving the probe, avoiding motion blur that could lead to misjudgment, ideal for handheld scanning or robotic arm guidance.
Compared to 4K solutions, 2MP transmits stably over USB 2.0 bandwidth without compression or frame rate reduction, and the host decoding burden is lighter.
When selecting, assess: If only macroscopic blockages or obvious damage need judgment, 720P may suffice; but for identifying fine defects on precision components, 1080P is a necessary threshold. The dual-format output (YUV/MJPEG) allows flexible switching between image quality and bandwidth.
Third step: Evaluate the risks of liquid contact, dust, and mechanical impact in the inspection environment.

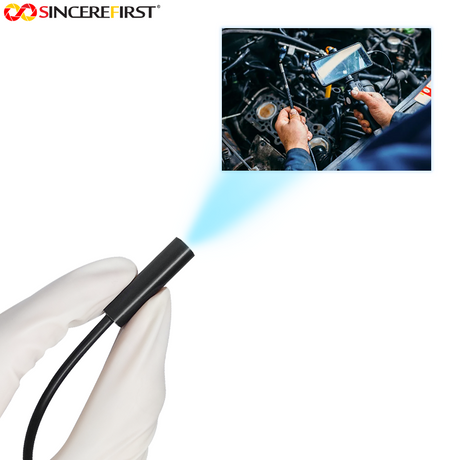

This module has an 8±0.10mm diameter probe with an IP67 waterproof stainless steel shell, significantly improving compression and bending resistance. The engineering significance:
Adapts to harsh conditions such as wet pipes, coolant splash, and outdoor rain, ensuring long-term stability of internal optics and electronics.
The steel shell also provides drop and crush protection, suitable for automotive repair, heavy industry, and other collision-prone scenarios.
The 8mm diameter balances imaging performance with accessibility to most industrial pipes and equipment cavities (inner diameter ≥9mm).
As a base version of a custom endoscope camera module, this steel shell meets most industrial needs. For smaller diameters or higher protection ratings (e.g., IP68), consult customization services. Note: IP67 is not suitable for high-temperature liquids or high-pressure water jets; for oily environments, confirm the corrosion-resistant coating on the steel shell.
Fourth step: Confirm the host platform type and system integration complexity.
This module uses a USB 2.0 interface, strictly follows the UVC driver-free protocol, and supports MJPEG/YUV dual output formats. As a mature usb2.0 endoscope camera, its core value lies in:
No driver installation required; automatically recognized as a camera device by Windows, Linux, Android, or embedded boards.
Dual-format output allows switching to MJPEG (high compression) when bandwidth is limited, or YUV (lossless) when raw quality is needed.
Plug-and-play significantly reduces on-site deployment time, suitable for non-technical personnel.
For device manufacturers needing deep integration, this module can also serve as a custom endoscope camera module with options such as cable length, connector type, and LED lighting configuration. When selecting, verify that the target host supports UVC (most modern devices do) and evaluate cable routing compatibility with your device’s internal layout.
Application Scenario | Recommended Configuration | Selection Rationale |
|---|---|---|
Precision mechanical part surface defect inspection | Standard 8mm probe + ring LED | 30–50mm macro clearly shows 0.1mm cracks; 1080P ensures detail; steel shell resists oil |
Industrial pipe inner wall corrosion assessment | IP67 steel shell + long cable | 8mm diameter enters pipes; waterproof/dustproof; 30fps suits continuous scanning |
Electronics manufacturing solder joint quality check | Fixed focus + high-CRI LED | 1080P resolves solder ball morphology; low distortion aids size comparison |
Automotive engine block internal inspection | Oil-resistant steel shell + USB extension | 50mm working distance covers cylinder walls; IP67 handles coolant residue |
Laboratory specimen macro recording | Desktop stand + standard USB | Plug-and-play to PC; 1080P outputs report-ready images |
The core value of the 8mm 1080P waterproof endoscope module lies in integrating the high image quality required by a 1080p endoscope camera module, the compact diameter of a Mini Camera Module, the plug-and-play convenience of a usb2.0 endoscope camera, and IP67 industrial protection. When selecting, prioritize three questions:
Working distance: Is it consistently within 30–50mm? If yes, the fixed macro solution is most reliable; if distances vary, consider auto-focus or lens changes.
Environmental risks: Is there potential contact with water, dust, or mechanical impact? The IP67 steel shell is necessary; dry, clean environments may allow non-waterproof versions to reduce cost.
Host platform: Does it support UVC? Most computers, tablets, and embedded systems do.
As a manufacturer with over 30 years of optical imaging experience, SincereFirst not only supplies standard 8mm waterproof modules based on 1080p endoscope camera module, but also customizes cable length, LED color temperature, housing materials, and connector types (custom endoscope camera module) according to your inspection scenario. We recommend obtaining engineering samples before mass production and conducting image clarity, waterproofing, and long-term stability tests on real workpieces or pipes to ensure your selection is both scientifically sound and forward-looking.
