In the development of embedded endoscope devices, portable inspection instruments, and wireless vision systems, camera module selection often requires trade-offs among transmission stability, connection reliability, optical suitability, and system expandability. When the inspection scenario involves wiring in tight spaces, high-frequency connector mating, and flexible migration from wired to wireless, the BF2013-based DVP interface 23-pin gold finger endoscope module becomes an industrial-grade solution worth evaluating. This article provides a practical selection framework from four dimensions—interface reliability, optical performance, mechanical strength, and wireless expansion—while incorporating key terms such as micro endoscope camera module, medical endoscope camera module, cmos module camera, industrial endoscope camera module, and BF2013 Sensor to help you precisely match embedded vision inspection needs.
First step: Evaluate internal device space, connector mating frequency, and signal integrity requirements.
This module uses a standard DVP parallel digital interface with a 23-pin gold finger connector. The core advantages of a gold finger are:
Low contact resistance: The gold-plated layer resists oxidation and corrosion, maintaining excellent conductivity over long-term use and preventing signal degradation.
High mating cycle life: Rated for thousands of insertions, ideal for devices requiring frequent probe changes or modular designs.
Compact structure: The connector height is only a few millimeters, allowing board-to-board direct plugging inside narrow devices without extra cables.
As a highly reliable packaging form of cmos module camera, the 23-pin gold finger is particularly suitable for:
Portable endoscope host + interchangeable probe designs (e.g., handheld display with swappable probes)
Direct motherboard integration in embedded systems (no FPC cables, reducing assembly steps)
Modular inspection instruments that need fast probe replacement in industrial field settings
Note: Gold finger connectors have strict requirements for PCB thickness, gold layer thickness, and mating guidance. Confirm the matching socket model and soldering process with the module supplier to avoid image flicker due to poor contact.
Second step: Determine the typical working distance and field coverage requirements of the target.
This module incorporates the BF2013 Sensor with an optical system professionally optimized for endoscope inspection:
Depth of field: 20–60mm, covering most common endoscope working distances
Field of view: 88° diagonal, capturing a wider area per frame
Maximum image circle: 4.8mm, ensuring no vignetting at the edges
As the core imaging unit for industrial endoscope camera module or medical endoscope camera module, the engineering value of this optical design lies in:
The 20–60mm depth of field requires no focusing, delivering clear images across typical distances—from engine block interiors to air conditioning ducts.
The 88° wide angle reduces probe movement, improving inspection efficiency—for example, scanning pipe walls covers a larger circumferential area per advancement.
The fixed-focus design eliminates the focusing motor, fundamentally enhancing vibration resistance, suitable for vehicle-mounted or handheld devices.
When selecting, verify: If the target is frequently within 20mm (e.g., precision electronic component solder joints), confirm the minimum focusing distance is sufficient; if distances exceed 60mm (e.g., large-diameter pipes), image quality may slightly degrade at the edges—test at actual distances.
Third step: Assess durability under repeated bending, mating, and vibration.
This module uses a 0.1mm steel sheet and PI (polyimide) double-layer reinforcement scheme, with critical dimensional tolerances strictly controlled at ±0.03mm. The engineering significance:
The steel sheet provides rigid support, preventing FPC tearing during insertion or bending.
The PI layer offers excellent heat resistance and flexibility, adapting to repeated flexing.
Precision tolerances ensure accurate alignment with the 23-pin socket, avoiding uneven contact pressure.
For a micro endoscope camera module, structural reliability directly impacts on-site service life. In applications like automotive repair or industrial pipeline inspection—where frequent mating and repeated cable bending occur—this reinforcement significantly reduces failure rates.
Fourth step: Assess whether wireless transmission capability and deployment flexibility are needed.

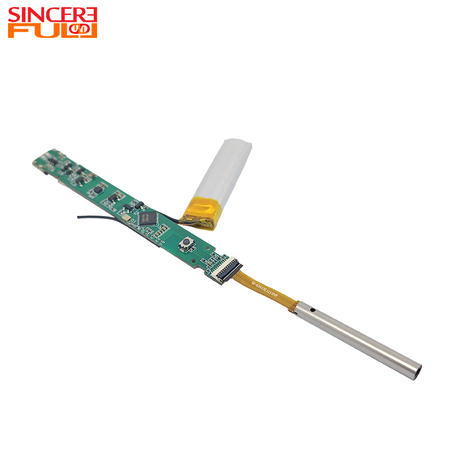

The DVP interface of this module can directly mate with SincereFirst’s SF-WiFiE3 adapter board to quickly build a wireless endoscope system. The value of going wireless:
Breaks cable length limitations; operators can observe from a safe distance.
Supports simultaneous image reception on multiple terminals (phones, tablets), facilitating team collaboration.
Ideal for outdoor, high-altitude, or tight-space deployments where cables are impractical.
Note: Wireless transmission introduces some latency (typically 50–150ms). For real-time critical operations (e.g., precision soldering guidance), wired mode may be preferred; for inspection and recording tasks, the convenience of wireless far outweighs the latency.
Application Scenario | Recommended Configuration | Selection Rationale |
|---|---|---|
Portable wireless endoscope (consumer) | BF2013 + WiFi adapter | 23-pin gold finger allows easy probe changes; wireless supports phone direct view |
Medical ENT inspection probe | Medical-grade housing + disposable sheath | 20–60mm DoF covers ear canal to throat; 88° wide angle reduces movement |
Industrial pipeline crawler robot | DVP direct to industrial PC, extended cable | Steel sheet reinforcement resists bending; digital interface resists noise |
Automotive engine endoscope | Handheld host + interchangeable probe | High mating cycle life; gold finger ensures reliable contact |
Precision electronics repair microscope | Fixed mount, USB bridge | 20mm close focus clearly shows solder joints; low distortion aids judgment |
The core value of the BF2013 DVP interface wireless WiFi endoscope module lies in integrating the high-reliability connection, scenario-optimized optics, and flexible expansion required for an industrial endoscope camera module. When selecting, prioritize three questions:
Connection method: Do you need frequent mating or modular design? If yes, the 23-pin gold finger is the optimal choice.
Transmission distance: Exceeds 2 meters? Consider the WiFi wireless solution; for short distances with real-time needs, wired DVP direct connection is better.
Operating environment: Vibration or oil present? The steel+PI reinforcement provides extra protection.
As a manufacturer with over 30 years of optical imaging experience, SincereFirst not only supplies standard modules based on the BF2013 Sensor, but also customizes FPC length, gold finger gold thickness, and WiFi adapter solutions according to your device structure. We recommend obtaining engineering samples before mass production and conducting mating cycle, image stability, and wireless latency tests in real working conditions to ensure your selection is both scientifically sound and forward-looking.
